RAPIDRF-36SL039
アクティブ -

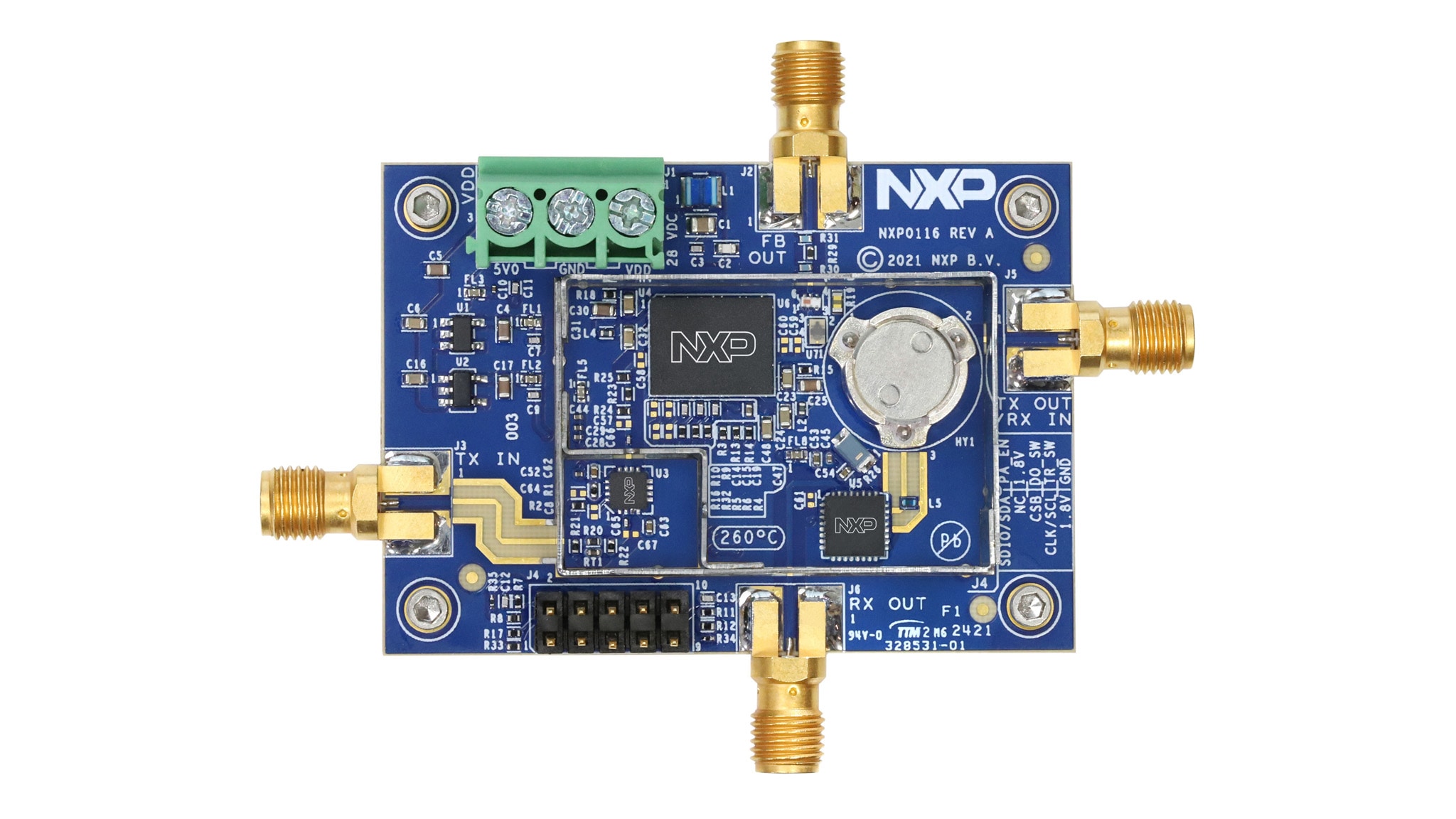

RapidRF-36SL039 3400-3800 MHz RF Front-End Board.

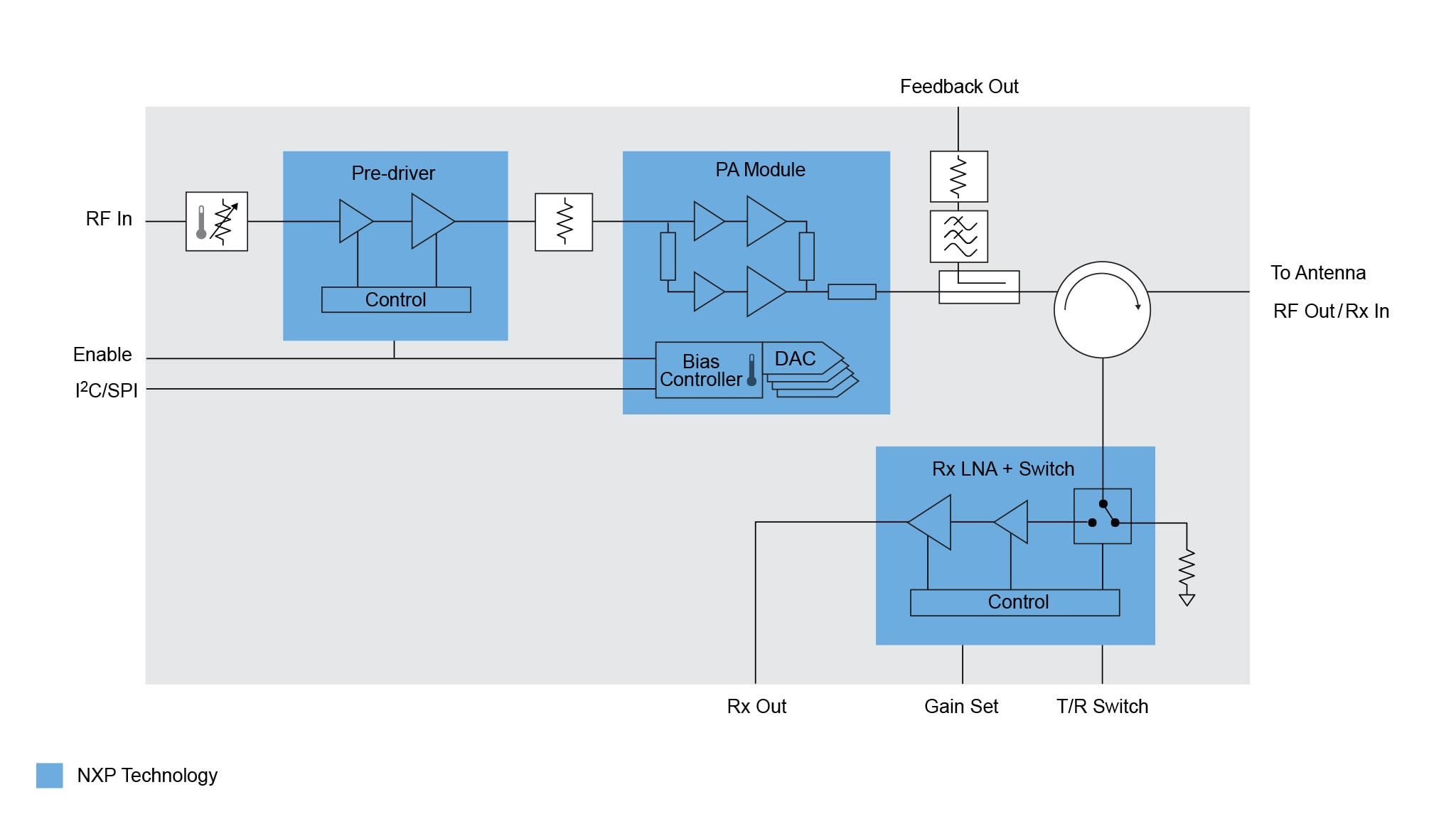

NXPのRapidRF Smart LDMOSフロントエンド・デザインは、高効率RFパワー・アンプ、リニア・プリドライバ、T/Rスイッチ付きRx LNA、およびサーキュレータとの統合をコンパクトなフットプリントで実現しています。また、パワー・アンプ・パッケージにバイアス・コントローラと温度センサが含まれるようになりました。これらのデザインには、DPDフィードバック用のカプラが組み込まれ、デジタル・プリディストーションで使用されます。
RapidRFリファレンス・ボードは、アンテナで2.5~8ワット (34~39 dBm) の平均送信電力を必要とする5G無線ユニットに最適です。複数の周波数帯域に共通のPCBレイアウトを使用することで、設計と製造の両方が簡素化され、市場投入までの時間が短縮されます。
周波数 (MHz) |
平均電力 (dBm) |
送信 利得 (dB) |
送信 効率 (%) |
Rx利得 (dB) |
Rx NF (dB) |
Rx OIP3 (dBm) |
RapidRFフロントエンド・デザイン・ボードの部品番号 |
---|---|---|---|---|---|---|---|
3400~3800 MHz | 39 | 54 | 34 | 301、362 | 1.6 | 23 | RAPIDRF-36SL039 |
3700~3980 MHz | 39 | 53 | 30 | 301、362 | 1.5 | 23 | RAPIDRF-39SL039 |
1. 低利得モード
2. 高利得モード
RapidRF-36SL039 3400-3800 MHz RF Front-End Board.
