Differential, Gauge and Absolute Compensated Pressure Sensor (0 to 100 kPa)
The MPX2100 pressure sensor series offers silicon piezoresistive solutions for a diverse array of medical and industrial applications.
- Provides a highly accurate and linear voltage output directly proportional to the applied pressure
- Includes a single monolithic silicon diaphragm with the strain gauge and a thin-film resistor network integrated on-chip
- Delivers a laser-trimmed chip for precise span, offset calibration and temperature compensation
製品詳細
Features
Key Features
- Temperature compensated over 0 °C to +85 °C

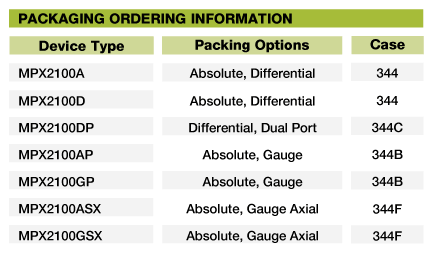

- Available in easy-to-use tape-in-reel and chip carrier package options
- Ratiometric to supply voltage
- Available in absolute, differential and gauge configurations
- ±0.25 percent linearity (MPX2100D)
