Differential, Gauge and Absolute Compensated Pressure Sensor (0 to 100 kPa)
The MPX2102/MPXV2102G/MPXM2102 series of pressure sensors provide silicon piezoresistive devices for medical and industrial applications.
- Offers a highly accurate and linear voltage output directly proportional to the applied pressure
- Includes a single monolithic silicon diaphragm with the strain gauge and a thin-film resistor network integrated on-chip
- Delivers a laser-trimmed chip for precise span, offset calibration and temperature compensation
製品詳細
Features
Key Features
- Temperature compensated over 0 °C to +85 °C
- Easy-to-use chip carrier package options
- Available in absolute, differential and gauge configurations
- Ratiometric to supply voltage

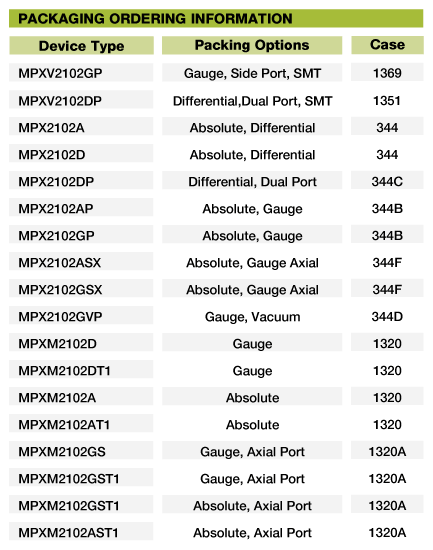

部品番号： MPX2102A, MPX2102AP, MPX2102ASX, MPX2102DP, MPXM2102A, MPXM2102AS, MPXM2102D, MPXM2102GS, MPXV2102GP.
