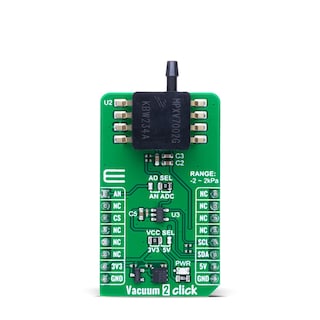

Vacuum Pressure Sensor (-2 to 2 kPa)

MPXV7002 アクティブ

The NXP® MPXV7002 piezoresistive transducer in a small outline package is a state-of-the-art monolithic silicon pressure sensor designed for a wide range of applications, but particularly those employing a microcontroller or microprocessor with A/D inputs.

  • Combines advanced micromachining techniques, thin-film metallization, and bipolar processing to provide an accurate, high level analog output signal that is proportional to the applied pressure
  • Designed to measure positive and negative pressure with an offset specifically at 2.5V instead of the conventional 0V
  • Allows pressure measure up to 7kPa through each port for pressure sensing but also for vacuum sensing

製品詳細

Features

Key Features

  • 5.0% maximum error over 0° °C to 85 °C
  • Ideally suited for microprocessor or microcontroller-based systems
  • Thermoplastic (PPS) surface mount package
  • Temperature compensated over 10 °C to 60 °C
  • Silicon shear stress strain gauge
  • Available in differential and gauge configurations
  • Ideal for automotive and non-automotive applications

購入/パラメータ

4 結果

マッチしていない 0 NRND

パーツ

説明を表示

注文

コンピュータ支援設計 モデル

状況

標準価格

Accuracy (% Error) (Max) (%)

Ambient Operating Temperature (Min to Max) (℃)

統合化のレベル

出力タイプ

Pressure Range Min-max (MIN-MAX) (kPa)

Pressure Rating (MAX) (psi)

電源電圧 [最小] (V)

電源電圧 [最大] (V)

Supply Voltage [typ] (V)

MPXV7002DP
データ・シート

アクティブ

1K @ US$9.93

2.5

10 to 60

integrated

analog

-2 - 2

0

4.75

5.25

5

MPXV7002GC6
データ・シート

置き換え部品: MPXV7002DP

アクティブ

1K @ US$11.60

2.5

10 to 60

integrated

analog

-2 - 2

0

4.75

5.25

5

MPXV7002GC6U
データ・シート

アクティブ

1K @ US$11.60

2.5

10 to 60

integrated

analog

-2 - 2

0

4.75

5.25

5

MPXV7002GP
データ・シート

アクティブ

1K @ US$11.42

2.5

10 to 60

integrated

analog

-2 - 2

0

4.75

5.25

5
