Touch-Sensing Platform Evaluation Board

EVBCRTOUCH アクティブ

画像にカーソルを合わせると拡大表示されます。

Ready Play® Solutions integrate functionality to different applications, allowing customers to add features while reducing development cost, simplifying design cycles and enabling scalability in applications and systems.

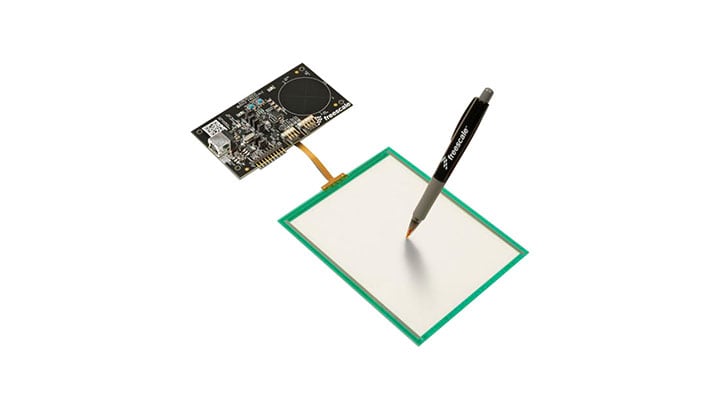

EVBCRTOUCH is a low-cost development board that allows quick connection between any standard 4 and 5 wire resistive screen. The board features four capacitive electrodes which enables a quick ramp up. The board also provides a USB-to-Serial bridge to allow a connection to any host processor or PC via USB.

Features

  • Standard X,Y resistive touchscreen detection with optional calibration
  • Pressure detection on 4 and 5 wires
  • 16 samples FIFO with watermark
  • Wake by single touch, double touch, gestures, or capacitive electrodes activity
  • Event and touch indicators for main host processor

Gesture detection

  • Slide
  • Two touch pinch and expand
  • Two touches rotate

capacitive electrodes independent from touchscreen

  • Keypad
  • Rotary
  • Slider

Connectivity

    I²C and UART communication

  • Two selectable I²C target addresses
  • UART baud rate auto detection mechanism

Power Management

  • Low power consumption

Support

  • Linux® and Android® integration example code available

購入オプション

EVBCRTOUCH-Image

クリックして展開

  • EVBCRTOUCH
    アクティブ

  • DevCRTouch Play Sol.

    • EVBCRTOUCH Board
      • 4-wire connector
      • 5-wire connector
      • 4 capacitive electrodes
    • Resistive screen
    • USB cable
    • Quick Start Guide
  • の数量に対して 1
代理店からの注文
