Proximity Sensing Software Evaluation Add-on Kits for MCUs

TSSELECTRODEEVM アクティブ

画像にカーソルを合わせると拡大表示されます。

The Touch Sensing Software (TSS) transforms NXP 8-bit S08, and 32-bit ColdFire® V1 MCUs into touch sensors, giving designers the flexibility to select from more than 650 NXP MCUs to add cost-effective touch sensing functionality to their human-machine interface (HMI) designs.

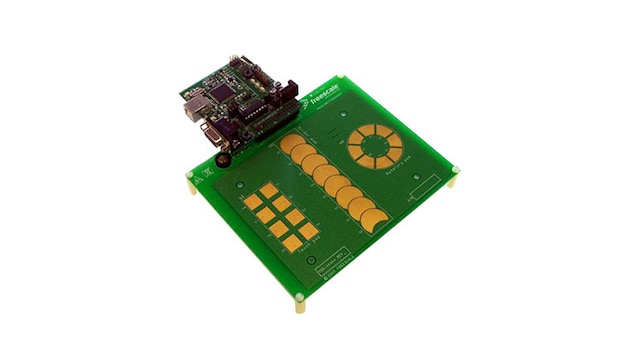

The NXP TSSELECTRODEEVM is a full featured development kit containing a plug-in touch sensor module allowing the evaluation of rotary, touch pad and slider touch sensing technologies, using the Touch Sensing Software, to get your design up and running quickly and easily.

ソフトウェア詳細

Features

  • Fits a standard header (MCU port)
  • Versatile touchpad designs
    • Rotary, Touch, Slider
    • Plug-in touchpad modules
  • PC-Based GUI
  • Benefits
    • Touch added to one chip solution to reduce the overall system cost and size
    • Enables all 8-bit S08 and 32-bit ColdFire® V1 MCUs as touch sensors
    • Free license software with low cost development tools
    • Enhances reliability by eliminating mechanical wear and tear
    • Reduces time to market and development costs
    • Increases lifetime of products
