FS6522, System Basis Chip, DCDC 2.2 A Vcore FS1B LDT CAN

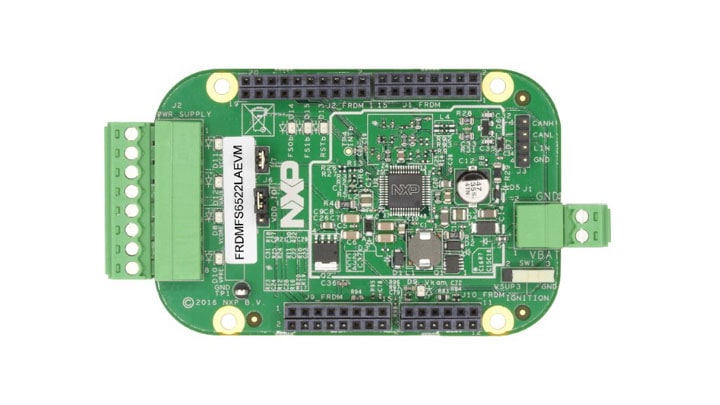

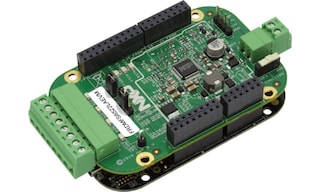

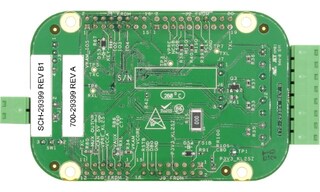

FRDMFS6522LAEVM アクティブ

画像にカーソルを合わせると拡大表示されます。

FRDMFS6522LAEVM evaluation module demonstrates the functionality of MC33FS6522 supports CAN FD and LIN with Vcore SMPS regulator up to 1.5 A. These Safety SBCs target ISO 26262 automotive functional safety standard.

NXP's analog product development boards provide an easy-to-use platform for evaluating NXP® products. The boards support a range of analog, mixed-signal and power solutions. They incorporate monolithic ICs and system-in-package devices that use proven high-volume SMARTMOS® technology. NXP products offer longer battery life, a smaller form factor, reduced component counts, lower cost and improved performance in powering state of the art systems.

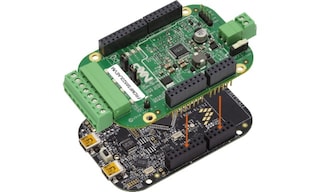

The tool can be used in a standalone mode. Control is done via a delivered KL25Z Freedom board plugged on it and accessible thanks to USB.

対応製品

パワーマネージメント

セーフティSBC

  • FS6500: CAN FDトランシーバを備えたグレード1およびグレード0のセーフティ電源システム・ベーシス・チップ

プロセッサ＆マイクロコントローラ

KLシリーズ Arm Cortex-M0+

  • KL2x: Kinetis® KL2x-72/96 MHz, USB Ultra-Low-Power Microcontrollers (MCUs) based on Arm® Cortex®-M0+ Core

Features

General Specifications

  • FS0b output pins
  • KL25Z Freedom delivered with the EVM

Connectivity

  • CAN FD and LIN connectors
  • For easy connection with USB control

Power Management

  • VCORE bridge resistor configured for 1.3 V
  • VCCA configured to 3.3 V (5 V possible) with external PNP
  • VAUX configured to 5 V (3.3 V possible)
  • Vpre Regulator in Buck or Boost mode

Support

  • SPI command is easily controlled by the FlexGUI downloadable here

購入オプション

FRDMFS6522LAEVM-Image

クリックして展開

  • FRDMFS6522LAEVM
    アクティブ

  • Freedom Expansion kit, FS6522 system Basis Chip with KL25Z.

    • FRDMFS6522LAEVM
    • FRDM-KL25Z
    • Cable, Mini USB A to B
    • 1 x 2 pins connector
    • 1 x 8 pins connector
  • $125.35 USD
  • の数量に対して 1
    • 在庫: 在庫あり
    • 在庫: 5
    • 配送: 通常 1～2営業日以内に配送
カートに入れる
