KITFS6522LAEEVM
アクティブ -

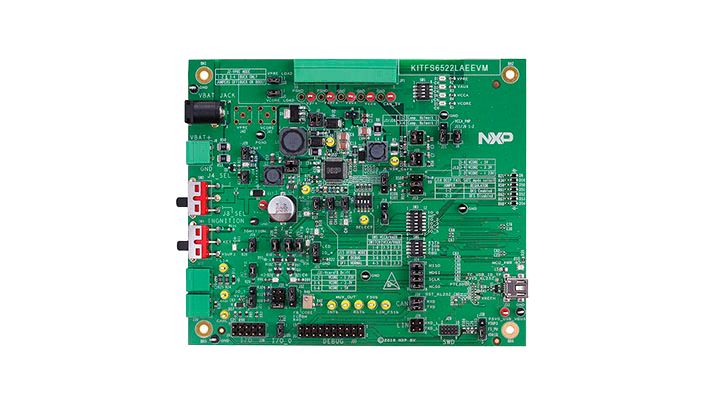

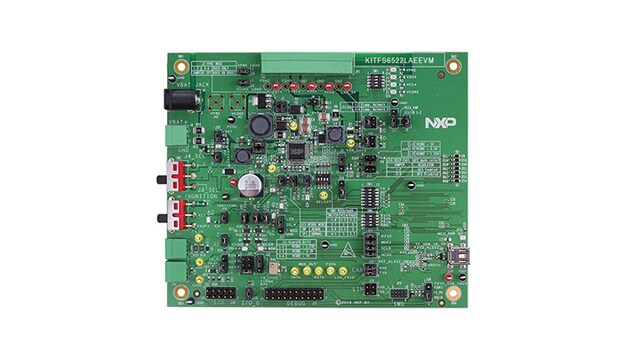

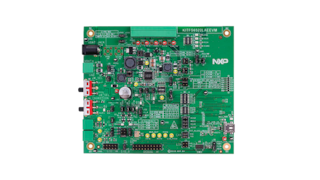

Evaluation kit - FS6522, System Basis Chip, DCDC 2.2 A Vcore LDT, CAN, LIN.
- Evaluation board
- Cable, Mini USB A to B
- 3x 10 pos Connector
- 1x 2 pos Connector
FS6522, System Basis Chip, DCDC 2.2 A Vcore LDT, CAN, LIN
KITFS6522LAEEVM evaluation board demonstrates the functionality of MC33FS6522 supports CAN FD and LIN with Vcore SMPS regulator up to 2.2 A.These Safety SBCs target ISO 26262 automotive functional safety standard.
NXP’s analog product development boards provide an easy-to-use platform for evaluating NXP products. The boards support a range of analog, mixed-signal and power solutions. They incorporate monolithic ICs and system-in-package devices that use proven high-volume SMARTMOS technology. NXP products offer longer battery life, a smaller form factor, reduced component counts, lower cost and improved performance in powering state of the art systems.
The tool can be used in a standalone mode and controlled with an embedded USB interface. SPI command is easily controlled by the FlexGUI downloadable here.
製品詳細
Features
Microcontroller
- KL25Z MCU installed on board for easy connection to host computer on USB link with monitoring features
Connectivity
- CAN FD and LIN bus (LIN exclusive with FS1B)
- FS0B and FS1B output pins (FS1B exclusive with LIN)
- Connectors allowing easy access to digital signals
Power Management
- VCORE configuration: 1.23 V, 3.3 V, 5.0 V
- VCCA, VAUX configuration - 3.3 V or 5.0 V, with internal PMOS or external PNP
- Vpre regulator with a Buck or Boost setting
購入オプション
設計・リソース
デザイン・ファイル
クイック・リファレンス
設計・ファイルの種類.
1 設計・ファイル
-
プリント基板と回路図
KITFS6522LAEEVM - Printed Circuit Board bill of materials and design files
