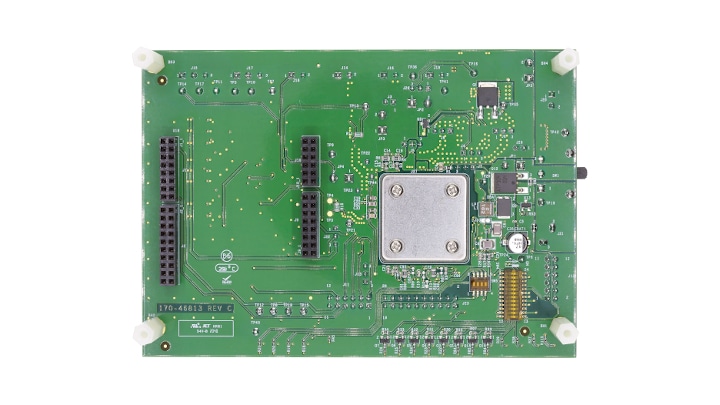

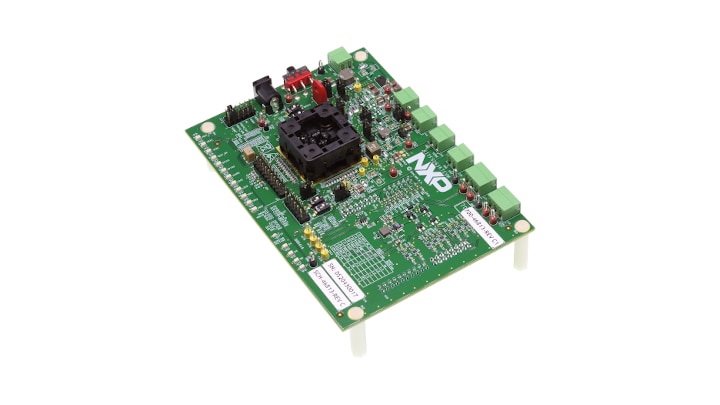

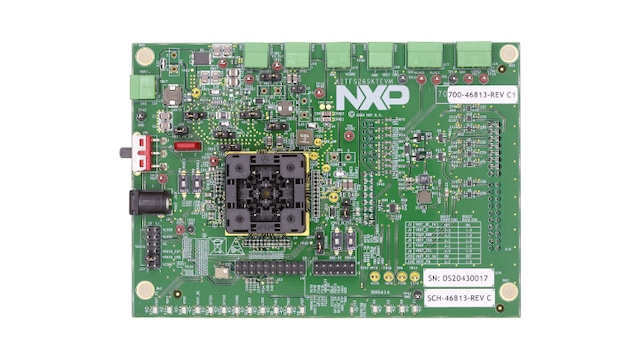

FS26 Safety SBC Programming Socket Board

KITFS26SKTEVM アクティブ

画像にカーソルを合わせると拡大表示されます。

KITFS26SKTEVM provides easy customer configuration of the FS26 device family thanks to a LQFP48 socket. The KL25Z Freedom connected to the board, combined with the FS26 NXP GUI software allows to fully configure and control FS26 SBC. It's targeting 12 V automotive applications.

Devices can be easily placed on socket and allow OTP emulation, functional testing or program OTP(One Time Programming) fuses when ready.

対応製品

パワーマネージメント

セーフティSBC

  • FS26: 低消費電力セーフティ・システムベーシス・チップ、ASIL Dシステム対応

プロセッサ＆マイクロコントローラ

S32K 車載汎用MCU

  • S32K3: S32K3 車載向け汎用マイクロコントローラ

Features

Connectivity

  • FRDM-KL25Z MCU plugged allows USB connection for easy connection to software GUI (access to SPI bus, IOs, Safety outputs, Debug, AMUX, regulators) USB connection for register access, OTPemulation and fuse

Power Management

  • VBAT power supply connectors (Jack and Phoenix)
  • VPRE output 3.3 V to 6.5 V, up to 1.5 A
  • VBOOST in Independent mode or in Front-end topology to support battery cranking profiles
  • VCORE output 0.8 V to 3.3 V, up to 1.6 A
  • LDO1 and LDO2, from 3.3 V or 5.0 V, up to 400 mA
  • VTRK1 and VTRK2, from 3.3 V or 5.0 V, up to 150 mA
  • VREF accuracy regulator for external ADC reference

General Specifications

  • FS0B, FS1b external safety pins

Support

  • Debug mode access
  • Manual or Automated OTP fuse programming
  • Connectors allowing easy access to digital signals
  • Allows easy configuration of front-end and back-end power topologies

Components

  • LEDs that indicate signal or regulator status
  • Analog variable resistor to test external VMON
  • LQF48 non-soldered socket to allow functional testing and programming of multiple devices. Due to the socket, all output current should be limited to 1 A maximum

購入オプション

KITFS26SKTEVM-Image

クリックして展開

  • KITFS26SKTEVM
    アクティブ

  • FS26 Safety SBC Programming Socket Board.

  • Kit Contains:

    • KITFS26SKTEVM Board
    • FRDM-KL25Z
    • Power Supply Mating Connectors
    • USB Mini Cable Type A Male / Type B Male
  • $507.44 USD
  • の数量に対して 1
    • 在庫: 保留中の在庫
カートに入れる
代理店からの注文
N true 0 TSPKITFS26SKTEVMja 3 ドキュメント User Manual t1009 2 ユーザ・ガイド User Guide t792 1 ja ja 1 1 English This page will help guide you through the process of learning about your KITFS26SKTEVM evaluation board. 1616214040341712455841 Y 1616214040341712455841 GS-KITFS26SKTEVM GS-KITFS26SKTEVM /document/guide/getting-started-with-the-kitfs26sktevm-evaluation-board:GS-KITFS26SKTEVM HTML 0 2021-03-19 GS-KITFS26SKTEVM TSP User Guide 132339537837198660 2025-01-14 en Mar 19, 2021 User Guide t792 ユーザ・ガイド User Guide Y Getting Started with the KITFS26SKTEVM Evaluation Board false ja ドキュメント User Manual 2 2 3 English This user guide describes the use of the NXP GUI for Automotive PMIC family in development using the FS2600 Automotive PMIC family, referred to hereafter as FS26. This document is intended for engineers involved in evaluation, design, implementation and validation using the FS26 Fail-safe system basis chip with multiple SMPS and LDO. 1656956102914713576302 TSP 3.2 MB Registration without Disclaimer None documents Extended 1656956102914713576302 /secured/assets/documents/en/user-manual/UM11812.pdf 3189427 /secured/assets/documents/en/user-manual/UM11812.pdf UM11812 documents Y N 2022-07-04 UM11812, NXP GUI for FS26 Automotive PMIC Family - User Manual /webapp/Download?colCode=UM11812&lang_cd=ja /secured/assets/documents/en/user-manual/UM11812.pdf User Manual N 309919593431037931 2024-08-09 pdf Y en Jul 24, 2024 309919593431037931 User Manual Y N UM11812, NXP GUI for FS26 Automotive PMIC Family - User Manual 3 4.0 English This document is the user guide for the KITFS26SKTEVM programming board. This document is intended for engineers involved in evaluation, design, implementation, and validation using the FS26 Fail-safe system basis chip with multiple SMPS and LDO. 1616207022032726463130 TSP 4.4 MB Registration without Disclaimer None documents Extended 1616207022032726463130 /secured/assets/documents/en/user-guide/UM11504.pdf 4401277 /secured/assets/documents/en/user-guide/UM11504.pdf UM11504 documents Y N 2021-03-19 KITFS26SKTEVM Evaluation Board User Manual /webapp/Download?colCode=UM11504&lang_cd=ja /secured/assets/documents/en/user-guide/UM11504.pdf User Manual N 309919593431037931 2024-05-22 pdf Y en May 21, 2024 309919593431037931 User Manual Y N KITFS26SKTEVM Evaluation Board User Manual false 0 KITFS26SKTEVM downloads ja true 0 Y TSP ドキュメント 2 /secured/assets/documents/en/user-manual/UM11812.pdf 2022-07-04 1656956102914713576302 TSP 2 Jul 24, 2024 User Manual This user guide describes the use of the NXP GUI for Automotive PMIC family in development using the FS2600 Automotive PMIC family, referred to hereafter as FS26. This document is intended for engineers involved in evaluation, design, implementation and validation using the FS26 Fail-safe system basis chip with multiple SMPS and LDO. Registration without Disclaimer /secured/assets/documents/en/user-manual/UM11812.pdf English documents 3189427 None 309919593431037931 2024-08-09 Y /webapp/Download?colCode=UM11812&lang_cd=ja UM11812, NXP GUI for FS26 Automotive PMIC Family - User Manual /secured/assets/documents/en/user-manual/UM11812.pdf documents 309919593431037931 User Manual N en Extended Y pdf 3 Y N UM11812, NXP GUI for FS26 Automotive PMIC Family - User Manual 3.2 MB UM11812 N 1656956102914713576302 /secured/assets/documents/en/user-guide/UM11504.pdf 2021-03-19 1616207022032726463130 TSP 3 May 21, 2024 User Manual This document is the user guide for the KITFS26SKTEVM programming board. This document is intended for engineers involved in evaluation, design, implementation, and validation using the FS26 Fail-safe system basis chip with multiple SMPS and LDO. Registration without Disclaimer /secured/assets/documents/en/user-guide/UM11504.pdf English documents 4401277 None 309919593431037931 2024-05-22 Y /webapp/Download?colCode=UM11504&lang_cd=ja KITFS26SKTEVM Evaluation Board User Manual /secured/assets/documents/en/user-guide/UM11504.pdf documents 309919593431037931 User Manual N en Extended Y pdf 4.0 Y N KITFS26SKTEVM Evaluation Board User Manual 4.4 MB UM11504 N 1616207022032726463130 ユーザ・ガイド 1 2021-03-19 1616214040341712455841 1 Mar 19, 2021 User Guide ユーザ・ガイド This page will help guide you through the process of learning about your KITFS26SKTEVM evaluation board. Y GS-KITFS26SKTEVM English 0 User Guide 2025-01-14 /document/guide/getting-started-with-the-kitfs26sktevm-evaluation-board:GS-KITFS26SKTEVM Getting Started with the KITFS26SKTEVM Evaluation Board GS-KITFS26SKTEVM TSP 132339537837198660 User Guide en Y t792 HTML GS-KITFS26SKTEVM 1616214040341712455841 true Y Tools
