NXP GUI for Automotive PMIC Families

PMIC-GUI-SW

画像にカーソルを合わせると拡大表示されます。

Software GUI for NXP's Automotive PMIC products. This application enables users to evaluate the functionality, configure the OTP settings, program the OTP and calculate the thermal efficiency for specific use cases.

This GUI supports FS23, FS24, FS26, FS5600, FS86, PF5020, PF5023, PF5024, PF5030, PF5200, PF53, PF7100, PF8100, PF8101, PF8121, PF8201, PF8200, and VR5510 PMICs. For more product software, please visit the Analog Expert SW and Tools page.

ソフトウェア詳細

Features

Application Workspace

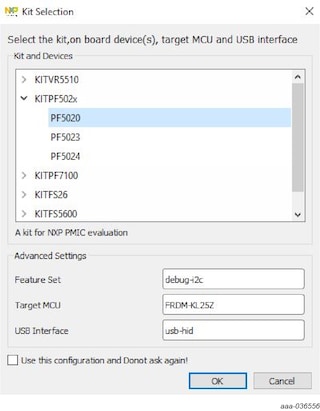

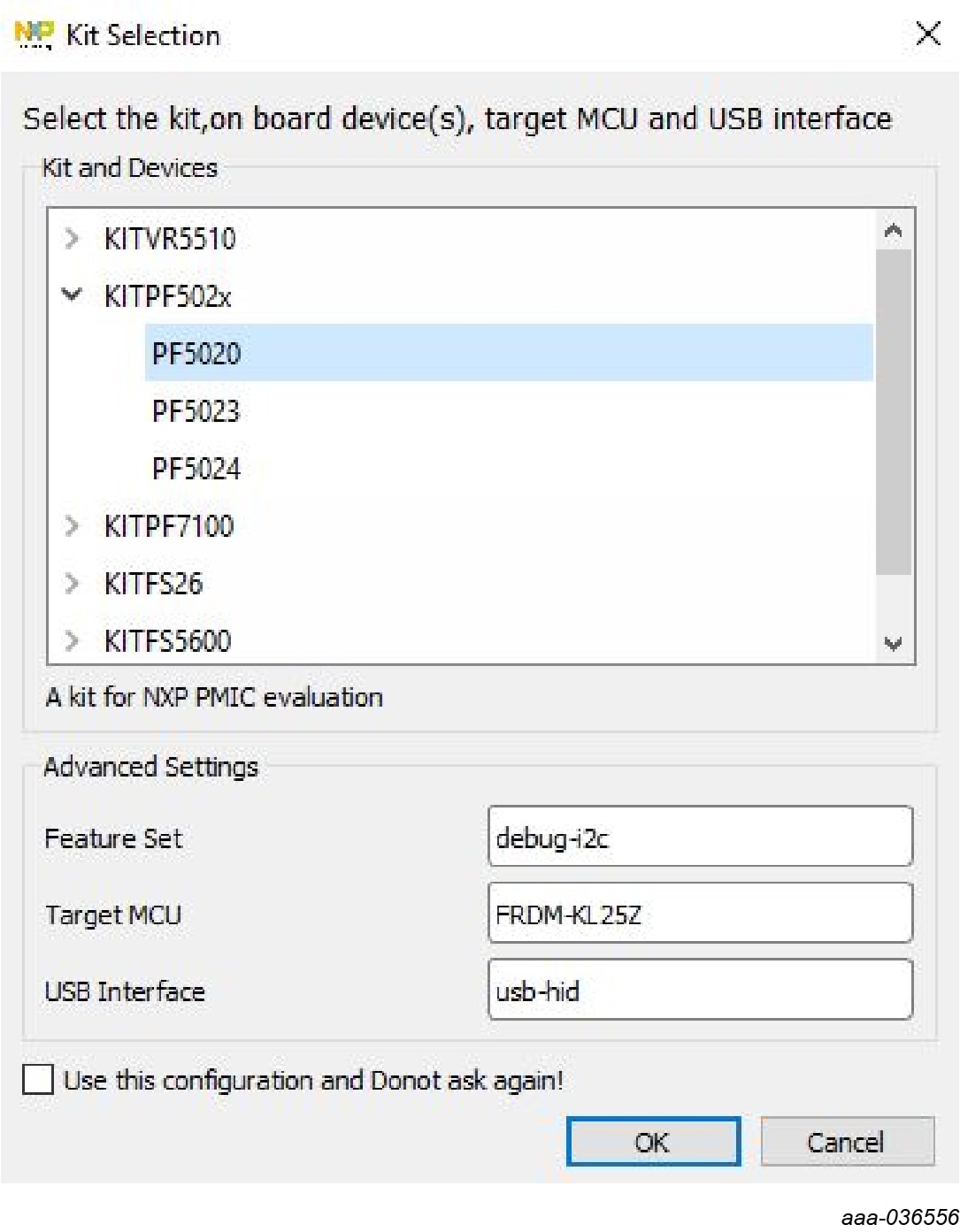

  • Supports multiple PMIC product families

Integrated Tools

  • Integrated software with multiple applications
  • I²C communication interface for device access
  • OTP tool to configure the settings needed for a specific application
  • OTP programming tool to program the OTP fuses using the socket programming board
  • Power efficiency calculator for estimating the losses and calculating total system efficiency
  • Flexible I/O control to emulate processor interface

Additional Features

  • Session logs for communication history
  • Device panel for quick access to device modes, I²C-bus address
  • Script editor for sequences of actions on pins and registers
  • OTP mirror editor for modifying and/or reading the OTP mirror content in the device

Supported Interface MCUs

  • KL25Z, K82F

Requirements

  • OS: Windows 7 or Windows 10
