KITFS86SKTFRDMEM
アクティブ -
FS86 Safety SBC Programming Socket Board.
- KITFS86SKTFRDMEM board
- FRDM-KL25Z
- Power supply mating connectors
- USB mini cable Type A male / Type B male
コンパクトリスト
- アナログ・ツールボックス
- KITFS86SKTFRDMEM: FS86 Safety SBC Programming Socket Board

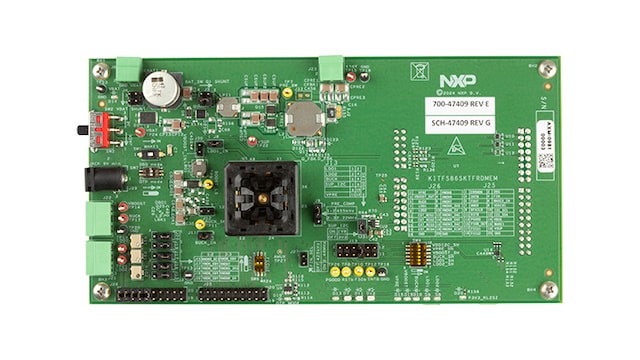

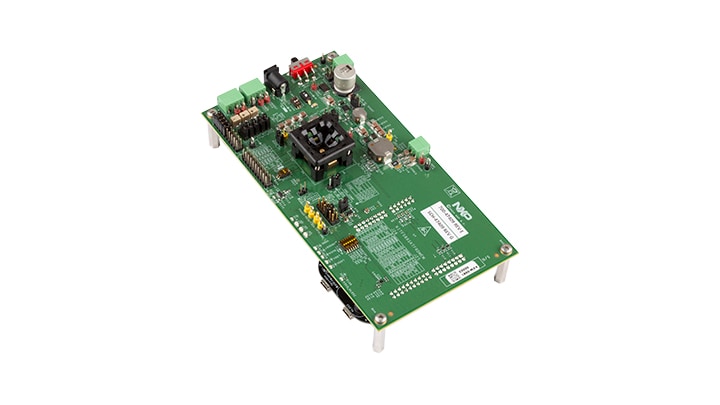

FS86 Safety SBC Programming Socket Board
The KITFS86SKTFRDMEM provides easy customer configuration of the FS86 device family, thanks to a QFN48 socket and flexibility to play with all the features of the device and make measurements on the main part of the application. All regulators are accessible through connectors. Nonuser signals, like DC/ DC switcher node, are mapped on test points. It targets 12 V automotive and 24 V transportation (truck and bus) applications.
The KL25Z Freedom connected to the board, combined with the FS86 NXP GUI software, allows to fully configure and control FS86 SBC. The board can be used in a standalone mode and controlled with an USB interface.
Devices can be easily placed on socket to OTP emulation, functional testing or program OTP (one time programming) fuses when ready. In addition to the OTP programming, the customer can test all features (with power delivery limitation due to the socket). No extra tools or board are needed for FS86 OTP programming.
製品詳細
対応製品
パワーマネージメント
セーフティSBC
- FS86: ドメイン・コントローラ用セーフティ・システムベーシス・チップ、ASIL BおよびDに適合
Features
Connectivity
- FRDM-KL25Z MCU plugged allows USB connection for easy connection to software GUI (access to I²C bus, IOs, Safety outputs, Debug, AMUX, regulators)
- USB connection for register access, OTP emulation and fuse
- Socket to fit and remove device easily
Power Management
- VBAT power supply connectors (Jack and Phoenix, 35 V max)
- VPRE output capability up to 10 A (external MOSFET)
- VBOOST 5.0 V or 6.0 V, up to 800 mA
- BUCK up to 2.5 A DC
- LDO1, from 1.5 V to 5.0 V, up to 400 mA, with load switch capability
- LDO2, from 1.1 V to 5.0 V, up to 400 mA
- Ignition key switch
General Specifications
- FS0B external safety pin
Support
- Debug mode access
- Manual or automated OTP fuse programming
- Connectors allowing easy access to digital signals
Components
- LEDs indicate signal and regulator status
- Analog variable resistor to test external VMON
