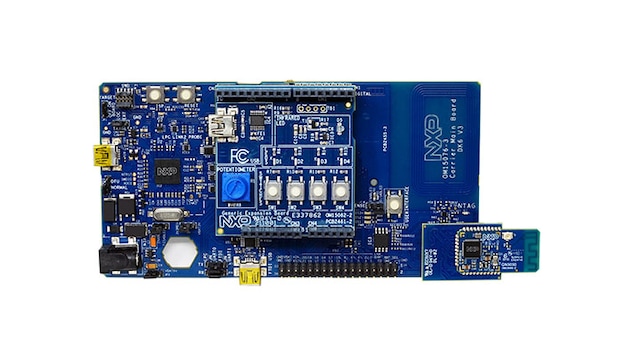

Development platform for QN9090/30(T) wireless MCUs

QN9090-DK006 アクティブ

画像にカーソルを合わせると拡大表示されます。

The QN9090 development platform, the QN9090DK, comes with an integrated programmer and debugger along with suite of example applications showcasing standard GATT profiles in a complete software development kit (SDK). It is designed to make it as easy as possible to get started with your project based on NXP® QN9090/30 (T) Bluetooth Low Energy SOC with optional NFC technology.

ブロック図

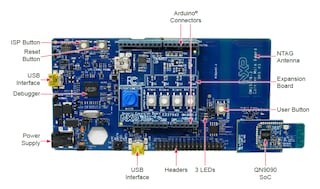

QN9090-DK006 9-board components

QN9090-DK006 9-board components
図を取得する PDF

対応製品

ワイヤレス・コネクティビティ

Bluetooth Low Energy

  • QN9090-30: QN9090/30: Bluetooth Low-Energy MCU with Arm®Cortex®-M4 CPU, Energy Efficiency, Analog and Digital Peripherals and NFC Tag Option

Features

Wireless MCU

  • Module site for QN9090 (T) Bluetooth LE 5.0 MCU with NFC NTAG

NFC

  • PCB antenna for NFC Tag

Debug

  • On-board, high-speed USB based, Link2 debug probe with ARM’s CMSIS-DAP and SEGGER J-Link protocol options.

Extensibility

  • Expansion options based on Arduino R3, plus additional expansion port pins

User Interace

  • Power, Reset, ISP and UART Tx/Rx status LEDs.
  • Target Reset, and User buttons.

Power Supply

  • On-board 3.3V from USB port, 4xAAA batteries, 2xAAA batteries (low-power mode) or external power supply options.
  • Built-in power consumption measurement

External Memory

  • 8Mb Macronix MX25R QSPI flash.

購入オプション

QN9090-DK006-Image

クリックして展開

  • QN9090-DK006
    アクティブ

  • Development platform for QN9090/30(T) wireless MCUs.

    • 1 mother board
    • 1 Generic daughter card
    • 1 module with mezzanine
  • $132.25 USD
  • の数量に対して 1
    • 在庫: 在庫あり
    • 在庫: 2
    • 配送: 通常 1～2営業日以内に配送
カートに入れる
代理店からの注文
QN9090-001-T10-Image

クリックして展開

  • QN9090-001-T10
    アクティブ

  • Development platform for QN9090/30(T) wireless MCUs.

    • 1 module with mezzanine
  • $33.35 USD
  • の数量に対して 1
    • 在庫: 在庫あり
    • 在庫: 3
    • 配送: 通常 1～2営業日以内に配送
カートに入れる
代理店からの注文
