QN9090/30: Bluetooth Low-Energy MCU with Arm®Cortex®-M4 CPU, Energy Efficiency, Analog and Digital Peripherals and NFC Tag Option

QN9090-30 アクティブ

画像にカーソルを合わせると拡大表示されます。

The QN9090 and QN9030 are the latest microcontrollers in the QN series of Bluetooth low energy devices that achieve ultra-low-power consumption and integrate an Arm®Cortex®-M4 CPU with a comprehensive mix of analog and digital peripherals. With support for up to 640KB onboard flash and 152 KB SRAM, the memory integration provides room and flexibility for complex applications and safe Over-the-Air (OTA) updates. QN series devices have a rich set of MCU peripherals including multiple serial communication interfaces. Within the QN series the QN9090T and QN9030T integrate NFC NTAG to support use cases such as out-of-band pairing. By tapping a device based on the QN9090T with an NFC reader device, such as a smart phone or tablet, a Bluetooth LE connection can be established quickly simplifying the pairing process.

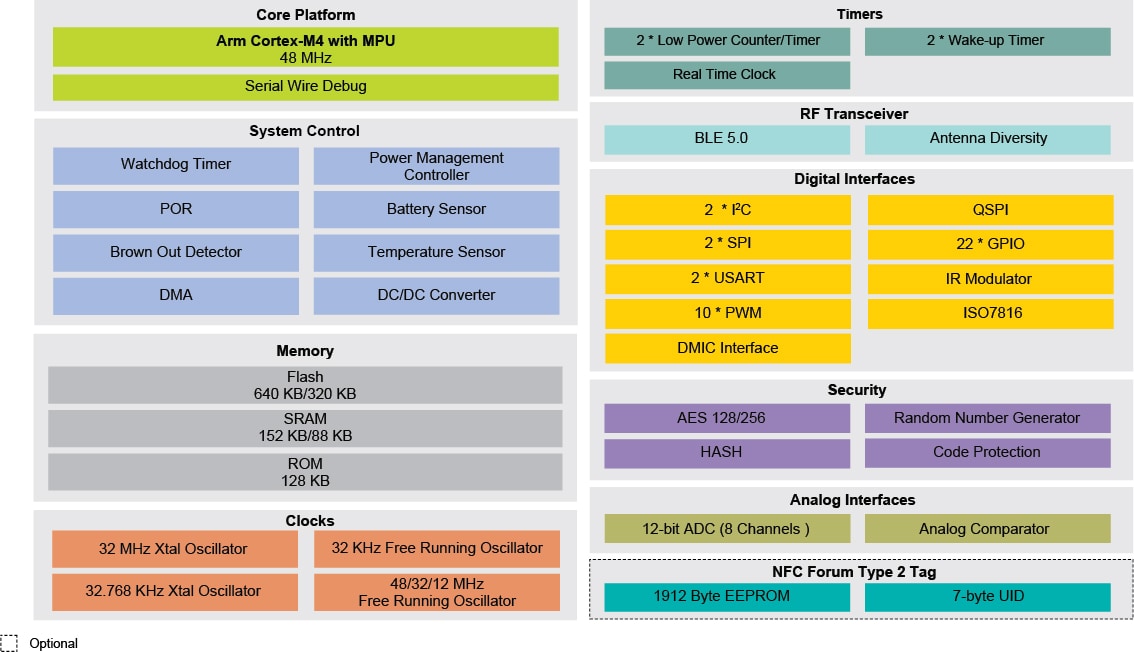

ブロック図

QN9090/30 Block Diagram

QN9090/30 Block Diagram
図を取得する PDF

Features

CPU and Memory

  • Up to 48MHz Cortex-M4
  • Up to 640 kB flash, up to 152 kB RAM, 128 kB ROM
  • NFC NTAG Option with EEPROM
  • Quad-SPI for execute in place or data storage in NVM

RF performance/power consumption

  • -97 dBm RX sensitivity
  • up to 11dBm TX power
  • RX 4.3mA, DC/DC on at 3V
  • TX 7.4mA @ 0dBm, 20.5mA @ 10dBm
  • BLE 5.0 with 2Mbps and up to 8 simultaneous connections

Security

  • AES256 with hardware protected key
  • Hash engine (SHA256)
  • Code readout protection

Digital and Analog Interfaces

  • UART/SPI/I2C up to 2
  • ISO7816 Interface for Secure Access Module
  • 8 ch 12-bit ADC,
  • 1 Analog comparator
  • Digital Microphone Interface and Audio Event Detection

Clocks and timers

  • 32 MHz and 32.768 kHz crystals
  • Low and High Frequency Internal Clock sources
  • 4 x general purpose timer
  • 32K sleep timer
  • Watchdog timer
  • RTC with calibration

Operating Conditions

  • Operating voltage: 1.9 to 3.6V
  • Junction Temperature range: -40 to 125 ºC

もっと見る

購入/パラメータ

‌
‌
‌
‌
‌
‌
‌
‌
‌
‌
‌
‌
‌
‌
‌
‌
‌

‌
‌
‌
‌
‌
‌
‌
‌

‌
‌
‌
‌
‌
‌
‌
‌

‌
‌
‌
‌
‌
‌
‌
‌

‌
‌
‌
‌
‌
‌
‌
‌

‌
‌
‌
‌
‌
‌
‌
‌

‌
‌
‌
‌
‌
‌
‌
‌

‌
‌
‌
‌
‌
‌
‌
‌

‌
‌
‌
‌
‌
‌
‌
‌

‌
‌
‌
‌
‌
‌
‌
‌

‌
‌
‌
‌
‌
‌
N true 0 PSPQN9090-30ja 19 アプリケーション・ノート Application Note t789 9 アプリケーション・ノート・ソフトウェア Application Note Software t783 2 エラッタ Errata t522 1 データ・シート Data Sheet t520 1 ファクト・シート Fact Sheet t523 1 ユーザ・ガイド User Guide t792 5 ja ja ja データ・シート Data Sheet 1 1 1.2 English The product has 640 KB embedded Flash, 152 KB RAM memory. The embedded flash can support Over The Air (OTA) code download of applications. The devices include 10-channel PWM, two timers, one RTC/alarm timer, a Windowed Watchdog Timer (WWDT), two USARTs, two SPI interfaces, two I2C interfaces, a DMIC subsystem with dual-channel PDM microphone interface with voice activity detector, one 12-bit ADC, temperature sensor and comparator. 1579586382572709507720 PSP 1.4 MB None None documents None 1579586382572709507720 /docs/en/nxp/data-sheets/QN9090(T)QN9030(T).pdf 1420284 /docs/en/nxp/data-sheets/QN9090(T)QN9030(T).pdf QN9090(T)/QN9030(T) documents N N 2020-01-20 QN9090(T)/QN9030(T): Bluetooth Low Energy 5.0 wireless microcontroller /docs/en/nxp/data-sheets/QN9090(T)QN9030(T).pdf /docs/en/nxp/data-sheets/QN9090(T)QN9030(T).pdf Data Sheet N 980000996212993340 2023-10-17 pdf N en Jun 23, 2021 980000996212993340 Data Sheet Y N QN9090(T)/QN9030(T): Bluetooth Low Energy 5.0 wireless microcontroller アプリケーション・ノート Application Note 9 2 4 Y Chinese This application note lists board layout and antenna basics to aid in selecting the correct antenna type for your applicatio and avoid the typical layout mistakes. Additionally, several popular antennas are presented as possible solutions for some of the 802.15.4 and Bluetooth low energy applications. 1086357131907736459761zh PSP 14.2 MB None None documents None 1086357131907736459761 /docs/zh/application-note/AN2731.pdf 14194642 /docs/zh/application-note/AN2731.pdf AN2731 documents N N 2016-10-31 Compact Planar Antennas for 2.4 GHz Communication /docs/zh/application-note/AN2731.pdf /docs/zh/application-note/AN2731.pdf Application Note N 645036621402383989 /bundle/AN2731/page/topics/introduction.html 2024-12-20 zh Nov 11, 2020 645036621402383989 Application Note Y N 用于2.4 GHz通信的紧凑型平面天线 5.0 Y English https://docs.nxp.com/bundle/AN2731/page/topics/introduction.html With the introduction of many applications into the 2.4 GHz band for commercial and consumer use, antenna design has become a stumbling point for many customers. 1086357131907736459761 PSP 14.2 MB None None documents None 1086357131907736459761 /docs/en/application-note/AN2731.pdf 14194642 /docs/zh/application-note/AN2731.pdf /docs/en/application-note/AN2731.pdf AN2731 documents N N Y 2016-10-31 Compact Planar Antennas for 2.4 GHz Communication https://docs.nxp.com/bundle/AN2731/page/topics/introduction.html /docs/en/application-note/AN2731.pdf Application Note N 645036621402383989 /bundle/AN2731/page/topics/introduction.html /docs/en/application-note/AN2731.pdf 2024-12-20 14.2 MB pdf N en Nov 14, 2024 645036621402383989 Application Note Y N Compact Planar Antennas for 2.4 GHz Communication 3 1 English This document provides the QN9090 RF evaluation test results application note, AN12610, QN9090 RF, Bluetooth LE, TX, RX 1583424507948744250645 PSP 6.0 MB None None documents None 1583424507948744250645 /docs/en/nxp/application-notes/AN12610.pdf 5953183 /docs/en/nxp/application-notes/AN12610.pdf AN12610 documents N N 2020-03-05 QN9090 RF System Evaluation Report for Bluetooth Low Energy Applications /docs/en/nxp/application-notes/AN12610.pdf /docs/en/nxp/application-notes/AN12610.pdf Application Note N 645036621402383989 2024-12-14 pdf N en Mar 20, 2023 645036621402383989 Application Note Y N QN9090 RF System Evaluation Report for Bluetooth Low Energy Applications 4 3 English 1593707055267729419590 PSP 2.6 MB None None documents None 1593707055267729419590 /docs/en/application-note/AN12902.pdf 2550855 /docs/en/application-note/AN12902.pdf AN12902 documents N N 2020-07-02 QN9090 power consumption analysis /docs/en/application-note/AN12902.pdf /docs/en/application-note/AN12902.pdf Application Note N 645036621402383989 2024-12-13 pdf N en Jul 4, 2022 645036621402383989 Application Note Y N QN9090 power consumption analysis 5 0 English This document outlines critical parameters for DC-DC external component selection and implication of incorrect component selection. application note, AN12893, JN5189, QN9090, K32W, DCDC 1656581616496722026252 PSP 948.1 KB None None documents None 1656581616496722026252 /docs/en/application-note/AN12893.pdf 948073 /docs/en/application-note/AN12893.pdf AN12893 documents N N 2022-06-30 Using the DC-DC Feature /docs/en/application-note/AN12893.pdf /docs/en/application-note/AN12893.pdf Application Note N 645036621402383989 2024-12-13 pdf N en Jun 30, 2022 645036621402383989 Application Note Y N Using the DC-DC Feature 6 0 English 1646754202097724104906 PSP 1.7 MB Registration without Disclaimer None documents Extended 1646754202097724104906 /secured/assets/documents/en/application-note/AN13587.pdf 1694852 /secured/assets/documents/en/application-note/AN13587.pdf AN13587 documents Y N 2022-03-08 QN9090 OOB Pairing using NTAG /webapp/Download?colCode=AN13587&lang_cd=ja /secured/assets/documents/en/application-note/AN13587.pdf Application Note N 645036621402383989 2024-12-13 pdf Y en Mar 8, 2022 645036621402383989 Application Note Y N QN9090 OOB Pairing using NTAG 7 9.0 English Provides Assembly guidelines for QFN and SON packages handling and board mounting. Including recommendations for printed-circuit board (PCB) design, soldering, and rework. NOTE: combined with AN10365. 112GNLnm PSP 9.3 MB None None documents None 112GNLnm /docs/en/application-note/AN1902.pdf 9332633 /docs/en/application-note/AN1902.pdf AN1902 documents N N 2016-10-31 AN1902: Assembly Guidelines for QFN and SON Packages Application Note /docs/en/application-note/AN1902.pdf /docs/en/application-note/AN1902.pdf Application Note N 645036621402383989 2023-06-08 pdf N en Mar 30, 2021 645036621402383989 Application Note Y N AN1902: Assembly Guidelines for QFN and SON Packages Application Note 8 0 English A brief review on privacy and recommended practices 1602615915760698207043 PSP 545.6 KB None None documents None 1602615915760698207043 /docs/en/application-note/AN12928.pdf 545575 /docs/en/application-note/AN12928.pdf AN12928 documents N N 2020-10-13 Bluetooth<sup>®</sup> Low Energy Privacy and NXP QN9090 /docs/en/application-note/AN12928.pdf /docs/en/application-note/AN12928.pdf Application Note N 645036621402383989 2022-12-07 pdf N en Sep 1, 2020 645036621402383989 Application Note Y N Bluetooth<sup>®</sup> Low Energy Privacy and NXP QN9090 9 1.2 (1v2) English Information about using the K32W061 with a Front End Module (FEM) 1579554445205702825588 PSP 317.3 KB None None documents None 1579554445205702825588 /docs/en/application-note/JN-AN-1252.pdf 317271 /docs/en/application-note/JN-AN-1252.pdf JN-AN-1252 documents N N 2020-01-20 K32W061 High Power Support /docs/en/application-note/JN-AN-1252.pdf /docs/en/application-note/JN-AN-1252.pdf Application Note N 645036621402383989 2022-12-07 pdf N en Apr 29, 2020 645036621402383989 Application Note Y N K32W061 High Power Support 10 1.1 English Information on using the QN9090 over a wide temperature range 1579554445586697457958 PSP 205.2 KB None None documents None 1579554445586697457958 /docs/en/application-note/JN-AN-1264.pdf 205211 /docs/en/application-note/JN-AN-1264.pdf JN-AN-1264 documents N N 2020-01-20 Temperature-Dependent Operating Guidelines /docs/en/application-note/JN-AN-1264.pdf /docs/en/application-note/JN-AN-1264.pdf Application Note N 645036621402383989 2022-12-07 pdf N en Apr 28, 2020 645036621402383989 Application Note Y N Temperature-Dependent Operating Guidelines ユーザ・ガイド User Guide 5 11 0 English The MCUXpresso Software Development Kit (SDK) provides comprehensive software support for Kinetis and LPC Microcontrollers. The MCUXpresso SDK includes a flexible set of peripheral drivers designed to speed up and simplify development of embedded applications. 1661276153486743873574 PSP 1.7 MB None None documents None 1661276153486743873574 /docs/en/user-guide/MCUXSDKQN9090GSUG.pdf 1660311 /docs/en/user-guide/MCUXSDKQN9090GSUG.pdf MCUXSDKQN9090GSUG documents N N 2022-08-23 Getting Started with MCUXpresso SDK for QN9090 /docs/en/user-guide/MCUXSDKQN9090GSUG.pdf /docs/en/user-guide/MCUXSDKQN9090GSUG.pdf User Guide N 132339537837198660 2022-12-07 pdf N en Aug 23, 2022 132339537837198660 User Guide Y N Getting Started with MCUXpresso SDK for QN9090 12 3 English K32WQN9090CTUGSW.zip /secured/assets/documents/en/application-note-software/K32WQN9090CTUGSW.zip /webapp/Download?colCode=K32WQN9090CTUGSW&docLang=en K32W/QN9090/QN9030 is an ultra-low power Bluetooth LE wireless MCU, based on which the product can operate with the frequency within ISM band. user guide, K32W, QN9090, Certi tool, K32WQN9090CTUGSW 1594106301495707382663 PSP 629.9 KB Registration without Disclaimer None documents Extended 1594106301495707382663 /secured/assets/documents/en/user-guide/K32WQN9090CTUG.pdf 629909 /secured/assets/documents/en/user-guide/K32WQN9090CTUG.pdf K32WQN9090CTUG documents Y N 2020-07-06 K32W041/K32W061/QN9090(T)/QN9030(T) Bluetooth Low Energy Certification Tool User's Guide /webapp/Download?colCode=K32WQN9090CTUG&lang_cd=ja /secured/assets/documents/en/user-guide/K32WQN9090CTUG.pdf User Guide N 132339537837198660 2023-06-18 pdf Y en Nov 26, 2021 132339537837198660 User Guide Y N K32W041/K32W061/QN9090(T)/QN9030(T) Bluetooth Low Energy Certification Tool User's Guide 13 1.2 English The QN9090(T) and QN9030(T) (called QN9090(T)/QN9030(T) throughout this document) are ultra-low-power, high-performance Arm® Cortex®-M4 based wireless microcontrollers supporting Bluetooth Low Energy 5.0 to facilitate the development of low-power wireless applications such as solutions for the Smart Home 1579583442195724138236 PSP 13.8 MB Registration without Disclaimer None documents Extended 1579583442195724138236 /secured/assets/documents/en/user-guide/UM11141.pdf 13839096 /secured/assets/documents/en/user-guide/UM11141.pdf UM11141 documents Y N 2020-01-20 QN9090(T)/QN9030(T) User Manual /webapp/Download?colCode=UM11141&lang_cd=ja /secured/assets/documents/en/user-guide/UM11141.pdf User Guide N 132339537837198660 2023-06-18 pdf Y en Jun 23, 2021 132339537837198660 User Guide Y N QN9090(T)/QN9030(T) User Manual 14 1 Chinese This User Guide provides details about the QN9090DK and on developing Bluetooth Low Energy applications with the QN9090 Development Kit 1579553930585696330913zh PSP 2.1 MB Registration without Disclaimer None documents Extended 1579553930585696330913 /secured/assets/documents/zh/user-guide/UM11355-QN9090DK.pdf 2117811 /secured/assets/documents/zh/user-guide/UM11355-QN9090DK.pdf UM11355 documents Y N 2020-01-20 QN9090-DK006 Development Kit User Guide /secured/assets/documents/zh/user-guide/UM11355-QN9090DK.pdf https://www.nxp.com.cn/webapp/Download?colCode=UM11355&docLang=zh User Guide N 132339537837198660 2022-12-07 zh Jan 8, 2021 132339537837198660 User Guide Y N QN9090-DK006 开发工具包用户指南 1 English This document introduces all functions of QN9090 DK. Descripts all parts of QN9090 DK boards in detail. 1579553930585696330913 PSP 2.1 MB Registration without Disclaimer None documents Extended 1579553930585696330913 /secured/assets/documents/en/user-guide/UM11355-QN9090DK.pdf 2117811 /secured/assets/documents/en/user-guide/UM11355-QN9090DK.pdf UM11355 documents Y N 2020-01-20 QN9090-DK006 Development Kit User Guide /webapp/Download?colCode=UM11355&lang_cd=ja /secured/assets/documents/en/user-guide/UM11355-QN9090DK.pdf User Guide N 132339537837198660 2022-12-07 pdf Y en Jan 8, 2021 132339537837198660 User Guide Y N QN9090-DK006 Development Kit User Guide 15 1.0 English This Quick Start document provides an overview about the QN9090DK and its software tools and lists the steps to install the hardware and the software. 1579553931436738785323 PSP 913.6 KB Registration without Disclaimer None documents Extended 1579553931436738785323 /secured/assets/documents/en/user-guide/UM11356-DK.pdf 913639 /secured/assets/documents/en/user-guide/UM11356-DK.pdf UM11356-DK documents Y N 2020-01-20 QN9090-DK006 Development Kit Getting Started /webapp/Download?colCode=UM11356-DK&lang_cd=ja /secured/assets/documents/en/user-guide/UM11356-DK.pdf User Guide N 132339537837198660 2023-06-18 pdf Y en Jan 20, 2020 132339537837198660 User Guide Y N QN9090-DK006 Development Kit Getting Started アプリケーション・ノート・ソフトウェア Application Note Software 2 16 3 English software package, K32W, QN9090, Certi tool, K32WQN9090CTUGSW 1594103594789737241740 PSP 14.6 MB Registration without Disclaimer None documents Extended 1594103594789737241740 /secured/assets/documents/en/application-note-software/K32WQN9090CTUGSW.zip 14607575 /secured/assets/documents/en/application-note-software/K32WQN9090CTUGSW.zip K32WQN9090CTUGSW documents Y N 2020-07-06 Software package for K32WQN9090CTUG /webapp/Download?colCode=K32WQN9090CTUGSW&lang_cd=ja /secured/assets/documents/en/application-note-software/K32WQN9090CTUGSW.zip Application Note Software N 789425793691620447 2022-12-07 zip Y en Nov 26, 2021 789425793691620447 Application Note Software Y N Software package for K32WQN9090CTUG 17 5 (V5) English This is the software for JN-AN-1264 1579554888099720479101 PSP 484.6 KB None None documents None 1579554888099720479101 /docs/en/application-note-software/UPDATE_ROM_PATCH.zip 484579 /docs/en/application-note-software/UPDATE_ROM_PATCH.zip UPDATE_ROM_PATCH documents N N 2020-01-20 ROM Patch Version 5 /docs/en/application-note-software/UPDATE_ROM_PATCH.zip /docs/en/application-note-software/UPDATE_ROM_PATCH.zip Application Note Software N 789425793691620447 2022-12-07 zip N en Jan 20, 2020 789425793691620447 Application Note Software Y N ROM Patch Version 5 エラッタ Errata 1 18 3 English This report applies to the product list of QN9090, QN9090T, QN9030 and QN9030T which have the following marking information of Line C: s * D *** 2 1579716257737719222145 PSP 93.0 KB None None documents None 1579716257737719222145 /docs/en/errata/QN9090_ERRATA.pdf 93025 /docs/en/errata/QN9090_ERRATA.pdf QN9090_ERRATA documents N N 2020-01-22 Errata for QN9090 QN9090T QN9030 QN9030T /docs/en/errata/QN9090_ERRATA.pdf /docs/en/errata/QN9090_ERRATA.pdf Errata N 155452329886410597 2024-12-30 pdf N en Dec 24, 2024 155452329886410597 Errata Y N Errata for QN9090 QN9090T QN9030 QN9030T ファクト・シート Fact Sheet 1 19 0 Chinese QN9090 MCUs bring intelligence with Bluetooth connectivity by integrating the Arm CPU, large memory, and highly capable peripherals with options for NFC 1576591889348689768143zh PSP 427.5 KB None None documents None 1576591889348689768143 /docs/zh/fact-sheet/QN9090-FS.pdf 427536 /docs/zh/fact-sheet/QN9090-FS.pdf QN9090-FS documents N N 2019-12-17 QN9090 Bluetooth Connected Intelligence MCUs Fact Sheet /docs/zh/fact-sheet/QN9090-FS.pdf /docs/zh/fact-sheet/QN9090-FS.pdf Fact Sheet N 736675474163315314 2022-12-07 zh Jul 21, 2021 736675474163315314 Fact Sheet Y N QN9090 和 QN9030 最新的智能连接产品 0 English QN9090 MCUs bring intelligence with Bluetooth connectivity by integrating the Arm CPU, large memory, and highly capable peripherals with options for NFC 1576591889348689768143 PSP 427.5 KB None None documents None 1576591889348689768143 /docs/en/fact-sheet/QN9090-FS.pdf 427536 /docs/en/fact-sheet/QN9090-FS.pdf QN9090-FS documents N N 2019-12-17 QN9090 Bluetooth Connected Intelligence MCUs Fact Sheet /docs/en/fact-sheet/QN9090-FS.pdf /docs/en/fact-sheet/QN9090-FS.pdf Fact Sheet N 736675474163315314 2022-12-07 pdf N en Jan 13, 2020 736675474163315314 Fact Sheet Y N QN9090 Bluetooth Connected Intelligence MCUs Fact Sheet false 0 QN9090-30 downloads ja true 1 Y PSP Y Y アプリケーション・ノート 9 2016-10-31 /bundle/AN2731/page/topics/introduction.html Nov 14, 2024 Application Note With the introduction of many applications into the 2.4 GHz band for commercial and consumer use, antenna design has become a stumbling point for many customers. /docs/zh/application-note/AN2731.pdf /docs/en/application-note/AN2731.pdf Y documents Y 2024-12-20 https://docs.nxp.com/bundle/AN2731/page/topics/introduction.html 645036621402383989 en None /docs/en/application-note/AN2731.pdf pdf 14.2 MB N 14.2 MB AN2731 1086357131907736459761 /docs/en/application-note/AN2731.pdf https://docs.nxp.com/bundle/AN2731/page/topics/introduction.html 1086357131907736459761 PSP 2 None English 14194642 None 645036621402383989 N Compact Planar Antennas for 2.4 GHz Communication /docs/en/application-note/AN2731.pdf documents Application Note N Y 5.0 N Compact Planar Antennas for 2.4 GHz Communication N 2020-03-05 Mar 20, 2023 Application Note This document provides the QN9090 RF evaluation test results application note, AN12610, QN9090 RF, Bluetooth LE, TX, RX /docs/en/nxp/application-notes/AN12610.pdf documents 2024-12-14 /docs/en/nxp/application-notes/AN12610.pdf 645036621402383989 en None pdf N 6.0 MB AN12610 1583424507948744250645 /docs/en/nxp/application-notes/AN12610.pdf 1583424507948744250645 PSP 3 None English 5953183 None 645036621402383989 N QN9090 RF System Evaluation Report for Bluetooth Low Energy Applications /docs/en/nxp/application-notes/AN12610.pdf documents Application Note N Y 1 N QN9090 RF System Evaluation Report for Bluetooth Low Energy Applications N 2020-07-02 Jul 4, 2022 Application Note /docs/en/application-note/AN12902.pdf documents 2024-12-13 /docs/en/application-note/AN12902.pdf 645036621402383989 en None pdf N 2.6 MB AN12902 1593707055267729419590 /docs/en/application-note/AN12902.pdf 1593707055267729419590 PSP 4 None English 2550855 None 645036621402383989 N QN9090 power consumption analysis /docs/en/application-note/AN12902.pdf documents Application Note N Y 3 N QN9090 power consumption analysis N 2022-06-30 Jun 30, 2022 Application Note This document outlines critical parameters for DC-DC external component selection and implication of incorrect component selection. application note, AN12893, JN5189, QN9090, K32W, DCDC /docs/en/application-note/AN12893.pdf documents 2024-12-13 /docs/en/application-note/AN12893.pdf 645036621402383989 en None pdf N 948.1 KB AN12893 1656581616496722026252 /docs/en/application-note/AN12893.pdf 1656581616496722026252 PSP 5 None English 948073 None 645036621402383989 N Using the DC-DC Feature /docs/en/application-note/AN12893.pdf documents Application Note N Y 0 N Using the DC-DC Feature N 2022-03-08 Mar 8, 2022 Application Note /secured/assets/documents/en/application-note/AN13587.pdf documents 2024-12-13 /webapp/Download?colCode=AN13587&lang_cd=ja 645036621402383989 en Extended pdf N 1.7 MB AN13587 1646754202097724104906 /secured/assets/documents/en/application-note/AN13587.pdf 1646754202097724104906 PSP 6 Registration without Disclaimer English 1694852 None 645036621402383989 Y QN9090 OOB Pairing using NTAG /secured/assets/documents/en/application-note/AN13587.pdf documents Application Note N Y 0 Y QN9090 OOB Pairing using NTAG N 2016-10-31 Mar 30, 2021 Application Note Provides Assembly guidelines for QFN and SON packages handling and board mounting. Including recommendations for printed-circuit board (PCB) design, soldering, and rework. NOTE: combined with AN10365. /docs/en/application-note/AN1902.pdf documents 2023-06-08 /docs/en/application-note/AN1902.pdf 645036621402383989 en None pdf N 9.3 MB AN1902 112GNLnm /docs/en/application-note/AN1902.pdf 112GNLnm PSP 7 None English 9332633 None 645036621402383989 N AN1902: Assembly Guidelines for QFN and SON Packages Application Note /docs/en/application-note/AN1902.pdf documents Application Note N Y 9.0 N AN1902: Assembly Guidelines for QFN and SON Packages Application Note N 2020-10-13 Sep 1, 2020 Application Note A brief review on privacy and recommended practices /docs/en/application-note/AN12928.pdf documents 2022-12-07 /docs/en/application-note/AN12928.pdf 645036621402383989 en None pdf N 545.6 KB AN12928 1602615915760698207043 /docs/en/application-note/AN12928.pdf 1602615915760698207043 PSP 8 None English 545575 None 645036621402383989 N Bluetooth<sup>®</sup> Low Energy Privacy and NXP QN9090 /docs/en/application-note/AN12928.pdf documents Application Note N Y 0 N Bluetooth<sup>®</sup> Low Energy Privacy and NXP QN9090 N 2020-01-20 Apr 29, 2020 Application Note Information about using the K32W061 with a Front End Module (FEM) /docs/en/application-note/JN-AN-1252.pdf documents 2022-12-07 /docs/en/application-note/JN-AN-1252.pdf 645036621402383989 en None pdf N 317.3 KB JN-AN-1252 1579554445205702825588 /docs/en/application-note/JN-AN-1252.pdf 1579554445205702825588 PSP 9 None English 317271 None 645036621402383989 N K32W061 High Power Support /docs/en/application-note/JN-AN-1252.pdf documents Application Note N Y 1.2 (1v2) N K32W061 High Power Support N 2020-01-20 Apr 28, 2020 Application Note Information on using the QN9090 over a wide temperature range /docs/en/application-note/JN-AN-1264.pdf documents 2022-12-07 /docs/en/application-note/JN-AN-1264.pdf 645036621402383989 en None pdf N 205.2 KB JN-AN-1264 1579554445586697457958 /docs/en/application-note/JN-AN-1264.pdf 1579554445586697457958 PSP 10 None English 205211 None 645036621402383989 N Temperature-Dependent Operating Guidelines /docs/en/application-note/JN-AN-1264.pdf documents Application Note N Y 1.1 N Temperature-Dependent Operating Guidelines N アプリケーション・ノート・ソフトウェア 2 2020-07-06 Nov 26, 2021 Application Note Software software package, K32W, QN9090, Certi tool, K32WQN9090CTUGSW /secured/assets/documents/en/application-note-software/K32WQN9090CTUGSW.zip documents 2022-12-07 /webapp/Download?colCode=K32WQN9090CTUGSW&lang_cd=ja 789425793691620447 en Extended zip N 14.6 MB K32WQN9090CTUGSW 1594103594789737241740 /secured/assets/documents/en/application-note-software/K32WQN9090CTUGSW.zip 1594103594789737241740 PSP 16 Registration without Disclaimer English 14607575 None 789425793691620447 Y Software package for K32WQN9090CTUG /secured/assets/documents/en/application-note-software/K32WQN9090CTUGSW.zip documents Application Note Software N Y 3 Y Software package for K32WQN9090CTUG N 2020-01-20 Jan 20, 2020 Application Note Software This is the software for JN-AN-1264 /docs/en/application-note-software/UPDATE_ROM_PATCH.zip documents 2022-12-07 /docs/en/application-note-software/UPDATE_ROM_PATCH.zip 789425793691620447 en None zip N 484.6 KB UPDATE_ROM_PATCH 1579554888099720479101 /docs/en/application-note-software/UPDATE_ROM_PATCH.zip 1579554888099720479101 PSP 17 None English 484579 None 789425793691620447 N ROM Patch Version 5 /docs/en/application-note-software/UPDATE_ROM_PATCH.zip documents Application Note Software N Y 5 (V5) N ROM Patch Version 5 N エラッタ 1 2020-01-22 Dec 24, 2024 Errata This report applies to the product list of QN9090, QN9090T, QN9030 and QN9030T which have the following marking information of Line C: s * D *** 2 /docs/en/errata/QN9090_ERRATA.pdf documents 2024-12-30 /docs/en/errata/QN9090_ERRATA.pdf 155452329886410597 en None pdf N 93.0 KB QN9090_ERRATA 1579716257737719222145 /docs/en/errata/QN9090_ERRATA.pdf 1579716257737719222145 PSP 18 None English 93025 None 155452329886410597 N Errata for QN9090 QN9090T QN9030 QN9030T /docs/en/errata/QN9090_ERRATA.pdf documents Errata N Y 3 N Errata for QN9090 QN9090T QN9030 QN9030T N データ・シート 1 2020-01-20 Jun 23, 2021 Data Sheet The product has 640 KB embedded Flash, 152 KB RAM memory. The embedded flash can support Over The Air (OTA) code download of applications. The devices include 10-channel PWM, two timers, one RTC/alarm timer, a Windowed Watchdog Timer (WWDT), two USARTs, two SPI interfaces, two I2C interfaces, a DMIC subsystem with dual-channel PDM microphone interface with voice activity detector, one 12-bit ADC, temperature sensor and comparator. /docs/en/nxp/data-sheets/QN9090(T)QN9030(T).pdf documents 2023-10-17 /docs/en/nxp/data-sheets/QN9090(T)QN9030(T).pdf 980000996212993340 en None pdf N 1.4 MB QN9090(T)/QN9030(T) 1579586382572709507720 /docs/en/nxp/data-sheets/QN9090(T)QN9030(T).pdf 1579586382572709507720 PSP 1 None English 1420284 None 980000996212993340 N QN9090(T)/QN9030(T): Bluetooth Low Energy 5.0 wireless microcontroller /docs/en/nxp/data-sheets/QN9090(T)QN9030(T).pdf documents Data Sheet N Y 1.2 N QN9090(T)/QN9030(T): Bluetooth Low Energy 5.0 wireless microcontroller N ファクト・シート 1 2019-12-17 Jan 13, 2020 Fact Sheet QN9090 MCUs bring intelligence with Bluetooth connectivity by integrating the Arm CPU, large memory, and highly capable peripherals with options for NFC /docs/en/fact-sheet/QN9090-FS.pdf documents 2022-12-07 /docs/en/fact-sheet/QN9090-FS.pdf 736675474163315314 en None pdf N 427.5 KB QN9090-FS 1576591889348689768143 /docs/en/fact-sheet/QN9090-FS.pdf 1576591889348689768143 PSP 19 None English 427536 None 736675474163315314 N QN9090 Bluetooth Connected Intelligence MCUs Fact Sheet /docs/en/fact-sheet/QN9090-FS.pdf documents Fact Sheet N Y 0 N QN9090 Bluetooth Connected Intelligence MCUs Fact Sheet N ユーザ・ガイド 5 2022-08-23 Aug 23, 2022 User Guide The MCUXpresso Software Development Kit (SDK) provides comprehensive software support for Kinetis and LPC Microcontrollers. The MCUXpresso SDK includes a flexible set of peripheral drivers designed to speed up and simplify development of embedded applications. /docs/en/user-guide/MCUXSDKQN9090GSUG.pdf documents 2022-12-07 /docs/en/user-guide/MCUXSDKQN9090GSUG.pdf 132339537837198660 en None pdf N 1.7 MB MCUXSDKQN9090GSUG 1661276153486743873574 /docs/en/user-guide/MCUXSDKQN9090GSUG.pdf 1661276153486743873574 PSP 11 None English 1660311 None 132339537837198660 N Getting Started with MCUXpresso SDK for QN9090 /docs/en/user-guide/MCUXSDKQN9090GSUG.pdf documents User Guide N Y 0 N Getting Started with MCUXpresso SDK for QN9090 N 2020-07-06 Nov 26, 2021 User Guide K32W/QN9090/QN9030 is an ultra-low power Bluetooth LE wireless MCU, based on which the product can operate with the frequency within ISM band. user guide, K32W, QN9090, Certi tool, K32WQN9090CTUGSW /secured/assets/documents/en/user-guide/K32WQN9090CTUG.pdf documents 2023-06-18 /webapp/Download?colCode=K32WQN9090CTUG&lang_cd=ja 132339537837198660 en Extended pdf N 629.9 KB K32WQN9090CTUG 1594106301495707382663 /secured/assets/documents/en/user-guide/K32WQN9090CTUG.pdf 1594106301495707382663 PSP 12 Registration without Disclaimer English 629909 None 132339537837198660 Y K32W041/K32W061/QN9090(T)/QN9030(T) Bluetooth Low Energy Certification Tool User's Guide /secured/assets/documents/en/user-guide/K32WQN9090CTUG.pdf documents User Guide N Y 3 Y K32W041/K32W061/QN9090(T)/QN9030(T) Bluetooth Low Energy Certification Tool User's Guide N 2020-01-20 Jun 23, 2021 User Guide The QN9090(T) and QN9030(T) (called QN9090(T)/QN9030(T) throughout this document) are ultra-low-power, high-performance Arm® Cortex®-M4 based wireless microcontrollers supporting Bluetooth Low Energy 5.0 to facilitate the development of low-power wireless applications such as solutions for the Smart Home /secured/assets/documents/en/user-guide/UM11141.pdf documents 2023-06-18 /webapp/Download?colCode=UM11141&lang_cd=ja 132339537837198660 en Extended pdf N 13.8 MB UM11141 1579583442195724138236 /secured/assets/documents/en/user-guide/UM11141.pdf 1579583442195724138236 PSP 13 Registration without Disclaimer English 13839096 None 132339537837198660 Y QN9090(T)/QN9030(T) User Manual /secured/assets/documents/en/user-guide/UM11141.pdf documents User Guide N Y 1.2 Y QN9090(T)/QN9030(T) User Manual N 2020-01-20 Jan 8, 2021 User Guide This document introduces all functions of QN9090 DK. Descripts all parts of QN9090 DK boards in detail. /secured/assets/documents/en/user-guide/UM11355-QN9090DK.pdf documents 2022-12-07 /webapp/Download?colCode=UM11355&lang_cd=ja 132339537837198660 en Extended pdf N 2.1 MB UM11355 1579553930585696330913 /secured/assets/documents/en/user-guide/UM11355-QN9090DK.pdf 1579553930585696330913 PSP 14 Registration without Disclaimer English 2117811 None 132339537837198660 Y QN9090-DK006 Development Kit User Guide /secured/assets/documents/en/user-guide/UM11355-QN9090DK.pdf documents User Guide N Y 1 Y QN9090-DK006 Development Kit User Guide N 2020-01-20 Jan 20, 2020 User Guide This Quick Start document provides an overview about the QN9090DK and its software tools and lists the steps to install the hardware and the software. /secured/assets/documents/en/user-guide/UM11356-DK.pdf documents 2023-06-18 /webapp/Download?colCode=UM11356-DK&lang_cd=ja 132339537837198660 en Extended pdf N 913.6 KB UM11356-DK 1579553931436738785323 /secured/assets/documents/en/user-guide/UM11356-DK.pdf 1579553931436738785323 PSP 15 Registration without Disclaimer English 913639 None 132339537837198660 Y QN9090-DK006 Development Kit Getting Started /secured/assets/documents/en/user-guide/UM11356-DK.pdf documents User Guide N Y 1.0 Y QN9090-DK006 Development Kit Getting Started N true Y Products
