Fully Certified Module Supporting Bluetooth and NFC

QN9080SIP 製造中止

Note: QN9090/30 is preferred for any new Bluetooth LE design.

The QN9080-001-M17 is a fully certified module supporting Bluetooth® 5 and NFC. It has ultra-low power consumption, highly integrated with rich feature sets, fully FCC/CE/IC/MIC certified.

The module is based on the QN9080 Bluetooth MCU powered by an Arm® Cortex®-M4F and integrates a dedicated fusion sensor co-processor (FSP). The 512 KB onboard flash and 128 KB SRAM provide enough room and flexibility for complex applications and the connectivity stacks.

It also integrates NFC NTAG, 32 MHz and 32 kHz Crystals, RF matching, and 2.4 GHz antenna, offering a complete and ready-to-use solution for applications requiring Bluetooth Low Energy wireless connectivity and simple pairing with NFC NTAG.

ブロック図

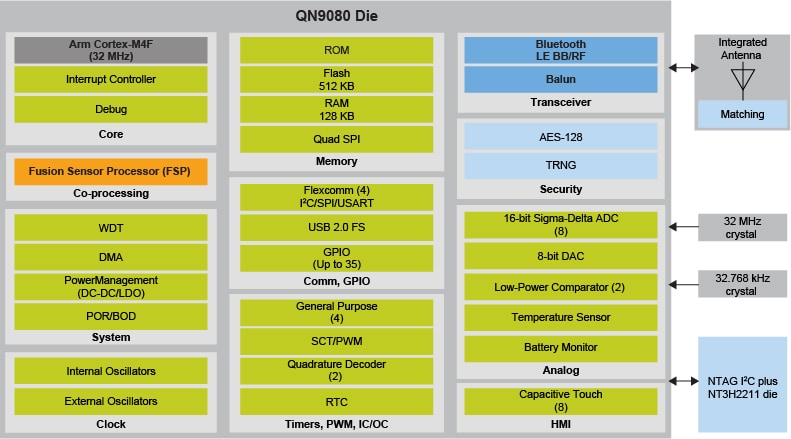

QN9080SIP Block Diagram

QN9080SIP Block Diagram
図を取得する PDF

Features

Bluetooth Low Energy Radio Features

  • -92.7 dB RX sensitivity.
  • -20 dBm to +2 dBm TX output power.
  • LE 2M PHY with Bluetooth 5 qualified Supports up to 16 simultaneous links.

NTAG Features

  • ISO/IEC 14443 Part 2 and 3 compliant
  • NTAG I2C plus development board is certified as NFC Forum Type 2 Tag
  • (Certification ID: 58514)

Core and Memories

  • 32 MHz Cortex–M4F core 512KB flash memory 128 KB SRAM
  • 32 MHz Fusion Sensor Processor (FSP)
  • 512 KB flash, 128 KB RAM

Low Power Consumption and Operating Volatage Rangers

  • 3.5 mA TX current @ 0dBm Tx power
  • 4.0 mA RX current
  • Operating voltage: 1.67 to 3.6V

Digital and Analog Peripherals

  • UART/SPI/I2C up to 2, 1 USB 2.0 full speed
  • 8 ch 16-bit Σ△ADC, 8 bit DAC with 1Msps, 2 ultra-low power comparators
  • 4 x general purpose timer, SCT/PWM
  • 8 ch capacitive touch
  • Quad-SPI for XIP
  • Temperature sensor

Easy of Design

  • Integrated 32 MHz and 32.768 kHz crystals
  • Integrated 2.4 GHz antenna
  • Fully FCC/CE/IC/MIC certified.

もっと見る

購入/パラメータ

‌
‌
‌
‌
‌
‌
‌
‌
‌
‌
‌
‌
‌
‌
‌
‌
‌

‌
‌
‌
‌
‌
‌
‌
‌

‌
‌
‌
‌
‌
‌
‌
‌

‌
‌
‌
‌
‌
‌
‌
‌

‌
‌
‌
‌
‌
‌
‌
‌

‌
‌
‌
‌
‌
‌
‌
‌

‌
‌
‌
‌
‌
‌
‌
‌

‌
‌
‌
‌
‌
‌
‌
‌

‌
‌
‌
‌
‌
‌
‌
‌

‌
‌
‌
‌
‌
‌
‌
‌

‌
‌
‌
‌
‌
‌
