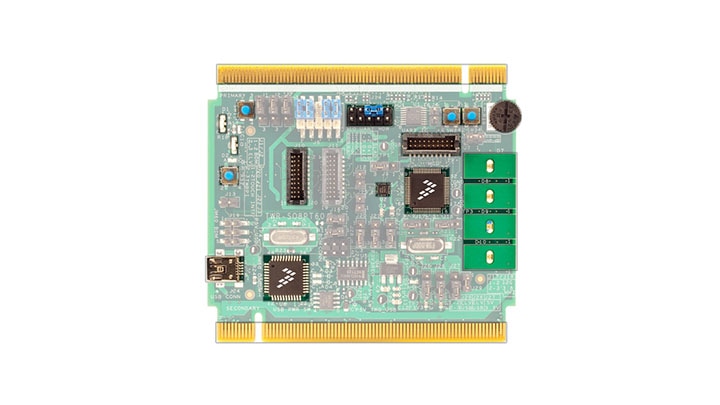

MC9S08PT60 Tower System Module Development Board

TWR-S08PT60 アクティブ

画像にカーソルを合わせると拡大表示されます。

The TWR-S08PT60 is a development tool for the NXP® MC9S08PT60 rugged 5V 8-bit MCUs and is designed to highlight the touch sensing and motor control capabilities of the MCU. The TWR-S08PT60 operates as a standalone debug tool and can also be combined and used as part of the modular Tower® System development platform.

製品詳細

対応製品

プロセッサ＆マイクロコントローラ

8ビットS08 MCU

  • S08SU: 8-bit Ultra High Voltage Motor Control SU MCUs

Features

Microcontroller

MC9S08PT60 MCU
  • 8 MHz Crystal for system clock

Sensors

  • Low-g sensor (MA8451) through IIC connection

User Components

  • Potentiometer for ADC input
  • 4 touch pads each with LED indicator
  • Reset button and 3 functional switches
  • RS-232 port
  • Infra-red Tx/Rx through SCI
  • Sockets for touch sensing and motor control daughter card expansion
  • OSBDM debug support with Mini-B USB connector

購入オプション

TWR-S08PT60-Image

クリックして展開

  • TWR-S08PT60
    アクティブ

  • Tower System, 8-bit MCU Module, MC9S08PT60, Rugged 5V.

    • Part Number TWR-S08PT60 contains:
      • TWR-S08PT60 board with MC9S08PT60 8-bit MCU
      • Necessary cables
      • DVD with lab tutorials, software, training and collateral
      • Quick Start Guide document
    • Part Number TWR-S08PT60-KIT also contains:
  • の数量に対して 1
代理店からの注文
TWR-S08PT60-KIT-Image

クリックして展開

  • の数量に対して 1
代理店からの注文
