Freedom Hardware Tool for Evaluation of the MC24XS4 Family

FRDM-24XSMBEVB アクティブ

画像にカーソルを合わせると拡大表示されます。

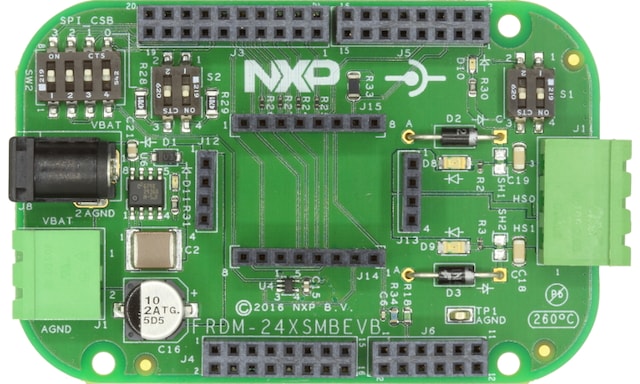

NXP's Freedom boards FRDM-24XSMBEVB is a hardware tool for evaluation and development of the different eXtreme switches that composes the 24 V family. This motherboard can be associated with 5 different devices from this family thanks to its shield connectors.
These compatible devices are from 24 V family, dual high side devices that feature integrated control with high flexibility and a high number of protection and diagnostic functions. These boards are easy to use thanks to the following interfaces:

  • FRDM-KL25Z and its SPIGEN Graphical User Interface
  • Freedom KL25z, KV10Z, K64F with Processor Expert components

製品詳細

対応製品

プロセッサ＆マイクロコントローラ

K6xイーサネット

  • K64_120: Kinetis® K64-120 MHz, 256 KB SRAM Microcontrollers (MCUs) Based on Arm® Cortex®-M4 Core

KLシリーズ Arm Cortex-M0+

  • KL2x: Kinetis® KL2x-72/96 MHz, USB Ultra-Low-Power Microcontrollers (MCUs) based on Arm® Cortex®-M0+ Core

KVシリーズArm Cortex-M4/M0+/M7

  • KV1x: Kinetis® KV1x-75 MHz,  Entry-Level 3ph FOC / Sensorless Motor Control MCUs based on Arm® Cortex®-M0+

パワーマネージメント

ハイサイド・スイッチ

  • MC24XS4: 24 V Multipurpose Low RDSON eXtreme Switch

Features

Main Board

  • FRDM-24XSMBEVB that is associated with MCUs

5 different shield boards that cover the 5 devices of the family

  • FRDM-06XSDBEVB: covers MC06XS4200 (2 outputs 06 mOhm in PQFN package)
  • FRDM-10XSDBEVB: covers MC10XS4200 (2 outputs 10 mOhm in PQFN package)
  • FRDM-20XSDBEVB: covers MC20XS4200 (2 outputs 20 mOhm in PQFN package)
  • FRDM-22XSDBEVB: covers MC22XS4200 (2 outputs 22 mOhm in SOIC32 package)
  • FRDM-50XSDBEVB: covers MC50XS4200 (2 outputs 50 mOhm in SOIC32 package)

General Specifications

  • This board can control various type opf loads such as solenoids, PLC, DC motors, bulbs, or LED...
  • These devices offer to set of overcurrent profiles, channel control including PWM duty-cycles, parallel mode, output-ON and -OFF OpenLoad detections, thermal shut-down and prewarning, and fault reporting
  • Output current monitoring with programmable synchronization signal
  • Compatible SPI software driver among the family

Device can be driven by the 16-bit SPI using

  • KL25Z with SPIGen software
  • KL25Z, KV10Z and K64F using Processor Expert component 36 V eXtremeSwitch using CodeWarrior 10.6 or Kinetis Design Studio v3.0 or higher
  • With direct input signals in Fail-safe mode operation (switch on board)

購入オプション

FRDM-24XSMBEVB-Image

クリックして展開

  • FRDM-24XSMBEVB
    アクティブ

  • Freedom platform mother board for 24V extreme switches.

    • Freedom board
    • Connectors for power input/outputs
    • Quick Start Guide
  • $41.40 USD
  • の数量に対して 1
    • 在庫: 保留中の在庫
カートに入れる
代理店からの注文
FRDM-50XSDBEVB-Image

クリックして展開

  • FRDM-50XSDBEVB
    アクティブ

  • Freedom platform daughter board for 24V extreme switches 50mOhm.

  • $34.50 USD
  • の数量に対して 1
    • 在庫: 保留中の在庫
カートに入れる
代理店からの注文
FRDM-22XSDBEVB-Image

クリックして展開

  • FRDM-22XSDBEVB
    アクティブ

  • Freedom platform daughter board for 24V extreme switches 22mOhm.

  • $34.50 USD
  • の数量に対して 1
    • 在庫: 保留中の在庫
カートに入れる
代理店からの注文
FRDM-20XSDBEVB-Image

クリックして展開

  • FRDM-20XSDBEVB
    アクティブ

  • Freedom platform daughter board for 24V extreme switches 20mOhm.

  • $34.50 USD
  • の数量に対して 1
    • 在庫: 保留中の在庫
カートに入れる
代理店からの注文
FRDM-10XSDBEVB-Image

クリックして展開

  • FRDM-10XSDBEVB
    アクティブ

  • Freedom platform daughter board for 24V extreme switches 10mOhm.

  • $34.50 USD
  • の数量に対して 1
    • 在庫: 保留中の在庫
カートに入れる
代理店からの注文
FRDM-06XSDBEVB-Image

クリックして展開

  • FRDM-06XSDBEVB
    アクティブ

  • Freedom platform daughter board for 24V extreme switches 6mOhm.

  • $34.50 USD
  • の数量に対して 1
    • 在庫: 保留中の在庫
カートに入れる
代理店からの注文
