Arm® Cortex®-M4|Kinetis® K64 120 MHz 32-bit MCUs

動画の上をクリックすると再生されます。

The Kinetis^® K series MCU portfolio offers the broadest selection of pin, peripheral- and software-compatible MCU families based on the Arm^® Cortex^®-M4 core. The Kinetis K64 120 MHz MCUs feature:

IEEE^® 1588 Ethernet MCUs
Optimization for applications requiring large memory densities and low-power processing efficiency
Crystal-less USB design for reduced system cost and board space
The comprehensive enablement and scalability of the Kinetis portfolio

データシート

リファレンス・マニュアル

製品詳細

ブロック図

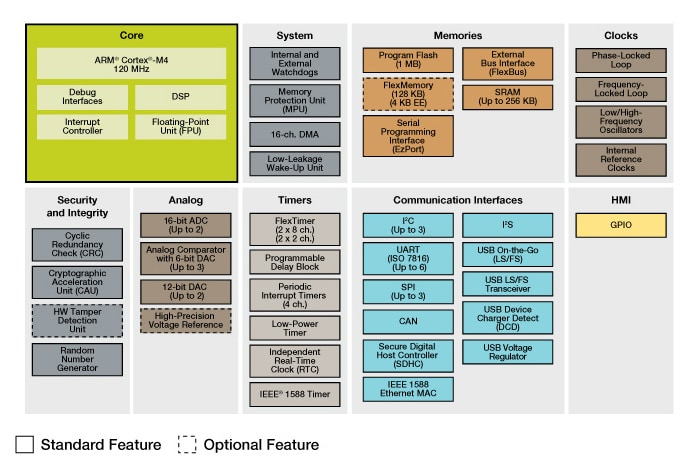

Kinetis K63/K64 MCU Family Block Diagram

図を取得する PDF

Features

Ultra-Low-Power

Flexible low-power modes with power and clock gating for optimal peripheral activity and recovery times. Stop currents of <340 nA, run currents of <250 µA/MHz, 4.5 µs wake-up from Stop mode
Full memory and analog operation down to 1.71 volts for extended battery life
Low-leakage wake-up unit with up to seven internal modules and 16 pins as wake-up sources in low-leakage stop (LLS)/very low-leakage stop (VLLS) modes
Low-power timer for continuous system operation in reduced power state

Flash, SRAM, and FlexMemory

Up to 1 MB flash. Fast access, high reliability with four-level security protection
256 KB of SRAM
FlexMemory: Up to 4 KB of user-segmentable byte write/erase EEPROM for data tables/system data. EEPROM with over 10M cycles and flash with 70 µsec write time (brownouts without data loss/corruption). No user or system intervention to complete programming and erase functions and full operation down to 1.71 volts. In addition, up to 128KB of FlexNVM for extra program code, data or EEPROM backup

Mixed-Signal Capability

Two high-speed, 16-bit analog-to-digital converters (ADCs) with configurable resolution. Single or differential output mode operation for improved noise rejection. 500 ns conversion time achievable with programmable delay block triggering
Two 12-bit digital-to-analog converters (DACs) for analog waveform generation for audio applications
Three high-speed comparators providing fast and accurate motor over-current protection by driving PWMs to a safe state
Analog voltage reference provides an accurate reference to analog blocks, ADC and DAC, and replaces external voltage references to reduce system cost

Performance

Arm^® Cortex^®-M4 core + DSP. 120 MHz, single-cycle MAC, single instruction multiple data (SIMD) extensions, single precision floating point unit
Up to 16-channel DMA for peripheral and memory servicing with reduced CPU loading and faster system throughput
Crossbar switch enables concurrent multi-leader bus accesses, increasing bus bandwidth
Independent flash banks allow concurrent code execution and firmware updating with no performance degradation or complex coding routines

Timing and Control

Up to four FlexTimers with a total of 20 channels. Hardware dead-time insertion and quadrature decoding for motor control
Carrier modulator timer for infrared waveform generation in remote control applications
Four-channel 32-bit periodic interrupt timer provides a time base for RTOS task scheduler or trigger source for ADC conversion and programmable delay block

Human-Machine Interface (HMI)

GPIO with pin interrupt support

Connectivity and Communications

IEEE 1588 Ethernet MAC with hardware time stamping provides precision clock synchronization for real-time industrial control
USB 2.0 On-The-Go (full-speed) with USB transceiver. Intelligent design with embedded 48 MHz oscillator allowing for USB crystal-less system design. Device charge detect optimizes charging current/time for portable USB devices enabling longer battery life. Low-voltage regulator supplies up to 120 mA off-chip at 3.3 volts to power external components from 5 volts input
Up to six UARTs with IrDA support including one UART with ISO7816 smart card support. Variety of data size, format and transmission/reception settings supported by multiple industrial communication protocols
Inter-IC Sound (I²S) serial interface for audio system interfacing
CAN module for industrial network bridging
Three DSPI and three I²C

Reliability, Safety and Security

Memory protection unit provides memory protection for all leaders on the crossbar switch, increasing software reliability
Cyclic redundancy check engine validates memory contents and communication data, increasing system reliability
Independent-clocked COP guards against clock skew or code runaway for fail-safe applications such as the IEC 60730 safety standard for household appliances
External watchdog monitor drives output pin to safe state external components if watchdog event occurs

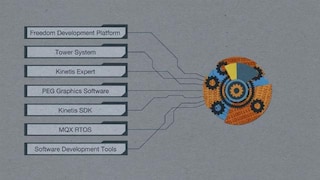

MCUXpresso Software and Tools

K53_100

アクティブ

類似

Kinetis^® K53-100 MHz, USB, Segment LCD, Ethernet Microcontrollers (MCUs) based on Arm^® Cortex^®-M4 Core

データシート:
PDF

K63_120

アクティブ

類似

Kinetis^® K63-120 MHz, 256KB SRAM, Anti-Tamper Microcontrollers (MCUs) based on Arm^® Cortex^®-M4 Core

データシート:
PDF

K70_120

アクティブ

類似

Kinetis^® K70-120–150 MHz, High-Speed USB, Ethernet, DDR and Anti-Tamper Microcontrollers Based on Arm^® Cortex^®-M4 Core

データシート:
PDF

購入/パラメータ

‌ ‌ ‌	‌ ‌	‌ ‌	‌ ‌	‌ ‌	‌ ‌
‌ ‌ ‌	‌	‌	‌	‌	‌
‌ ‌ ‌	‌	‌	‌	‌	‌
‌ ‌ ‌	‌	‌	‌	‌	‌
‌ ‌ ‌	‌	‌	‌	‌	‌
‌ ‌ ‌	‌	‌	‌	‌	‌
‌ ‌ ‌	‌	‌	‌	‌	‌
‌ ‌ ‌	‌	‌	‌	‌	‌
‌ ‌ ‌	‌	‌	‌	‌	‌
‌ ‌ ‌	‌	‌	‌	‌	‌
‌ ‌ ‌	‌	‌	‌	‌	‌

設計・リソース

デザイン・ファイル

クイック・リファレンス設計・ファイルの種類.

5 設計・ファイル

完全な内訳を受け取ります。 製品の設置面積などについては、 eCad ファイル.

シミュレーションとモデル
K64-K63-K24-IBIS Model

ZIP改訂 1.0Jan 11, 2017 00:00:00335.0 KBK64-K63-K24-IBIS

アカウントが必要です
ダウンロードToggle Dropdown
- キューに追加
- キューから削除
- ファイルサイズが大きい場合にお勧めします。
- キューを表示
シミュレーションとモデル
K64_K63_K24 BSDL

ZIP改訂 1.0Feb 17, 2014 00:00:0035.9 KBK64_K63_K24_BSDL

アカウントが必要です
ダウンロードToggle Dropdown
- キューに追加
- キューから削除
- ファイルサイズが大きい場合にお勧めします。
- キューを表示
シンボルおよびフットプリント
Kinetis^® Symbols, Footprints and Models

INTERNAL改訂 1.0Nov 27, 2017 11:23:001 KBCAD-SYMBOLFOOTPRINTS

ダウンロード
電卓
Kinetis^® Power Estimation Tool

ダウンロード・オプション
電卓
TFS FlexMem Endurance Calculator

ZIP改訂 vBeta025Aug 1, 2014 00:00:003.2 MBTFS_FLEXMEM_CALCULATOR

アカウントが必要です
ダウンロードToggle Dropdown
- キューに追加
- キューから削除
- ファイルサイズが大きい場合にお勧めします。
- キューを表示

ハードウェア

クイック・リファレンスボードタイプ.

1-5 の 17 ハードウェア提供

アダプタ、ケーブル、ソケット
Tower Plug-In (TWRPI) Adaptor Board for Freedom Development Platform注目

FRDM-TWRPI
評価・開発ボード
Kinetis^® K64 MCU Tower System Module注目

TWR-K64F120M
評価・開発ボード
Freedom Development Platform for Kinetis^® K64, K63, and K24 MCUs注目

FRDM-K64F
追加ハードウェアを利用可能パートナー・ソリューションの特集を表示.
完全なソリューション
NXP Rapid IoT Prototyping Kit

IOT-PROTOTYPING
エミュレータ、プローブ、プログラマ
Universal Multilink開発インターフェース

UMultilink
エミュレータ、プローブ、プログラマ
MCU-Link Debug Probe

MCU-LINK
エミュレータ、プローブ、プログラマ
LPC-Link2

OM13054
エミュレータ、プローブ、プログラマ
Universal Multilink FX高速開発インターフェース

U-MULTILINK-FX
エミュレータ、プローブ、プログラマ
PEmicro Cyclone programmer

CYCLONE
エミュレータ、プローブ、プログラマ
PEmicro Cyclone FX programmer

CYCLONE-FX
エミュレータ、プローブ、プログラマ
MCU-Link Pro Debug Probe

MCU-LINK-PRO
評価・開発ボード

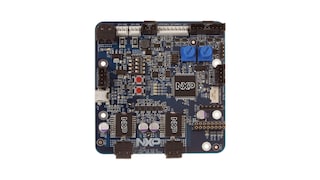

Mikroe NXP Cup Mainboard

RDDRONE-CUPK64
評価・開発ボード
MPC560x Calibration, Debug and Interface Boards

MPC560xBOARDS
評価・開発ボード
Freedom Development Board for MCR20A Wireless Transceiver

FRDM-CR20A
評価・開発ボード
Kinetis^® K80 MCU Tower^® System Module

TWR-K80F150M
評価・開発ボード
MCU-LINK-MR Debug Probe with USB-C, Serial and Mobile Robotics Interfaces

MCU-LINK-MR
リファレンス・デザイン
Class D Audio Amplifier Reference Design

CLASS-D-AUDIO-AMPLIFIER

全て表示

3 ハードウェア提供

組み込みボード・ソリューション
uCMK6x IoT SoM

K60/K64 MCU based SoM for secure IoT systems. It includes Mbarx Secure IoT software for connectivity, telemetry, management, OTA firmware updates over Ethernet or Wi-Fi.

By Arcturus Gold パートナー
組み込みボード・ソリューション
uCMK64 VoIP SoM

K64 MCU based SoM for hardened VoIP and IP audio/PA applications. Supports SIP/RTP with audio processing including intelligibility enhancements. SIPxtream + Mbarx secure ...

By Arcturus Gold パートナー

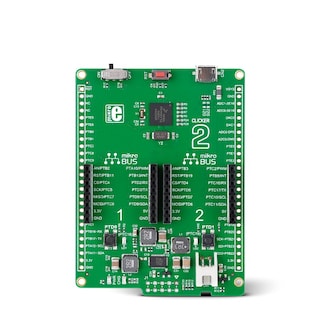

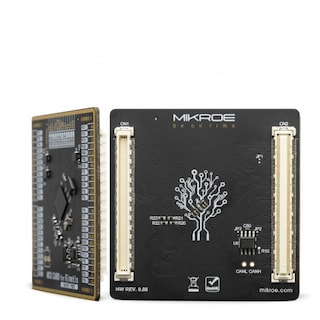

組み込みボード・ソリューション

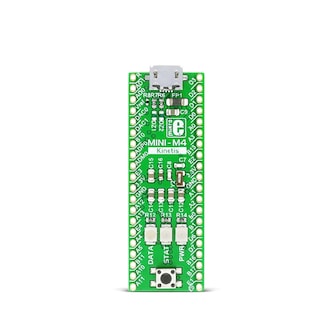

MINI-M4 for Kinetis
