TRK-MPC5634M
アクティブ -
StarterTRAK Development Kit for Qorivva MPC5643M, SCI, CAN and LIN interface, GPIO conncectors.

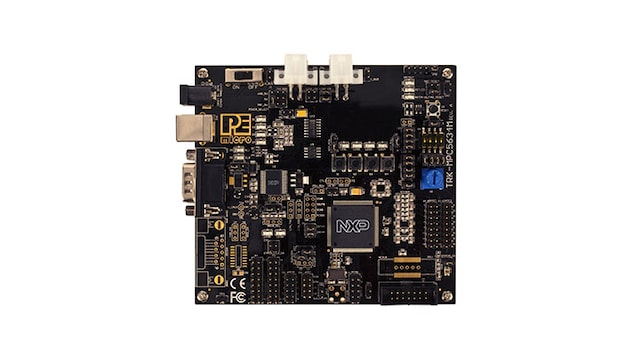

- TRK–MPC5634M Board
- TRK–MPC5634M DVD–ROM (includes CodeWarrior software)
- USB A–to–B Cable
- NXP Warranty Card
MPC563xM StarterTRAK Development Kit
The Qorivva MPC5634M family of 32-bit MCUs are feature-rich devices suitable for powertrain applications such as motorcycles, automotive four-cylinder engine control and hybrid electric motors. These scalable Power Architecture® devices are supported by an enablement ecosystem that includes software drivers, operating systems and configuration code to help you quickly implement your designs.
製品詳細
対応製品
プロセッサ＆マイクロコントローラ
超高信頼性MPC56xx MCU
- MPC563xM: Ultra-Reliable MPC563xM for Automotive and Industrial Engine Management
Features
Microcontroller
- MPC5634M MCU in a 144 LQFP package
Connectivity
- CAN and LIN interface
- SCI and SPI serial communication interface
Debug
- On-board JTAG connection via open source OSBDM circuit using the MPC9S08JM MCU
- MCZ33905S5EK system basis chip with advanced power management and integrated CAN transceiver
User Components
- High-efficiency LEDs
- Analog Interface with potentiometer
