MPC5604P StarterTRAK Development Kit

TRK-MPC5604P アクティブ

画像にカーソルを合わせると拡大表示されます。

StarterTRAK is a low-cost development kit based on the NXP® MPC5604P that enables rapid prototyping and tool reuse.

The NXP MPC560xP ICs are a family of powerful 32-bit MCUs for automotive chassis and safety applications and designs where enhanced motor control capability is required.

製品詳細

対応製品

プロセッサ＆マイクロコントローラ

超高信頼性MPC56xx MCU

  • MPC560xP: Ultra-Reliable MPC560xP MCU for Automotive and Industrial Safety Applications

インターフェース

オートモーティブLINソリューション

  • MC33905: SBC Gen2 with High-Speed CAN and LIN

Features

Microcontroller

  • MPC5604P microcontroller in a 144 LQFP package

Connectivity

  • SCI serial communication interface
  • Connector to BLDC-motorboard
  • CAN and LIN interface

Debug

  • On-board JTAG connection via open source OSBDM circuit using the MPC9S08JM microcontroller
  • MCZ3390S5EK system basis chip with advanced power management and integrated CAN transceiver

User Components

  • Analog interface with potentiometer
  • High-efficiency LEDs

購入オプション

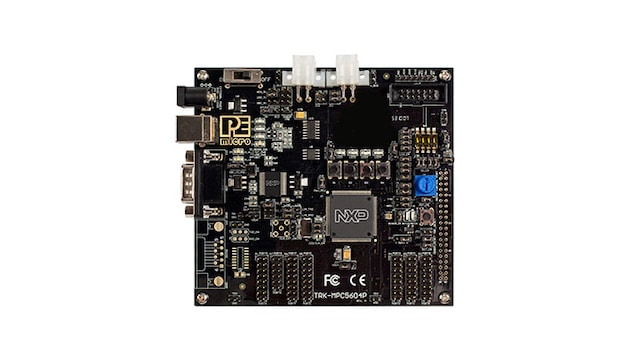

TRK-MPC5604P-Image

クリックして展開

  • TRK-MPC5604P
    アクティブ

  • StarterTRAK Dev Kit for Qorivva MPC5604P, SCI, CAN and LIN interface, connector to BLDC-motorboard.

    • TRK-MPC5604P Board
    • TRK-MPC5604P DVD–ROM (includes CodeWarrior software)
    • USB A–to–B Cable
    • NXP Warranty Card
    • Quick Start Guide
    • User Manual
  • $149.00 USD
  • の数量に対して 1
    • 在庫: 保留中の在庫
カートに入れる
代理店からの注文
