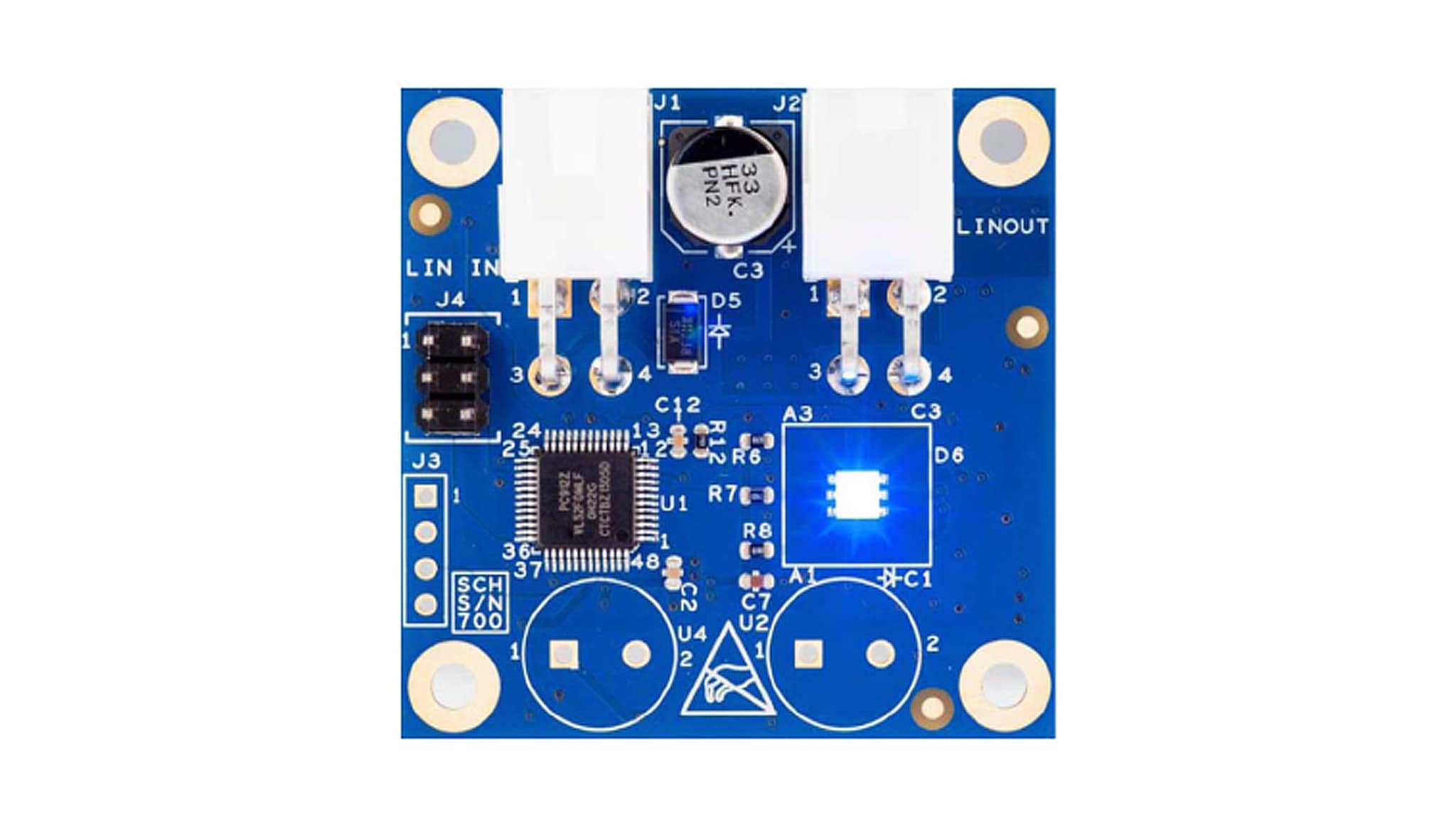

S12ZVL32 RGB LED Lighting Reference Design

S12ZVL32-LED

画像にカーソルを合わせると拡大表示されます。

The S12ZVL32-LED is a reference design board engineered for RGB light-emitting diode (LED) control and diagnostics using local interconnect network (LIN).

Based on the 16-bit S12 MagniV® S12ZVL mixed-signal microcontrollers, the S12ZVL32-LED offers an automotive voltage regulator, a LIN interface, a Vsup module to sense automotive battery voltage and an HVI pin.

ブロック図

RGB LED Lighting

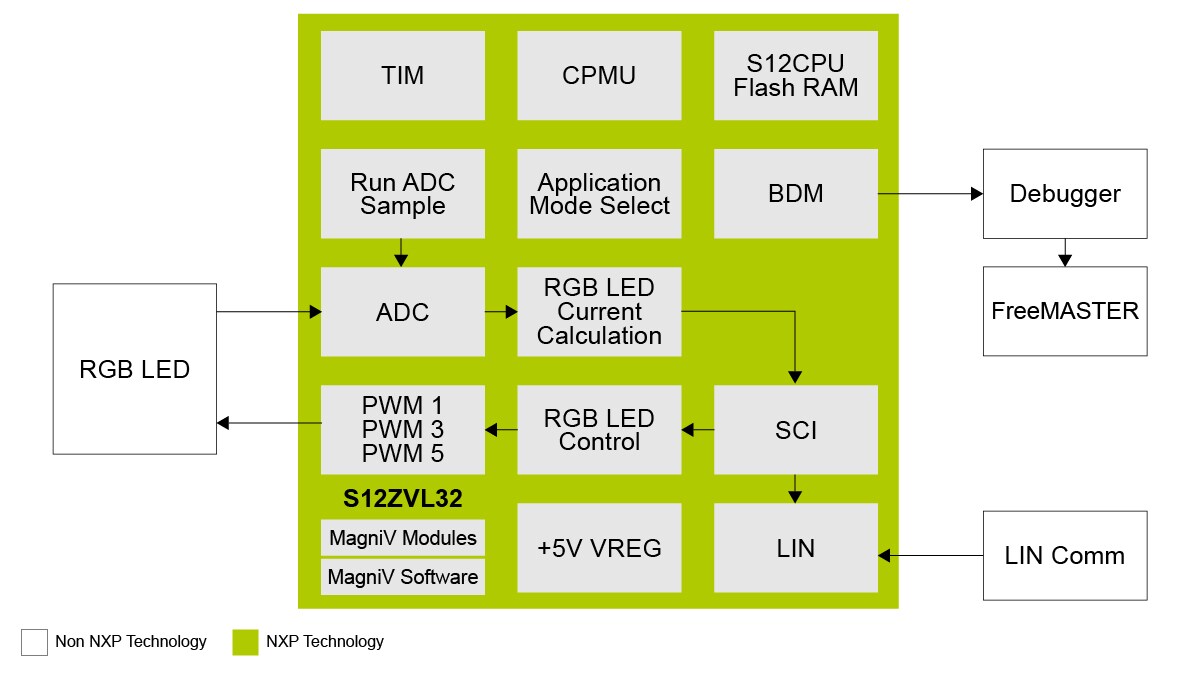

S12ZVL32 RGB LED Lighting - Block Diagram
図を取得する PDF

対応製品

プロセッサ＆マイクロコントローラ

S12 MagniVミックスド・シグナルMCU

  • S12ZVL: S12ZVLミックスド・シグナルMCU（車載/産業用LINアプリケーション向け）

Features

Design Features

  • Small footprint
  • 16-bit PWM to control RGB LED light intensity smoothly

Software

  • ANSI-C based reference software with easy portability
  • The RGB LED controlled by the FreeMASTER tool, including visualization support
  • The RGB LED voltage is recalculated by the AMMCLIB modules to enable LED diagnostics

購入オプション

TRK-S12ZVL-Image

クリックして展開

  • TRK-S12ZVL
    アクティブ

  • TWR-S12ZVL32 board for RGB LED Lighting.

  • $245.00 USD
  • の数量に対して 1
    • 在庫: 保留中の在庫
カートに入れる
