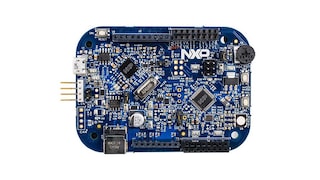

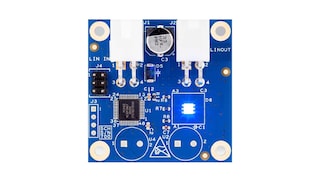

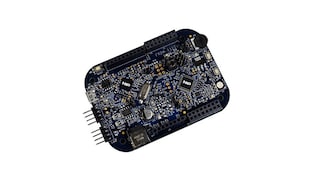

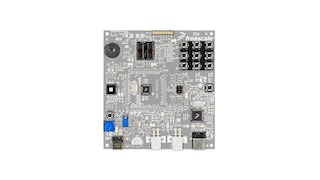

S12ZVLミックスド・シグナルMCU（車載/産業用LINアプリケーション向け）

S12ZVL アクティブ
S12 MagniV Microcontrollers for Automotive Applications

動画の上をクリックすると再生されます。

S12ZVLプラットフォームは、S12 MagniVミックスド・シグナルMCU製品ラインの一部であり、スペースに制約のある車載LINノード向けに低コストで高集積のソリューションを提供します。8～128Kのフラッシュ・メモリ・サイズで、プラットフォームの標準化に向けた拡張性を確保しています。

S12ZVLは高性能のS12Zコアを12 V～5 Vの電圧レギュレータおよびLIN物理層トランシーバと統合し、センサ・インターフェース、アクチュエータ、スイッチ・パネル、周辺照明などの車載および産業用アプリケーションを実現します。

ブロック図

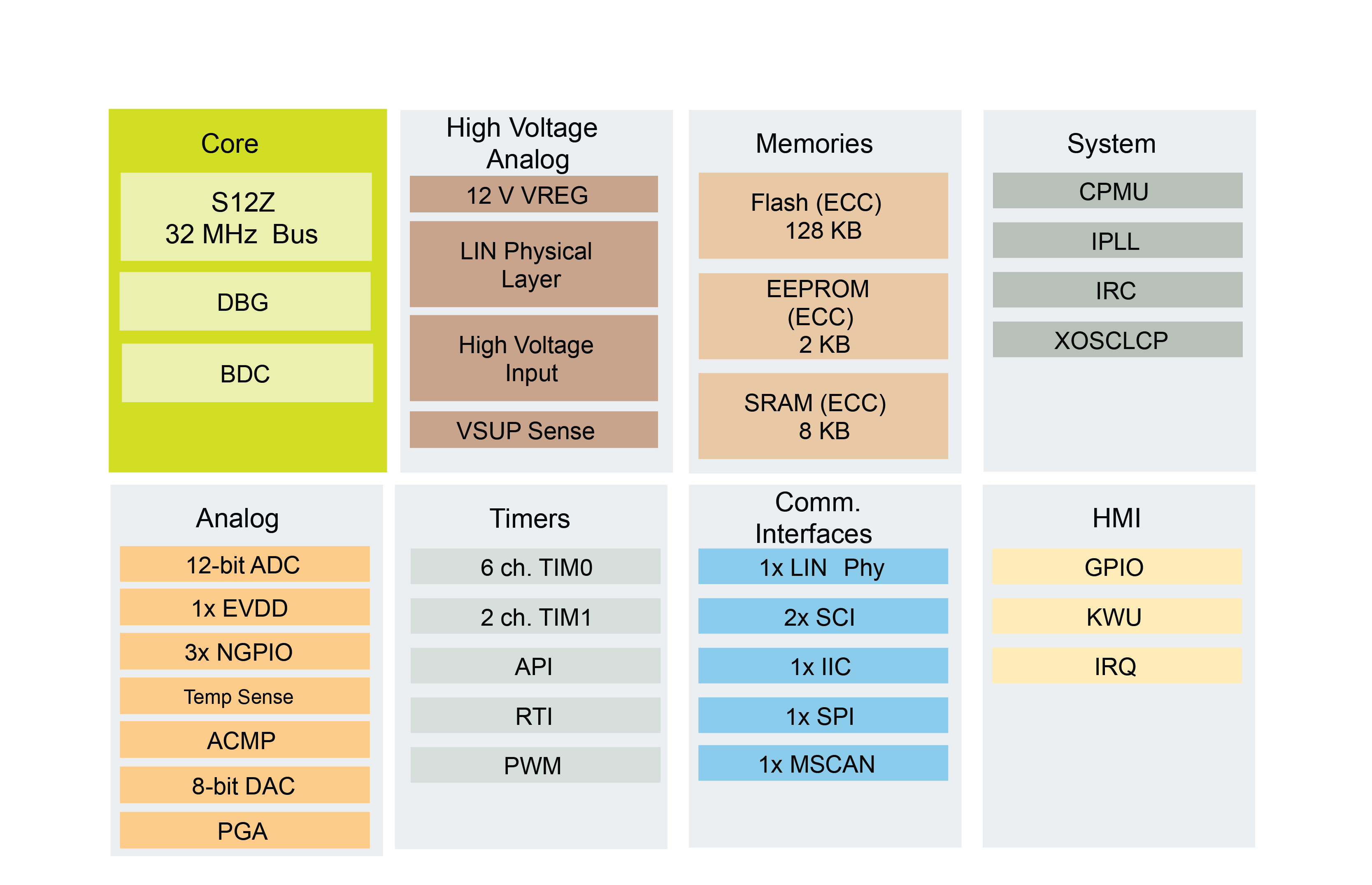

LINアプリケーション向けS12 MagniVミックスド・シグナルMCUのブロック図

S12 MagniV Mixed-Signal MCU for LIN Applications
図を取得する PDF

特長

  • S12Zコア - 32 MHzのバス・スピード
  • 最大128 KBのフラッシュ（ECC付き）
  • 高温（周囲温度最大150°C）
  • 最大2 KBのEEPROM（ECC付き）
  • 最大8 KBのRAM（ECC付き）
  • アナログ・コンパレータおよびDAC
  • PGA
  • 12 VのVregによるデバイス電源 + 外部補償 - 合計70 mA（外部バラスト使用で170 mA）
  • LIN物理層
  • 1.3%の精度にトリミングされたオンチップRC発振器、LINに外付け水晶は不要

購入/パラメータ

1-10 の 12 結果

マッチしていない 0 NRND

パーツ

説明を表示

注文

コンピュータ支援設計 モデル

状況

パッケージタイプ

パッケージ端子数

標準価格

コア・タイプ

動作周波数[最大](MHz)

Flash (kB)

RAM (kB)

EEPROM (KB)

その他アナログ

PHY

汎用I/O

CAN

Number of LIN Channels

SCI

SPI

I2C

16-bit PWM

S912ZVLA12F0MFM

アクティブ

HVQFN32

32

1K @ US$2.98

S12Z

32

—

8

2

DAC, PGA

CAN, LIN

19

1

1

—

—

—

—

S912ZVLA12F0MLC

アクティブ

LQFP32

32

1K @ US$3.36

S12Z

32

—

8

2

DAC, PGA

CAN, LIN

19

1

1

—

—

—

—

S912ZVLA12F0MLF

アクティブ

LQFP48

48

1K @ US$3.50

S12Z

32

—

8

2

DAC, PGA

CAN, LIN

34

1

1

—

—

—

—

S912ZVLA12F0WLF

アクティブ

LQFP48

48

1K @ US$2.65

S12Z

32

—

8

2

DAC, PGA

CAN, LIN

34

1

1

—

—

—

—

S912ZVLA64F0MLF

アクティブ

LQFP48

48

1K @ US$3.02

S12Z

32

—

4

1

DAC, PGA

CAN, LIN

34

1

1

—

—

—

—

S9S12ZVL16F0CLC

アクティブ

LQFP32

32

1K @ US$1.77

S12Z

32

16

1

0.13

—

LIN

19

—

1

2

1

1

1

S9S12ZVL16F0VLC

アクティブ

LQFP32

32

1K @ US$1.85

S12Z

32

—

1

0.13

—

CAN, LIN

19

1

1

2

1

1

1

S9S12ZVL32F0MLC

アクティブ

LQFP32

32

1K @ US$2.16

S12Z

32

32

1

0.13

—

LIN

19

—

1

2

1

1

1

S9S12ZVL32F0MLF

アクティブ

LQFP48

48

1K @ US$2.31

S12Z

32

32

1

0.13

—

LIN

34

—

1

2

1

1

1

S9S12ZVL32F0VLF

アクティブ

LQFP48

48

1K @ US$2.20

S12Z

32

32

1

0.13

—

LIN

34

—

1

2

1

1

1
