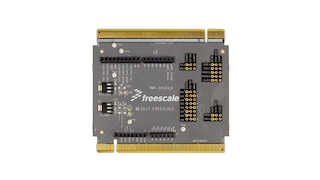

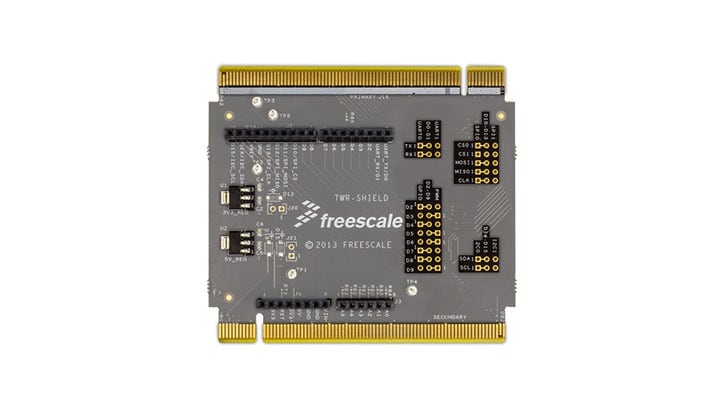

Shield Adapter Module for the Tower System
The TWR-SHIELD shield adapter module allows commercially available, easy-to-use Arduino® shields to be incorporated into the Tower® System. This module allows you to leverage the popular and easy-to-use open source electronics platform (Arduino®) within the Tower System development platform. Simply affix the shield of choice onto the TWR-SHIELD module, assemble as part of the Tower System with a processor module and get started designing. It's that easy.
製品詳細
Features
- Arduino® Shield (R3 Compatible) headers
- Default signal configuration for ease of integration with the Tower® System
- Flexible advanced signal configuration options and signal access
Power Management
- On-board power regulation (3.3 V and 5 V)
- Recommended Input Voltage: 7–12 V
- Maximum Input Voltage Range: 6–20 V
