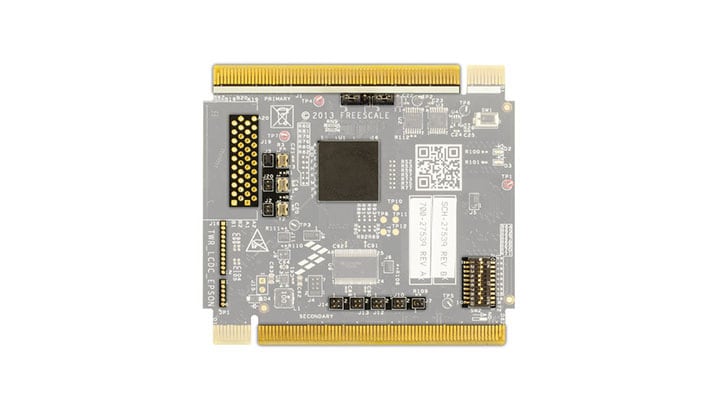

Epson Display Controller Tower System Module
The NXP® TWR-LCDC-EPSON Epson Display Controller Module enables communication with RGB panels and is designed for use with Tower® System MCU/MPU modules that do not include on-board embedded LCD display controllers. Simply assemble it within your Tower System and the TWR-LCD-RGB graphical display module and your application is display-enabled. The TWR-LCDC-EPSON module can also be used to enable a second screen.
If you download an evaluation edition version of PEG Software, you can further request a demo and pre-compiled library for enabling for Graphical User Interface (GUI) development in your designs.
製品詳細
対応製品
プロセッサ＆マイクロコントローラ
K6xイーサネット
- K60_100: Kinetis® K60-100 MHz, Mixed-Signal Integration Microcontrollers based on Arm® Cortex®-M4 Core
Features
Microcontroller
- Epson S1D13513 display controller
Memory
- On-board SDRAM
Connectivity
- Interfaces with a Tower® System controller module via the parallel external memory interface (EBI)
- Interfaces directly with the TWR-LCD-RGB
- Optional interfaces for externally connected RGB or LVDS display panels
- Selectable SPI and I²C pass-thru interfaces for LCD/touch configurations
Support
- PEG support drivers
