Three Phase Field Effect Transistor Pre-driver

MC34937 アクティブ

画像にカーソルを合わせると拡大表示されます。

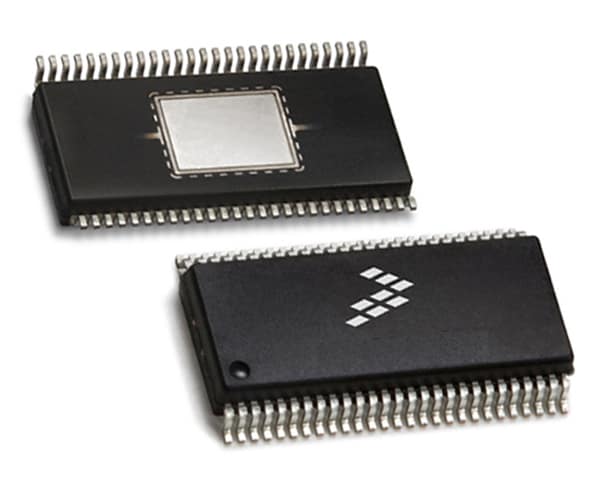

The NXP® MC34937A is a field effect transistor (FET) pre-driver designed for three-phase motor control and similar applications.

  • The integrated circuit (IC) uses SMARTMOS® technology
  • The IC contains three high side FET pre-drivers and three low side FET pre-drivers
  • Three external bootstrap capacitors provide gate charge to the high side FETs
  • The IC interfaces to a MCU via six direct input control signals, a SPI port for device setup and fault detection, an asynchronous reset, an interrupt and two enable signals
  • Both 5 and 3 V logic level inputs are accepted and 5 V logic level outputs are provided

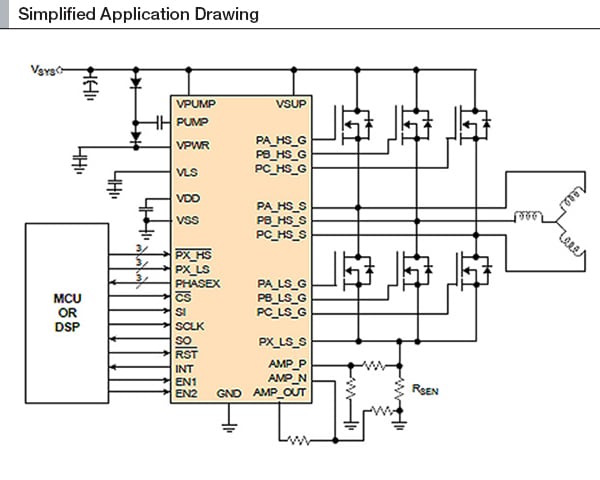

ブロック図

NXP MC34937 Internal Block Diagram

NXP MC34937 Internal Block Diagram
図を取得する PDF

Features

System Features

  • Extended supply voltage operating range: 6 to 58 V
  • Wide dead time range (50 ns to 12 μs) programmable via the SPI port
  • External FET gate drive capability of >1.0 A with protection
  • Charge pump ensures sufficient external FET drive at low supply voltages
  • Device protection against reverse charge-injection from CGD and CGS of external FETS
  • Integrated overcurrent, desaturation, and phase fault-detection
  • Immunity against positive or negative transient voltage spikes on the gate driver
  • Current shoot-through protection built into dead time control
  • Supports direct 3.3 V and 5 V logic interface to MCUs
  • Integrated current sensing amplifier
  • Device configuration and diagnostics through the SPI
  • Parallel, SPI interface and input control
  • Load current(IL) 1 A (Typ)
  • 6 Channels
  • Drain-to-Source on resistance 0, 5500 mOhm RDS(ON) (Typ)
