±2g/±4g/±8g Low-g 14ビット・デジタル加速度センサ

MMA8451Q 生産終了 (EOL)

画像にカーソルを合わせると拡大表示されます。

NXP® MMA8451Qは、低消費電力、分解能14ビットの静電容量式MEMS 3軸加速度センサで、次のような特長を備えています。

  • さまざまな機能を搭載しており、プログラム可能な2本の割込みピンで柔軟に設定することが可能
  • 割込み機能によりホスト・プロセッサはデータ・ポーリングを常時行う必要がなくなるため、システム全体の消費電力が低減
  • ローパス・フィルタ処理されたデータとハイパス・フィルタ処理されたデータのいずれにもアクセスできるため、衝撃検知や素早い動きの検知に必要となるデータ解析を最小限に抑えることが可能
  • 搭載の機能を自在に組み合わせてウェイクアップ割込み信号を生成するよう設定できるため、イベントのモニタリングが可能となるほか、非アクティブ状態が続く間、低消費電力モードを維持することが可能

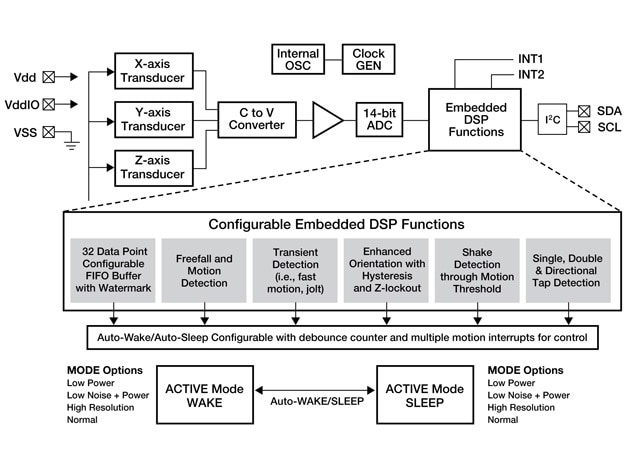

ブロック図

MMA8452Q加速度センサのブロック図

MMA8452Q Acceleration Sensor Block Diagram
図を取得する PDF

特長

主な特長

  • 供給電圧：1.95～3.6 V
  • インターフェース電圧：1.6～3.6 V
  • 動的に選択可能な加速度フルスケール・レンジ：±2g/±4g/±8g
  • 出力データ・レート (ODR)：1.56～800 Hz
  • 低ノイズ：99 μg/√Hz
  • 14/8ビット・デジタル出力
  • I²Cデジタル出力インターフェース（最大速度2.25 MHz、4.7 kΩプルアップ時）
  • プログラム可能な2本の割込みピンによる7種類の割込み設定
  • プログラム可能ヒステリシス付き方向検知（垂直/水平）
  • ODRの自動変更による自動ウェイク/スリープ
  • サンプリング用32 FIFOバッファ
  • FIFOバッファを介してハイパス・フィルタ・データをサンプルごとに使用可能
  • セルフテスト
  • RoHS準拠
  • 消費電流：6～165 μA

モーション検知用に3チャネル内蔵

  • 自由落下検知またはモーション検知：1チャネル
  • パルス検知：1チャネル
  • 衝撃検知：1チャネル
