MPC8640D Integrated Dual-Core Processor
NXP’s MPC8640D dual-core processor is engineered to deliver breakthrough performance, connectivity and integration for embedded networking, telecom, aerospace and defense, storage, industrial and pervasive computing applications.
The MPC8640D’s strength is its integration of the high-performance e600 core built on Power Architecture® technology and combined with the PowerQUICC® system-on-chip (SoC) platform. With dual-core performance and integrated northbridge and southbridge functionality, this single chip replaces what could take up to four chips using other solutions. This translates into smaller boards or higher processing density. Additionally, all core-to-peripheral connections are internal in an integrated device, so the board designer is not exposed to the difficulties of laying out high-speed parallel buses.
製品詳細

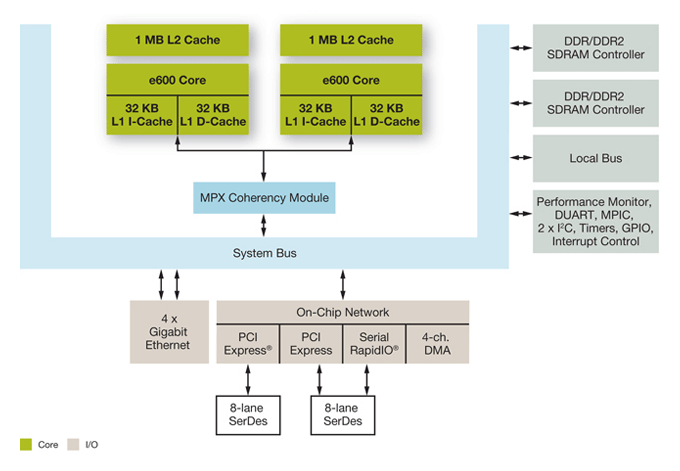

ブロック図
Features
- CPU speeds - 1 GHz/1.25 GHz
- Typical power - 14 watts/21 watts
- MPX bus (integrated) - Up to 500 Mhz
- L1 cache (integrated) - 32 KB instruction, 32 KB data per core with parity protection
- L2 cache (integrated) - 1 MB per core with optional ECC
- The MPC8640D is included in NXP’s product longevity program, with assured supply for a minimum of 10 years after launch
購入/パラメータ
|
|
|
|
|
|
|
|---|---|---|---|---|---|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
ドキュメント
クイック・リファレンス ドキュメンテーションの種類.
ソフトウェア
クイック・リファレンス ソフトウェア・タイプ.
3 ソフトウェア・ファイル
-
BSPとデバイスドライバ
NXP MPC8641 - HDD Ghost Image
-
BSPとデバイスドライバ
NXP MPC8641 - HDD Recovery Image
-
BSPとデバイスドライバ
Linux BSP for NXP MPC8641
