Host Processor

MPC7410 製造中止
  • このページでは、新規設計を推奨しない製品に関する情報を掲載しています。

The MPC7410 Host Processor is a high-performance, low-power, 32-bit processor built on Power Architecture technology with a full 128-bit implementation of Our AltiVec®™ technology. This creates a microprocessor ideal for leading-edge computing, embedded network control, and signal processing applications. The MPC7410 offers the high-bandwidth MPX bus with minimized signal setup times and reduced idle cycles to increase maximum operating frequency to over 100 MHz, in addition to increased address and data bus bandwidth. To maintain compatibility for existing designs, the MPC7410 also supports the 60x bus protocol. MPC7410 microprocessors offer single-cycle double precision floating-point performance, full symmetric multi-procesing (SMP) capabilities, and support for up to 2MB of backside L2 cache. While the MPC7410 is software-compatible with existing MPC603e, MPC740, and MPC750 microprocessors, to utilize the full potential of the AltiVec technology changes to existing source code is required.

製品詳細

ブロック図

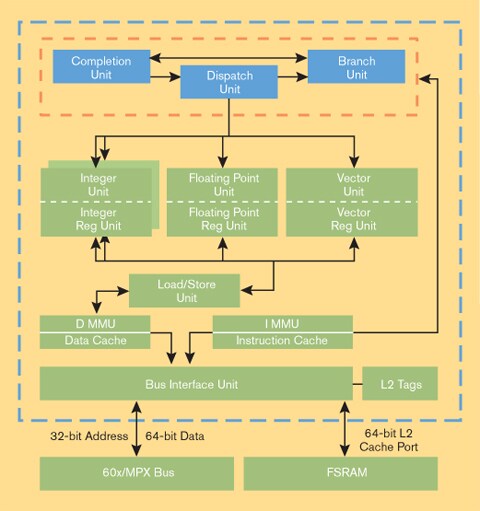

MPC7410 Block Diagram

MPC7410 Block Diagram
図を取得する PDF

Features

  • Two integer units and Double-precision floating-point unit
  • Vector permute unit
  • Vector arithmetic logic unit
  • Load/store unit and System unit
  • Branch processing unit
  • Meets the computational demands of networking infrastructure such as echo cancellation equipment, and basestation processing.
  • Enables faster, more secure encryption methods optimized for the SIMD processing model.
  • Provides compelling performance for multimedia-oriented desktop computers, desktop publishing, and digital video processing.
  • Enables real-time processing of the most demanding data streams (MPEG®-2 encode, continuous speech recognition, real-time high-resolution 3D memory for additional caching bus leaders, such as DMA devices.)
