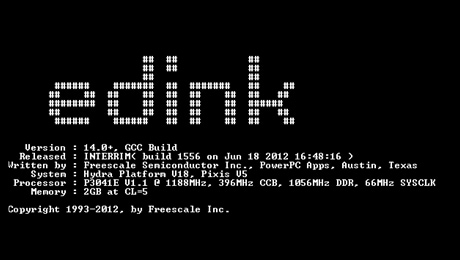

DINK32 Debug Monitor
DINK32 is a flexible software tool enabling initialization, evaluation, and debugging of selected legacy Power Architecture 32-bit microprocessors. Because this family of microprocessors spans a wide market range, DINK32 has to be extensible and portable, as well as being specific enough to be useful for a wide variety of applications. It is designed to be both a hardware and software debugging tool. DINK32 was written in ANSI C and built with modular routines around a central core. Only a few necessary functions were written in Power Architecture assembly.
For a complete list of products supported by DINK32, see the Supported Devices section below.
ソフトウェア詳細
Features
- Modification and display of general purpose, floating point, AltiVec®™, and special purpose Registers
- Assembly and disassembly of Power Architecture instructions for modification and display of code
- Modification, display, and movement of system memory
- A simplified breakpoint command that allows setting, display, and removal of breakpoints
- Single-step trace and continued execution from a specified address
- Automatic decompression of compressed s-record files while downloading
対応製品
- MPC106: PCI Bridge/Memory Controller
- MPC107: PCI Bridge/Memory Controller
- MPC7410: Host Processor
- MPC7447: Host Processor
- MPC7447A: Host Processor
- MPC7448: RISC Microprocessor
- MPC745: Host Processor
- MPC755: MPC755 and MPC745 Host Processors
- P4080: QorIQ® P4080/P4040/P4081 Multicore Communications Processors
