Automotive-Qualified Embedded Secure Element (SE)
Request an NCJ38A Secure Element

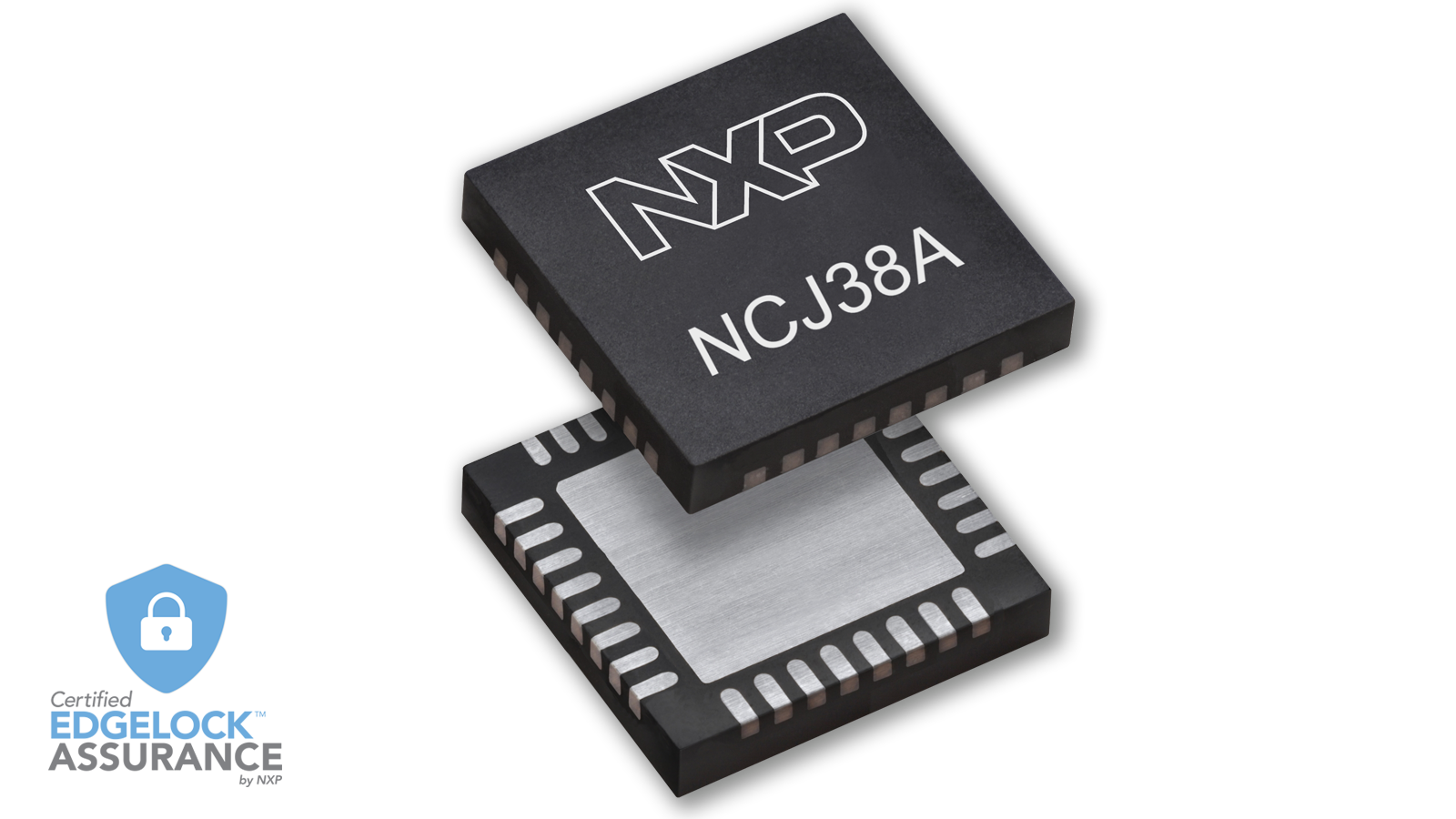

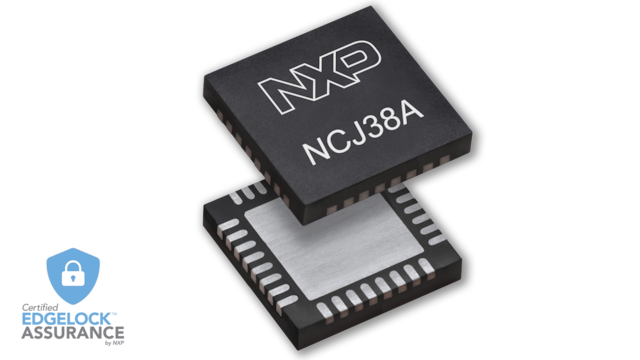

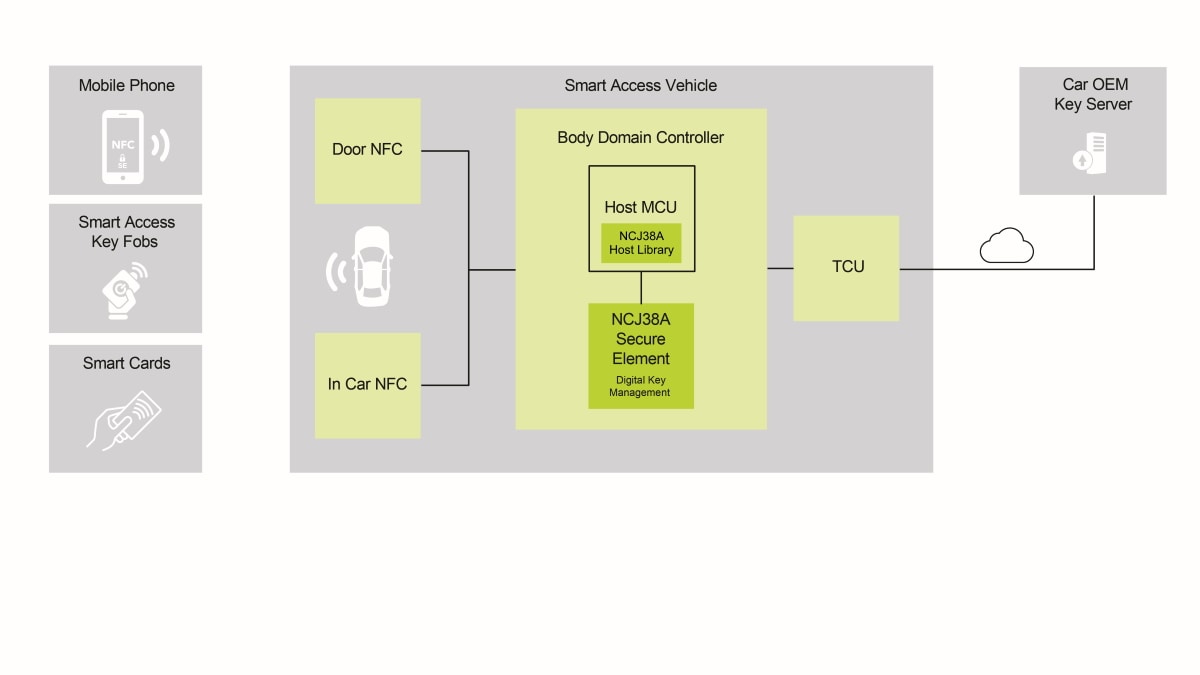

The NCJ38A family is an Automotive-qualified secure microcontroller platform with advanced cryptographic accelerators and physical and electrical attack resistance. It supports a broad spectrum of M2M authentication means, cryptographic key and data storage, making it ideal for smart car access applications. The NCJ38A SE stores, authenticates and shares digital keys in a secure, privacy-preserving way.
The NCJ38A family complies with AEC-Q100 qualification requirements. And together with the NCF3320 and NCF3340 NFC chipsets, we offer a reference platform that follows Car Connectivity Consortium (CCC) Revision 2 standardization.
製品詳細
Features
General Features
- NXP Processor with Arm® SecureCore® SC300 Technology
- Up to 750 kB User Memory
Interfaces
- SPI follower interface
- I²C-Bus target interface
Cryptographic Hardware Coprocessors
- High-speed public-key coprocessor (PKC) supporting major public key cryptography systems such as RSA, ECC and corresponding schemes
- High-speed Triple-DES and AES coprocessors
- Random number generator in hardware AIS-31 compliant
- Two high-speed cyclical redundancy check engines
Certified EdgeLock® Assurance
- The NCJ38A, part of the Certified EdgeLock Assurance program, is designed to meet industry standards and follows NXP's security-by-design approach. It has been certified by an independent lab.
Certifications and Package
- AEC-Q100 Grade 2 qualified
- Hardware certification: Common Criteria EAL 5+
- HVQFN32 package
Request an NCJ38A Secure Element
This package can be purchased through your local NXP Distributor/Reseller. For a direct purchase:
Request an NCJ38A Secure Element関連製品
Automotive Qualified NFC Controller with NCI Interface

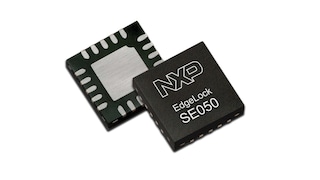

EdgeLock® SE050：Plug & Trustセキュア・エレメント・ファミリ – 柔軟性に優れた、IoT向けの高度なセキュリティ
ドキュメント
クイック・リファレンス ドキュメンテーションの種類.
2 ドキュメント
コンパクトリスト
パッケージ情報 (1)
ファクト・シート (1)
-
NCJ38A Automotive-Qualified Secure Element[NCJ38ASECELFS]
