QorIQ® P1023/17 Low-End Single- and Dual-Core Communications Processors with Data Path
The P1023 and P1017 processors offer the value of integrated high-performance data path offload for networking protocols and dual e500 Power Architecture® cores for application software. The P1023 and P1017 are ideally suited for high-performance enterprise WLAN, fixed routers and security gateway applications. The P1023 device supports a 400–800 MHz performance range, along with advanced security and a rich set of interfaces—all delivered on 45 nm technology for low-power implementation.
The P1023 processor includes a performance-optimized implementation of the QorIQ® data path acceleration architecture (DPAA). This architecture provides the infrastructure to support simplified sharing of networking interfaces and accelerators by multiple CPU cores. The DPAA significantly reduces software overhead associated with high touch packet forwarding operations. Examples of the types of packet processing services this architecture is optimized to support include traditional routing and bridging, firewall, VPN termination for IPsec and MACsec (a standardized form of Ethernet encapsulation that can be used to provide confidentiality).
製品詳細

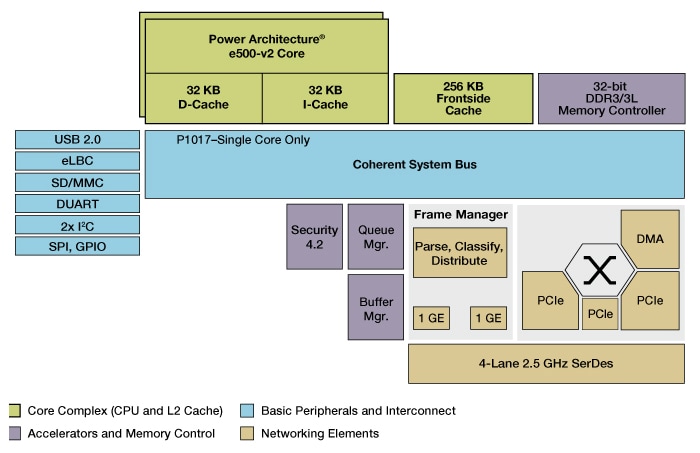

ブロック図
Features
CORE COMPLEX
- Dual (P1023) or single (P1017) high-performance
- Power Architecture e500v2 cores
- Dual-core 500MHz or single-core up to 800MHz
- 32 KB instruction and data L1 caches
- Double-precision floating-point support
- 256 KB L2 cache with ECC.
- Also configurable as SRAM and stashing memory
NETWORKING ELEMENTS
- High-speed interfaces supporting various multiplexing options:
- Four SerDes up to 3.125 GHz multiplexed across controllers
- Two 10/100/1000 Mbps three-speed Ethernet controllers (TSECs)
- Three PCI Express® interfaces
- Two SGMII interfaces
ACCELERATORS AND MEMORY CONTROL
- 32-bit DDR3/DDR3L SDRAM memory controller
- DPAA incorporating acceleration for the following functions:
- Packet parsing, classification and distribution queue management for scheduling, packet sequencing and congestion management hardware buffer management for buffer allocation and de-allocation
- Integrated security engine
- Protocol support includes single pass encryption and message authentication for common security protocols (IPsec, SSL, SRTP, DTLS), XOR acceleration
BASIC PERIPHERALS AND INTERCONNECT
- High-speed USB controller (USB 2.0) host and device support
- ULPI interface to PHY
- eLBC, Dual I²C, DUART, PIC, DMA, GPIO x16
ADDITIONAL FEATURES
- Support for a hardware MACSEC enabled interface
- Support for IEEE® 1588
PACKAGE
- 457-pin temperature-enhanced plastic BGA (TEPBGA1)
- Standard and extended temp support: -40C to 105C Tj
関連製品

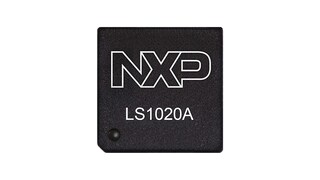

Layerscape® 1020A and 1022A Dual-Core Processors
