GreenChip Synchronous Rectifier Controller

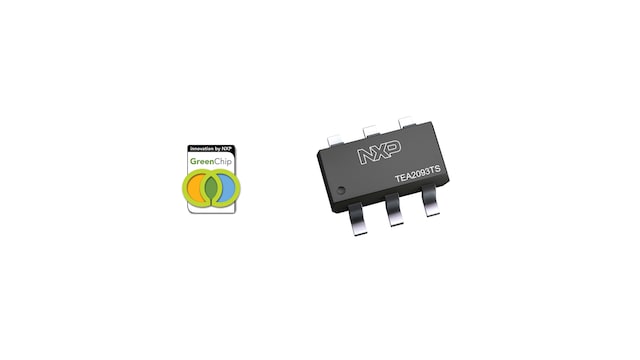

The TEA2093TS is a member of a new generation of synchronous rectifier (SR) controller ICs for switched-mode power supplies. It includes an adaptive gate drive for maximum efficiency at any load.
This device is a dedicated controller IC for synchronous rectification on the secondary side of asymmetrical half-bridge flyback and standard flyback converters. It incorporates the sensing stage and driver stage for driving the SR MOSFET, which is rectifying the output of the secondary transformer winding.
The TEA2093 can generate its own supply voltage for battery-charging applications with low-output voltage or for applications with high-side rectification. The TEA2093TS is fabricated in a silicon-on-insulator (SOI) process.
製品詳細
Features
General Features
- Supply voltage generation for battery-charging applications with low-output voltage or for applications with high-side rectification
- Silicon-on-insulator (SOI) process
Efficiency Features
- Adaptive gate drive for maximum efficiency at any load
- Typical supply current in no-load operation below 200 μA
Application Features
- Operates in a wide output voltage range down to 0 V
- Drain sense pin capable of handling input voltages up to 120 V
- Self-supplying for operation with low-output voltage
- Self-supplying for high-side rectification without the use of an auxiliary winding
- Operates with standard and logic level SR MOSFETs
- Supports USB BC, USB PD and quick charge applications
- TSOP6 package
Control Features
- Adaptive gate drive for fast turn-off at the end of conduction
- Undervoltage lockout (UVLO) with active gate pull-down
NXP GreenChip
- This product is part of the NXP GreenChip portfolio, this program optimizes for energy efficiency in mobile and computing applications, specializing in high-power density, safety and reliability.
