GreenChip Dual Synchronous Rectifier (SR) Controller
The TEA1995T is the first product of a new generation of synchronous rectifier (SR) controller ICs for switched mode power supplies with adaptive gate drives, providing maximum efficiency at any load.
The TEA1995T is a dedicated controller IC for synchronous rectification on the secondary side of resonant converters. This synchronous rectifier controller has a vast supply voltage range (4.5-38V) and comes equipped with two driver stages for the SR MOSFETs, which rectify the outputs of the secondary transformer windings. The two gate driver stages also have their own sensing inputs and operate independently of each other.
The TEA1995T is intended for resonant power supplies. In such applications, this SR controller can drive two external synchronous rectifier MOSFETs that replace diodes for the rectification of the voltages on the two secondary windings of the transformer.
Fabricated in a Silicon On Insulator (SOI) process, the TEA1995T can be used in all power supplies needing high-efficiency, including the power supplies for PCs, adapters, TVs, and servers. Additionally, consumers can use the TEA1995T in multi-output flyback converters with the SR MOSFET placed at the low side.
製品詳細
Features
Efficiency features
- Adaptive gate drive for maximum efficiency at any load
- Supply current in no-load operation below 200 μA
Application features
- Very wide supply voltage range from 4.5 V to 38 V
- Dual Synchronous Rectification for LLC resonant in SO8 package
- Synchronous Rectification for multi-output flyback converters
- Supports 5V operation with logic level SR MOSFETs
- Differential inputs for sensing the drain and source voltage of each SR MOSFET
Control features
- SR control without minimum on-time
- Adaptive gate drive for fast turn-off at the end of the conduction
- Under voltage lockout with active gate pull-down
NXP GreenChip
- This product is part of the NXP GreenChip portfolio, this program optimizes for energy efficiency in mobile and computing applications, specializing in high-power density, safety and reliability.
関連製品
PFC Controller
購入/パラメータ
| | | | | |
|---|---|---|---|---|---|
| | | | | |
| | | | | |
| | | | | |
| | | | | |
| | | | | |
| | | | | |
| | | | | |
| | | | | |
| | | | | |
| | | | | |
ドキュメント
クイック・リファレンス ドキュメンテーションの種類.
9 ドキュメント
コンパクトリスト
アプリケーション・ノート (1)
-
TEA19161 and TEA19162 controller ICs[AN11801]
カタログ (1)
-
NXP GreenChip ICs TEA1916 and TEA1995[75017644]
サポート情報 (1)
-
Footprint for reflow soldering[SO-SOJ-REFLOW]
データ・シート (1)
パッケージ情報 (1)
ファクト・シート (1)
-
NXP TEA2016 LLC Resonant Converter Design Tool Fact Sheet[LLCRESCONDTFS]
ユーザ・ガイド (3)
10 ドキュメント
コンパクトリスト
アプリケーション・ノート (1)
-
TEA19161 and TEA19162 controller ICs[AN11801]
カタログ (1)
-
NXP GreenChip ICs TEA1916 and TEA1995[75017644]
サポート情報 (1)
-
Footprint for reflow soldering[SO-SOJ-REFLOW]
データ・シート (1)
パッケージ情報 (1)
ファクト・シート (1)
-
NXP TEA2016 LLC Resonant Converter Design Tool Fact Sheet[LLCRESCONDTFS]
ユーザ・ガイド (3)
設計・リソース
ハードウェア
クイック・リファレンス
ボードタイプ.
5 ハードウェア提供
-

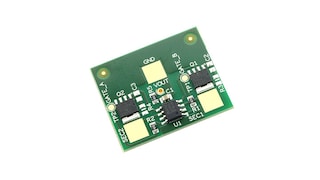

評価・開発ボード240 W Computing Power Supply
アクティブ -

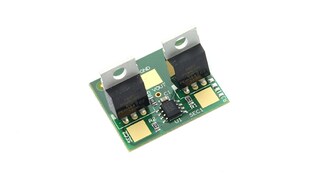

評価・開発ボードTEA1995 Add-On Board
