TEA2016AAT Development Programming Board and Samples

TEA2016DB1561 製造開始前

画像にカーソルを合わせると拡大表示されます。

The TEA2016 is a digital configurable LLC and PFC combo controller for high efficiency resonant power supplies. It includes both the LLC controller functionality and PFC controller operating in DCM and QR mode. The TEA2016AAT comes in a low profile and narrow body-width SO16 package.

The TEA2016AAT digital architecture is based on a high-speed configurable hardware state machine ensuring very reliable real-time performance. During the power supply development, many operation and protection settings of the LLC and PFC controller can be adjusted by loading new settings into the device to meet specific application requirements.

対応製品

パワーマネージメント

PFC内蔵AC-DCコントローラ

  • TEA2016: 共振電源用デジタルLLC＆PFCコンボ・コントローラ

Features

TEA2016 features

  • Several parameters can easily be configured, like:
    • Operating frequencies to be outside the audible area at all operating modes
    • Soft start and soft stop in burst mode, reducing the audible noise
    • Accurate transition levels between operation modes (high-power mode/low-power mode/burst mode)
  • Independently configurable levels and timers
  • All protections can independently be set to latch, safe restart, or latched after several attempts to restart (Patent 82096505US01)

RDK01DB1561 content

  • 50 pieces TEA2016AATdev IC samples
  • 1 TEA2016 programming board

TEA2016AAT dev

  • The RDK01DB1561 kit contains the special development version of the TEA2016AAT IC
  • Connections to the IC’s second I²C interface are provided on the high-voltage spacer pins 7 and 12, which are normally not connected (High Voltage Spacer pin)
  • This enables easy modification of parameter settings while the IC is operating: operation can be changed “on the fly”

TEA2016DB1561 programming board

  • This board can be used to get familiar with programming TEA2016AATdev samples. A sample can be soldered to the board for this purpose
  • Adding an IC socket (not included) will make the TEA2016DB1561 programming board suitable for programming small series of ICs

購入オプション

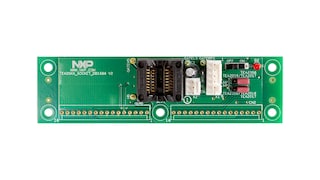

TEA2016DB1561-Image

クリックして展開

  • TEA2016DB1561

  • TEA2016AAT Development Programming Board and Samples.

  • Programming board

    RDK01DB1561-Image

    クリックして展開

    • RDK01DB1561
      アクティブ

    • TEA2016AAT Development Programming Board and Samples.

    • $57.50 USD
    • の数量に対して 1
      • 在庫: 在庫あり
      • 在庫: 26
      • 配送: 通常 1～2営業日以内に配送
    カートに入れる
    代理店からの注文
    N true 0 TSPTEA2016DB1561ja 7 アプリケーション・ノート Application Note t789 1 ファクト・シート Fact Sheet t523 2 ユーザ・ガイド User Guide t792 4 ja ja 4 1 1 English The TEA2016DB1514 USB-I2C interface board is a development tool to enable working with theTEA2016 setting by use of a computer. 1580409962826709534761 TSP 1.9 MB Moderated Software Licensing For Download Without FAE None documents Y Extended 1580409962826709534761 /secured/assets/documents/en/user-guide/UM11235.pdf 1881482 /secured/assets/documents/en/user-guide/UM11235.pdf UM11235 Y N 2020-01-30 TEA2016DB1514 USB to I2C hardware interface user manual /webapp/Download?colCode=UM11235&appType=moderatedWithoutFAE&docLang=en /secured/assets/documents/en/user-guide/UM11235.pdf User Guide N 132339537837198660 2023-04-24 pdf Y en Jun 27, 2019 User Guide t792 ユーザ・ガイド User Guide Y N TEA2016DB1514 USB to I2C hardware interface user manual 2 English This page will help guide you through the process of learning about your RDK01DB1561 board. 1606518471306746709870 Y 1606518471306746709870 GS-RDK01DB1561 GS-RDK01DB1561 /document/guide/getting-started-with-the-rdk01db1561:GS-RDK01DB1561 HTML 0 2020-11-27 GS-RDK01DB1561 TSP User Guide 132339537837198660 2025-01-07 en User Guide t792 ユーザ・ガイド User Guide Y Getting Started with the RDK01DB1561 3 1 English This quick start guide describes how to get started with the RDK01DB1561 programming kit 1606519461385736152566 TSP 624.3 KB Registration without Disclaimer None documents Y Extended 1606519461385736152566 /secured/assets/documents/en/user-guide/UM11522.pdf 624301 /secured/assets/documents/en/user-guide/UM11522.pdf UM11522 Y N 2020-11-27 RDK01DB1561 programming kit - Quick start guide /webapp/Download?colCode=UM11522&docLang=en /secured/assets/documents/en/user-guide/UM11522.pdf User Guide N 132339537837198660 2022-12-07 pdf Y en Nov 27, 2020 User Guide t792 ユーザ・ガイド User Guide Y N RDK01DB1561 programming kit - Quick start guide 4 1.05 English The Ringo TEA2016 development software with GUI is a development tool that enables working with the TEA2016 settings using a computer and the TEA2016DB1514 USB I2C interface board. 1580409961526718973206 TSP 8.9 MB Moderated Software Licensing For Download Without FAE None documents Y Extended 1580409961526718973206 /secured/assets/documents/en/user-guide/UM11219.pdf 8943473 /secured/assets/documents/en/user-guide/UM11219.pdf UM11219 Y N 2020-01-30 Ringo TEA2016 development software with GUI user manual /webapp/Download?colCode=UM11219&appType=moderatedWithoutFAE&docLang=en /secured/assets/documents/en/user-guide/UM11219.pdf User Guide N 132339537837198660 2023-04-24 pdf Y en Jul 30, 2019 User Guide t792 ユーザ・ガイド User Guide Y N Ringo TEA2016 development software with GUI user manual false ja アプリケーション・ノート Application Note 1 5 1 Chinese TEA2016AAT 是一款用于集成 PFC 谐振电源的控制器 IC。它在所有功率水平下 均可实现高效率。 1575994667956717526469zh TSP 10.6 MB Moderated Software Licensing For Download Without FAE None documents Extended 1575994667956717526469 /secured/assets/documents/zh/application-note/AN12330.pdf 10605848 /secured/assets/documents/zh/application-note/AN12330.pdf AN12330 documents Y N 2019-12-10 TEA2016 PFC + LLC Controller IC Application Note /secured/assets/documents/zh/application-note/AN12330.pdf https://www.nxp.com.cn/webapp/Download?colCode=AN12330&appType=moderatedWithoutFAE&docLang=zh Application Note N 645036621402383989 2023-04-24 zh Nov 28, 2019 645036621402383989 Application Note Y N TEA2016 PFC + LLC 控制器 IC 1 English The TEA2016AAT is a controller IC for resonant power supplies that include a PFC. It provides high efficiency at all power levels. 1575994667956717526469 TSP 10.6 MB Moderated Software Licensing For Download Without FAE None documents Extended 1575994667956717526469 /secured/assets/documents/en/application-note/AN12330.pdf 10605848 /secured/assets/documents/en/application-note/AN12330.pdf AN12330 documents Y N 2019-12-10 TEA2016 PFC + LLC Controller IC Application Note /webapp/Download?colCode=AN12330&appType=moderatedWithoutFAE&lang_cd=ja /secured/assets/documents/en/application-note/AN12330.pdf Application Note N 645036621402383989 2023-04-24 pdf Y en Nov 28, 2019 645036621402383989 Application Note Y N TEA2016 PFC + LLC Controller IC Application Note ファクト・シート Fact Sheet 2 6 1 English NXP’s TEA2016 and TEA2095 ICs provide reliable power supply design and help make LLC design easier 1586381600676718729211 TSP 189.4 KB None None documents None 1586381600676718729211 /docs/en/fact-sheet/TEA2016-2095-FS.pdf 189367 /docs/en/fact-sheet/TEA2016-2095-FS.pdf TEA2016-2095-FS documents N N 2020-04-08 TEA2016/TEA2095 ICs - Fact Sheet /docs/en/fact-sheet/TEA2016-2095-FS.pdf /docs/en/fact-sheet/TEA2016-2095-FS.pdf Fact Sheet N 736675474163315314 2023-04-24 pdf N en Apr 8, 2020 736675474163315314 Fact Sheet Y N TEA2016/TEA2095 ICs - Fact Sheet 7 1 English NXP provides a reliable power supply design while making the LLC design easier, this latest platform guarantees high efficiency and a very low no-load power. 1567543850801693610125 TSP 207.1 KB None None documents None 1567543850801693610125 /docs/en/fact-sheet/TEA20161995FSDAS.pdf 207132 /docs/en/fact-sheet/TEA20161995FSDAS.pdf TEA20161995FSDAS documents N N 2019-09-03 NXP GreenChip ICs TEA2016 and TEA1995 /docs/en/fact-sheet/TEA20161995FSDAS.pdf /docs/en/fact-sheet/TEA20161995FSDAS.pdf Fact Sheet N 736675474163315314 2023-08-08 pdf N en Feb 28, 2020 736675474163315314 Fact Sheet Y N NXP GreenChip ICs TEA2016 and TEA1995 false 0 TEA2016DB1561 downloads ja true 0 Y TSP アプリケーション・ノート 1 /secured/assets/documents/en/application-note/AN12330.pdf 2019-12-10 1575994667956717526469 TSP 5 Nov 28, 2019 Application Note The TEA2016AAT is a controller IC for resonant power supplies that include a PFC. It provides high efficiency at all power levels. Moderated Software Licensing For Download Without FAE /secured/assets/documents/en/application-note/AN12330.pdf English documents 10605848 None 645036621402383989 2023-04-24 Y /webapp/Download?colCode=AN12330&appType=moderatedWithoutFAE&lang_cd=ja TEA2016 PFC + LLC Controller IC Application Note /secured/assets/documents/en/application-note/AN12330.pdf documents 645036621402383989 Application Note N en Extended Y pdf 1 Y N TEA2016 PFC + LLC Controller IC Application Note 10.6 MB AN12330 N 1575994667956717526469 ファクト・シート 2 /docs/en/fact-sheet/TEA2016-2095-FS.pdf 2020-04-08 1586381600676718729211 TSP 6 Apr 8, 2020 Fact Sheet NXP’s TEA2016 and TEA2095 ICs provide reliable power supply design and help make LLC design easier None /docs/en/fact-sheet/TEA2016-2095-FS.pdf English documents 189367 None 736675474163315314 2023-04-24 N /docs/en/fact-sheet/TEA2016-2095-FS.pdf TEA2016/TEA2095 ICs - Fact Sheet /docs/en/fact-sheet/TEA2016-2095-FS.pdf documents 736675474163315314 Fact Sheet N en None Y pdf 1 N N TEA2016/TEA2095 ICs - Fact Sheet 189.4 KB TEA2016-2095-FS N 1586381600676718729211 /docs/en/fact-sheet/TEA20161995FSDAS.pdf 2019-09-03 1567543850801693610125 TSP 7 Feb 28, 2020 Fact Sheet NXP provides a reliable power supply design while making the LLC design easier, this latest platform guarantees high efficiency and a very low no-load power. None /docs/en/fact-sheet/TEA20161995FSDAS.pdf English documents 207132 None 736675474163315314 2023-08-08 N /docs/en/fact-sheet/TEA20161995FSDAS.pdf NXP GreenChip ICs TEA2016 and TEA1995 /docs/en/fact-sheet/TEA20161995FSDAS.pdf documents 736675474163315314 Fact Sheet N en None Y pdf 1 N N NXP GreenChip ICs TEA2016 and TEA1995 207.1 KB TEA20161995FSDAS N 1567543850801693610125 ユーザ・ガイド 4 /secured/assets/documents/en/user-guide/UM11235.pdf 2020-01-30 1580409962826709534761 TSP 1 Jun 27, 2019 User Guide ユーザ・ガイド The TEA2016DB1514 USB-I2C interface board is a development tool to enable working with theTEA2016 setting by use of a computer. Y Moderated Software Licensing For Download Without FAE /secured/assets/documents/en/user-guide/UM11235.pdf English 1881482 None User Guide 2023-04-24 Y /webapp/Download?colCode=UM11235&appType=moderatedWithoutFAE&docLang=en TEA2016DB1514 USB to I2C hardware interface user manual /secured/assets/documents/en/user-guide/UM11235.pdf documents 132339537837198660 User Guide N en Extended Y t792 pdf 1 Y N TEA2016DB1514 USB to I2C hardware interface user manual 1.9 MB UM11235 N 1580409962826709534761 2020-11-27 1606518471306746709870 2 User Guide ユーザ・ガイド This page will help guide you through the process of learning about your RDK01DB1561 board. Y GS-RDK01DB1561 English 0 User Guide 2025-01-07 /document/guide/getting-started-with-the-rdk01db1561:GS-RDK01DB1561 Getting Started with the RDK01DB1561 GS-RDK01DB1561 TSP 132339537837198660 User Guide en Y t792 HTML GS-RDK01DB1561 1606518471306746709870 /secured/assets/documents/en/user-guide/UM11522.pdf 2020-11-27 1606519461385736152566 TSP 3 Nov 27, 2020 User Guide ユーザ・ガイド This quick start guide describes how to get started with the RDK01DB1561 programming kit Y Registration without Disclaimer /secured/assets/documents/en/user-guide/UM11522.pdf English 624301 None User Guide 2022-12-07 Y /webapp/Download?colCode=UM11522&docLang=en RDK01DB1561 programming kit - Quick start guide /secured/assets/documents/en/user-guide/UM11522.pdf documents 132339537837198660 User Guide N en Extended Y t792 pdf 1 Y N RDK01DB1561 programming kit - Quick start guide 624.3 KB UM11522 N 1606519461385736152566 /secured/assets/documents/en/user-guide/UM11219.pdf 2020-01-30 1580409961526718973206 TSP 4 Jul 30, 2019 User Guide ユーザ・ガイド The Ringo TEA2016 development software with GUI is a development tool that enables working with the TEA2016 settings using a computer and the TEA2016DB1514 USB I2C interface board. Y Moderated Software Licensing For Download Without FAE /secured/assets/documents/en/user-guide/UM11219.pdf English 8943473 None User Guide 2023-04-24 Y /webapp/Download?colCode=UM11219&appType=moderatedWithoutFAE&docLang=en Ringo TEA2016 development software with GUI user manual /secured/assets/documents/en/user-guide/UM11219.pdf documents 132339537837198660 User Guide N en Extended Y t792 pdf 1.05 Y N Ringo TEA2016 development software with GUI user manual 8.9 MB UM11219 N 1580409961526718973206 true Y Tools

    ドキュメント

    クイック・リファレンス ドキュメンテーションの種類.

    フィルタ

    7 ドキュメント

    コンパクトリスト

    アプリケーション・ノート (1)
    ファクト・シート (2)
    ユーザ・ガイド (4)

    Related Hardware

    クイック・リファレンス ボードタイプ.
    フィルタ

    1 ハードウェア提供

    ソフトウェア

    クイック・リファレンス ソフトウェア・タイプ.

    フィルタ

    4 ソフトウェア・ファイル

    • BSPとデバイスドライバ

      Ringo v135 TEA2016ATT x86 for 32-Bit Windows OS

      ZIP改訂 1Jan 17, 2020349.61 MBRINGO-V135-TEA2016AAT-X86
      アカウントが必要です
      ダウンロード
    • BSPとデバイスドライバ

      Ringo v141 TEA2016ATT x86 for 32-Bit Windows OS

      ZIP改訂 1Apr 29, 2022341.80 MBRINGO-V141-TEA2016AAT-X86
      アカウントが必要です
      ダウンロード
    • BSPとデバイスドライバ

      Ringo v135 TEA2016ATT x64 for 64-Bit Windows OS

      ZIP改訂 1Jan 17, 2020351.56 MBRINGO-V135-TEA2016AAT-X64
      アカウントが必要です
      ダウンロード
    • BSPとデバイスドライバ

      Ringo v141 TEA2016ATT x64 for 64-Bit Windows OS

      ZIP改訂 1Apr 29, 2022341.80 MBRINGO-V141-TEA2016AAT-X64
      アカウントが必要です
      ダウンロード
