45W / 19.5V Ultra book adapter.
45 W / 19.5 V Ultra Book Adapter

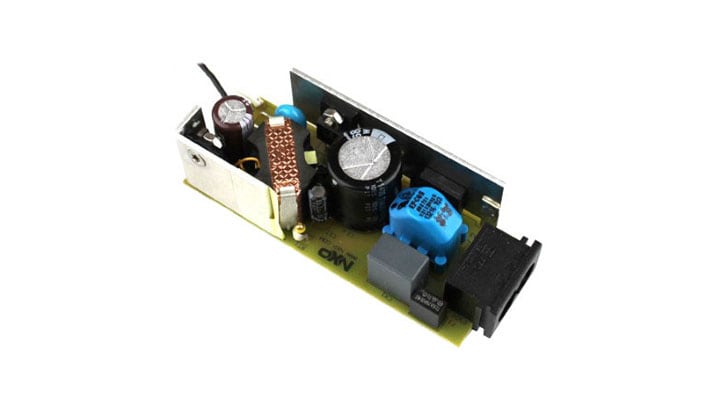

The TEA1833 demo board is a small and low cost solution for a 45W ultra book adapter or any low power adapter
solution.
The power supply can deliver a peak power up to 200 % for a limited amount of time.
The application is
EMI CISPR22, ENERGY STAR, DoE and CoC compliant. The used topology is fixed frequency flyback. The adapter has several
built-in protections and compensation features and excellent efficiency and standby power consumption performance.
製品詳細
対応製品
パワーマネージメント
AC-DCコントローラ
- TEA1833TS: GreenChip SMPS Control IC
- TEA1833LTS: GreenChip SMPS Control IC
Features
Key Features
- Slope compensation for CCM operation
- Low ripple and noise
- Low-cost implementation
- EMI CISPR22 compliant
- Average efficiency: > 89 % (end of cable)
- Fixed switching frequency with frequency jitter to reduce EMI
- Limitation of switching frequency at high mains to reduce the maximum drain voltage
- Overtemperature protection
- Brown-in/out protection
- 200 % peak power for 2 ms
- ICs used: TEA1833T TSOP6 fixed frequency controller
IC
- TEA1833T TSOP6 fixed frequency controller
Size
- Small form factor
Power Management
- Universal mains operation: 90 - 264 V (AC)
- Output: 45 W; 19.5 V
- Standby power consumption: < 58 mW (at 230 V (AC))
- Dedicated burst mode, allowing a low VCC capacitor value
- Accurate output overvoltage protection
- OverCurrent Protection (OCP)
- OverPower Protection (OPP)
- ENERGY STAR, DoE, and CoC compliant
