TEA1708DB1168
アクティブ -
TEA1708T active X-cap discharge demoboard.
- Demoboard TEA1708DB1168
- Quick start guide

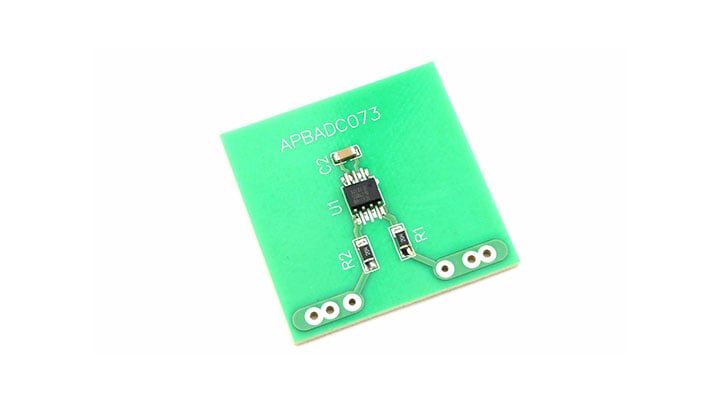

TEA1708T Active X-Cap Discharge Demo Board
The TEA1708T demo board can be used in a power converter to add the automatic discharge for X capacitor functionality. The demo board contains a TEA1708T controller in SO8 package and two resistors and one low voltage capacitor. The demo board replaces
the resistors that are normally used to discharge the X capacitor. It can be connected directly across the X capacitor terminals.
製品詳細
対応製品
パワーマネージメント
AC-DCコントローラ
- TEA1708T: GreenChip X Capacitor Discharge IC
Features
Key Features
- Universal mains: input 90-265 Vac
- TEA1708T active X-cap discharger in SO-8 package
- Up to 2uF capacitors can be discharged to <60V within 2 seconds
Power Management
- Board can be connected to any power converter containing an X capacitor
- Power consumption of the board (without X capacitor) < 1mW
