LPC54S018-EVK
アクティブ -
LPCXpresso54S018 Development Board.
- 1x LPCXpresso54S018 Development Board, pre-loaded with demonstration program showing emWIN example.
LPCXpresso54S018 Development Board

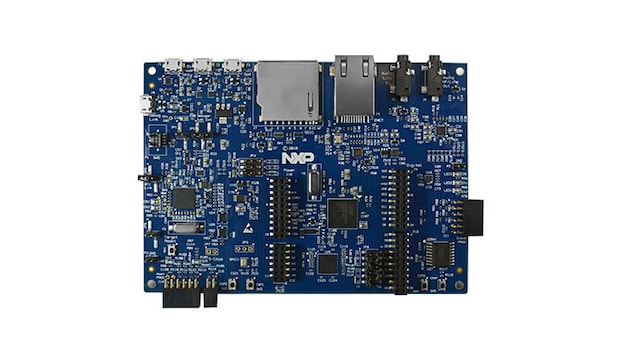

The LPC54S018-EVK development board has been designed to enable evaluation of and prototyping with the LPC54S0xx MCU devices leveraging the high-performance Arm® Cortex®-M4 core and the advanced security capabilities featured in the LPC54S0xx MCU family. The board is comprised of target LPC54S018 device with an onboard, CMSIS-DAP / SEGGER® J-Link compatible debug probe. The onboard probe is compatible with MCUXpresso IDE and other leading toolchains such as those from Keil™ and IAR®. The board is also equipped with a standard 10-pin header enabling the use of 3rd party to debug probes. In addition to standard LPCXpresso V3 features, this board includes a complete set of peripheral interfaces to enable developers to fully explore the capabilities of LPC54S0xx devices.
MCUXpresso configuration tools and extensive SDK drivers/examples, including the examples for the security features supported in the LPC54S0xx MCU devices, are available for the board at mcuxpresso.nxp.com.
製品詳細
対応製品
プロセッサ＆マイクロコントローラ
LPC54000 Cortex-M4
- LPC540XX: Power-Efficient Microcontrollers (MCUs) with Advanced Peripherals Based on Arm® Cortex®-M4 Core
Features
Microcontroller
- LPC54S018
Memory
- Winbond 128 Mb W25Q128JVFIM Quad-SPI flash
- Winbond 128 Mb W9812G6JB-6I SDRAM
- Full-size SD/MMC card slot
Connectivity
- High and full speed USB ports with micro A/B connector for host or device functionality
- 10/100Mbps Ethernet (RJ45 connector)
Power Management
- Built-in power consumption measurement for target LPC54018 MCU
Debug
- Onboard, high-speed USB, Link2 debug probe with CMSIS-DAP and SEGGER J-Link protocol options
- UART and SPI port bridging from LPC54S018 target to USB via the onboard debug probe
- Support for external debug probe
Sensors
- NXP MMA8652FCR1 accelerometer
Display

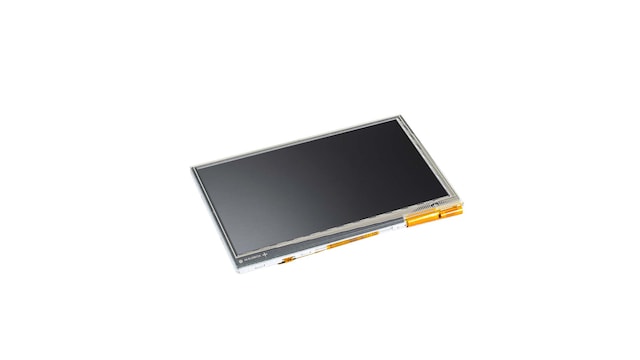

- Optional 480x272 capacitive touch TFT LCD screen (available separately)
Audio
- Knowles SPH0641LM4H digital microphone Stereo audio codec with line in/out
Expansion Port
- Multiple Expansion options, including Arduino® UNO and PMod
User Components
- 3 x user LEDs, plus Reset, ISP (3), and user buttons
購入オプション
設計・リソース
デザイン・ファイル
クイック・リファレンス
設計・ファイルの種類.
2 設計・ファイル
-
プリント基板と回路図
LPCXpresso54608/54618/54628/54018/54S018 schematic, design and manufacturing files
-
プリント基板と回路図
Schematic design source files in OrCAD format
ソフトウェア
クイック・リファレンス ソフトウェア・タイプ.
1-5 の 8 ソフトウェア・ファイル
-
HMIデザイン・ソフトウェア
NXP emWin Libraries
-
アプリケーション例 ソフトウェア
NAFE MCUXpresso Demo Project for LPC54S018
-
アプリケーション例 ソフトウェア
NAFE MCUXpresso Demo Project for LPC54628
-
追加ソフトウェアを利用可能 パートナー・ソリューションの特集を表示.
-
デバッグと可視化ツール
マイクロコントローラ用Linkserver
注: より快適にご利用いただくために、ソフトウェアのダウンロードはデスクトップで行うことを推奨します。
トレーニング
2 トレーニング
