EasyEVSE EV Charging Signal Board

EVSE-SIG-BRD アクティブ

画像にカーソルを合わせると拡大表示されます。

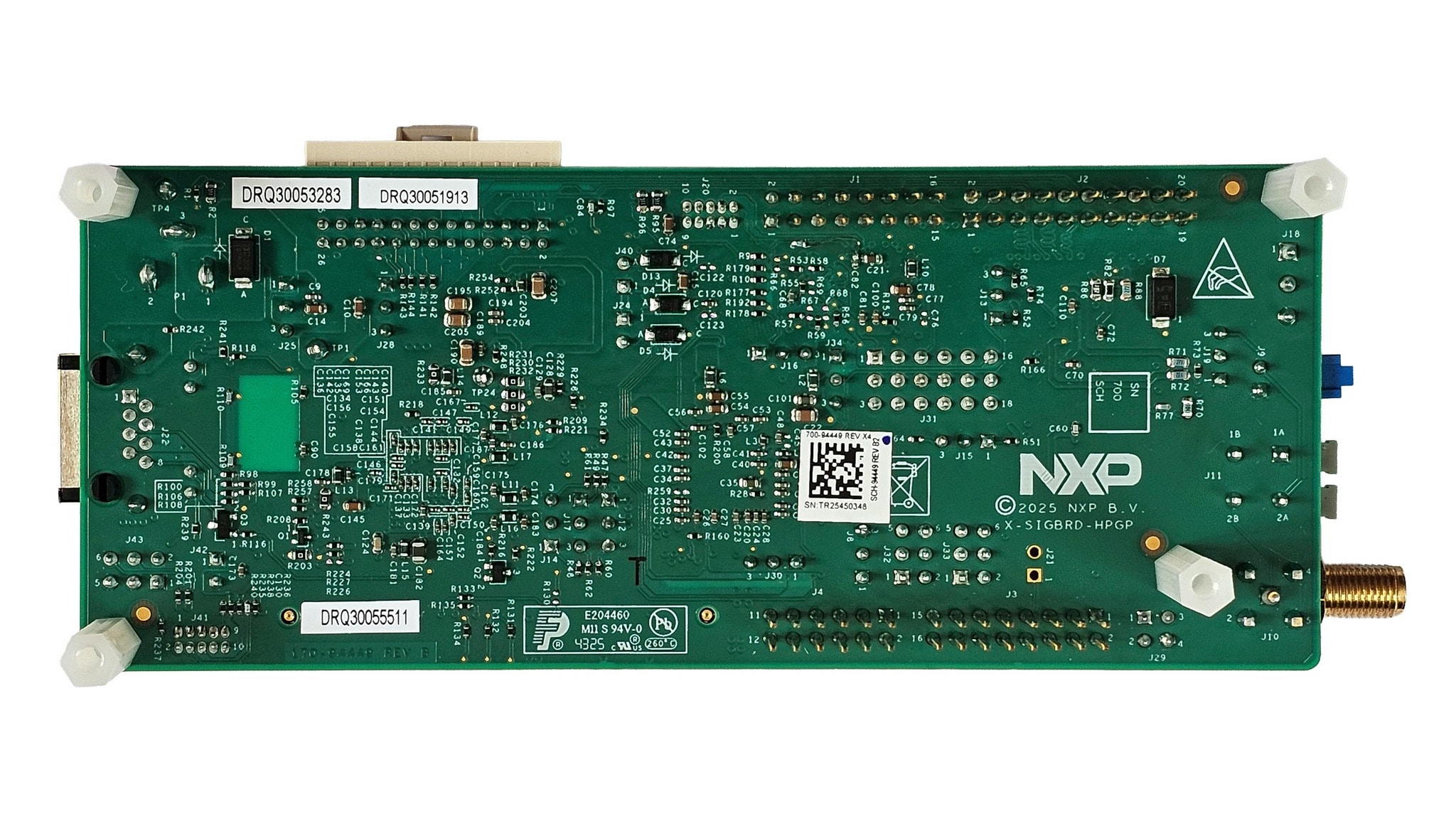

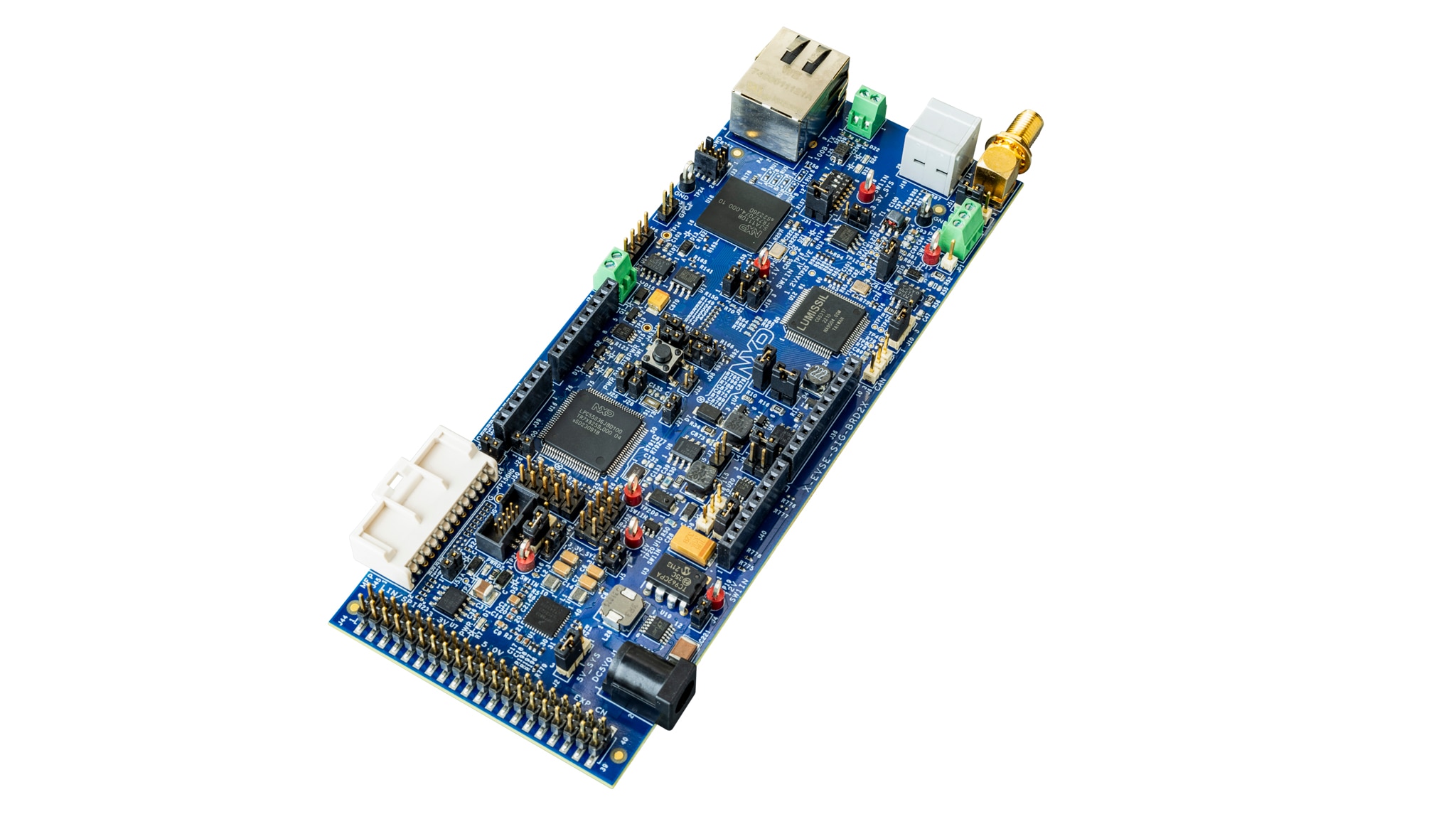

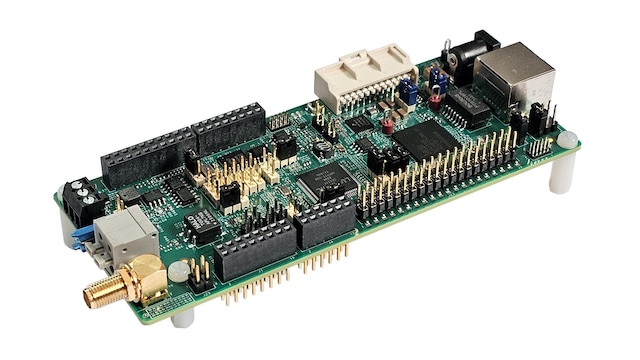

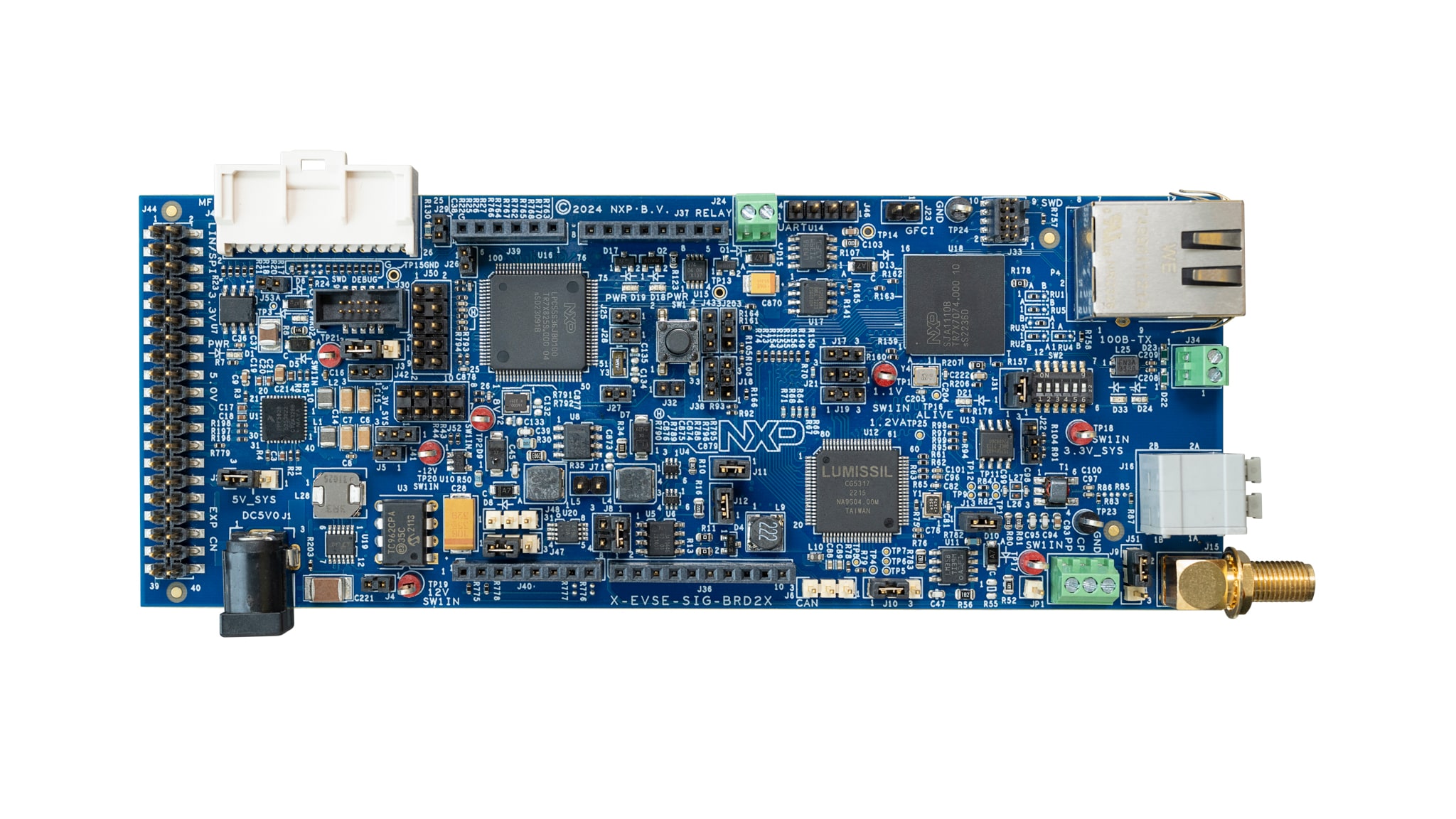

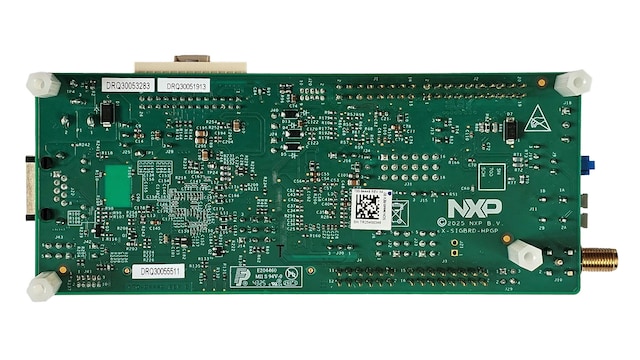

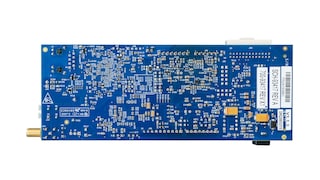

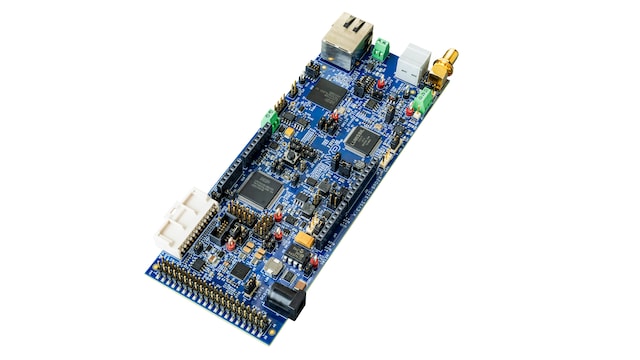

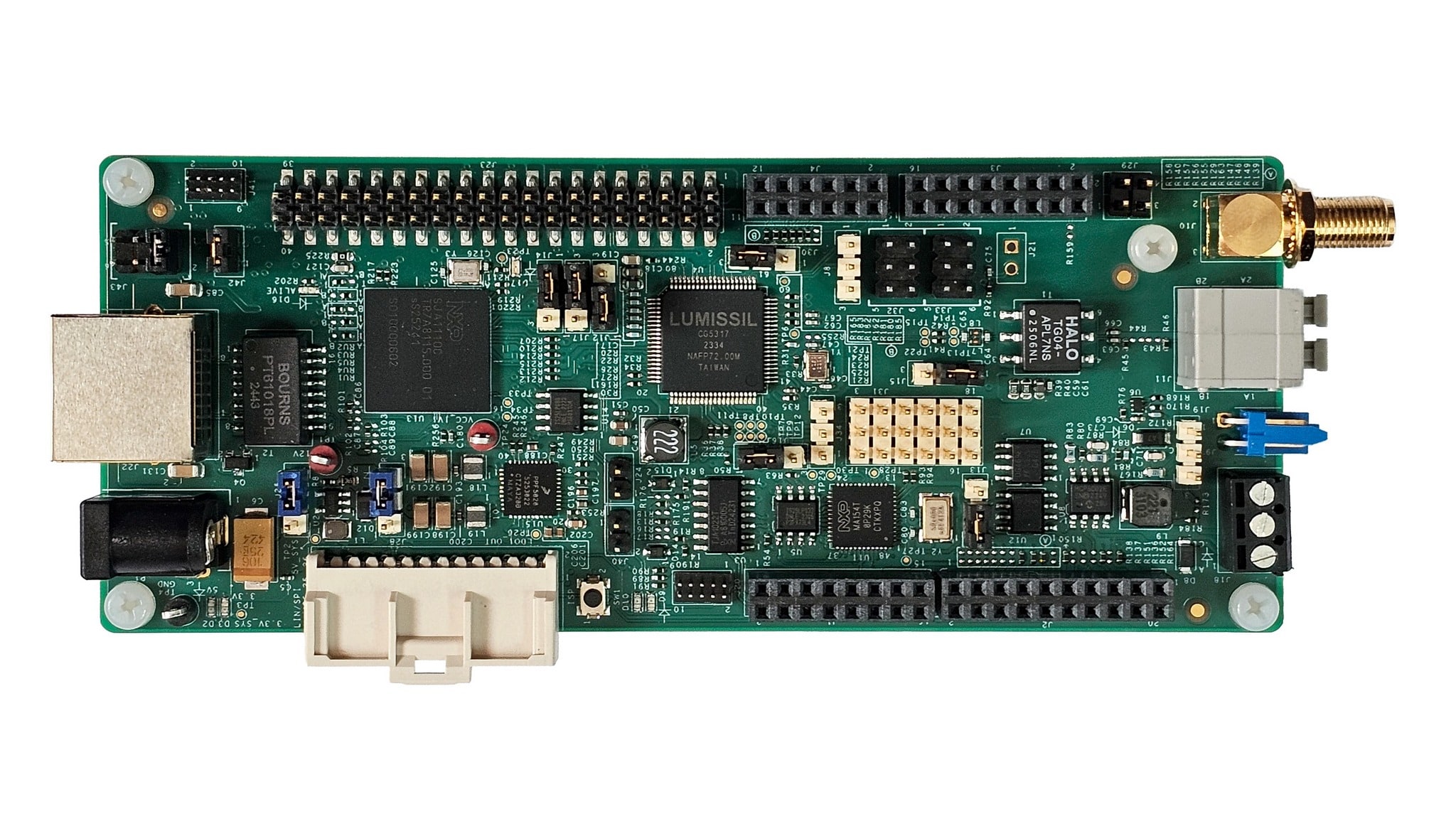

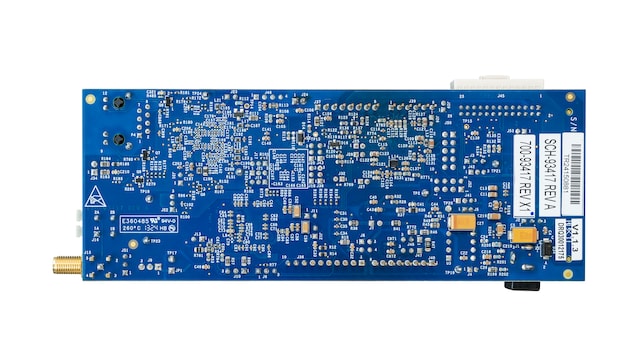

The EVSE-SIG-BRD Signal Board is an add-on for several EV charging development platforms. It hosts an LPC55S36 MCU for the SAE J1772 control pilot, a TJA1021BT LIN transceiver for SAE J3068 and a Lumissil CG5317 HomePlug Green PHY for ISO 15118 communications. It supports the proximity pilot, GFCI, relay drive, Ethernet and CAN PHYs, and is compatible with NXP development boards for i.MX 8, 9, RT1060, RT1064 or S32G-VNP-RDB3.

ブロック図

EasyEVSE EV Charging Signal Board block diagram

EasyEVSE EV Charging Signal Board
図を取得する PDF

対応製品

インターフェース

車載イーサネット・スイッチおよびネットワーク・コントローラ

  • SJA1110: Multi-Gig Safe and Secure TSN Ethernet Switch with Integrated 100BASE-T1 PHYs

オートモーティブLINソリューション

  • TJA1021: ISO17987 LIN 2.1/SAE J2602トランシーバ

3.3 V/5 V IO CANトランシーバ

  • TJA1044: 高速CANトランシーバ、スタンバイ・モード搭載 - Mantisファミリ

プロセッサ＆マイクロコントローラ

LPC5500シリーズ Arm Cortex-M33

  • LPC553x: LPC553x/S3x：高度なアナログArm®Cortex®-M33ベースMCUファミリ

Features

Embedded Microcontroller

  • LPC5536/LPC55S36 MCU
  • Arm Cortex-M33 with flash and RAM
  • PWMs, ADCs and DACs with on-chip comparator
  • CAN, Ethernet, UART, SPI and I2C interfaces

HomePlug Green PHY

  • Lumissil CG5317 HomePlug Green PHY Transceiver for ISO 15118 power line communication (PLC)

Control Pilot

  • J1772 (IEC 61851) PWM, ISO 15118 EVSE and EV support

Proximity Pilot

  • J1772 support

Ethernet Switch

  • SJA1110B to enable switching between several Ethernet sources

CAN Interface

  • TJA1044GT to support CAN communication

LIN Interface

  • TJA1021BT LIN transceiver for SAE J3068 to support LIN communication

Ground-Fault Circuit Interrupters (GFCI)

  • GFCI detection and relay asynchronous triggering

Relay Driver

  • Drive up to two DC coil relays at 12 V and 140 mA

External AFE Interface

  • Supports connection with an external Analog-Front-End (AFE)

Safety Check Header

  • Supports connection with an external high voltage AC and current sensor circuit

Host Connectors

  • Arduino connector for the i.MX RT crossover MCU (MIMXRT1060/1064-EVK) and S32K3 automotive MCU (S32K3X4EVB-T172) development boards
  • EXP CN header for the i.MX 9 applications processor (MCIMX93-EVK) development board
  • Multi-Function Port (MFP) for the S32G automotive processor (S32G-VNP-RDB3) development board
  • Ethernet connectors for 1 x 100BASE-TX and 1 x 100BASE-T1

Tools and OS Support

  • Linux OS
  • FreeRTOS
  • MCUXpresso

もっと見る

購入オプション

EVSE-SIG-BRD2X-Image

クリックして展開

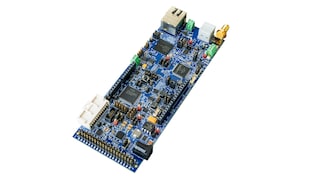

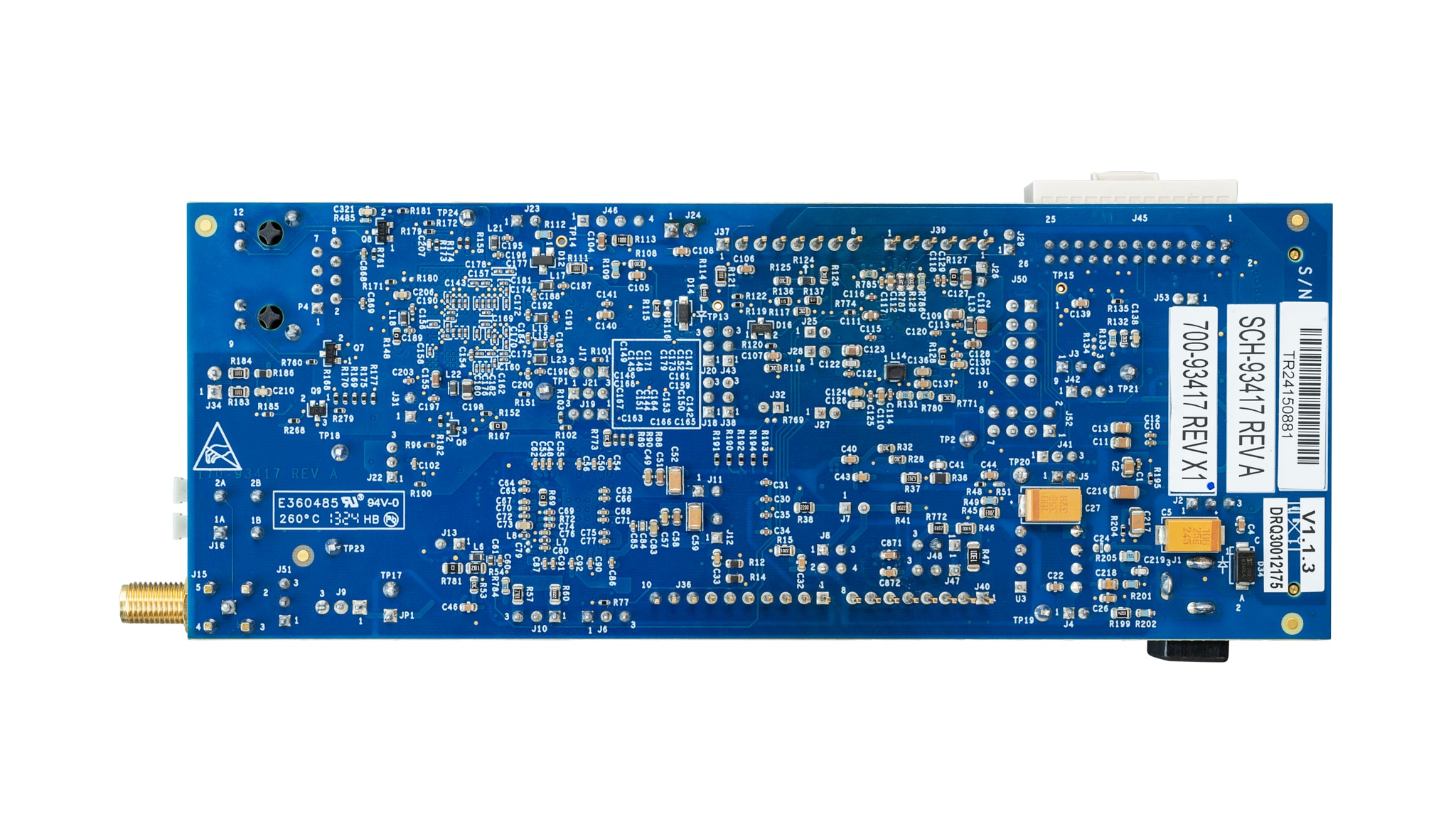

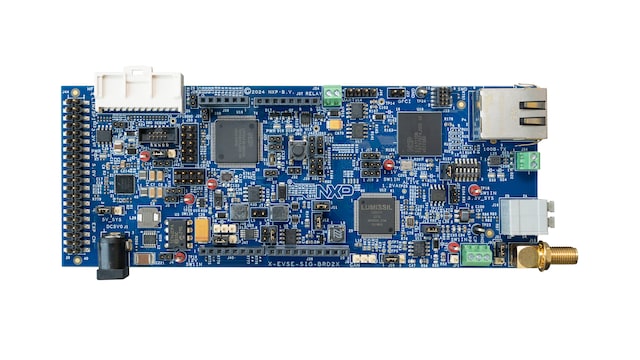

  • EVSE-SIG-BRD2X
    アクティブ

  • EasyEVSE EV Charging Signal Board.

  • Kit Contains

    • EasyEVSE EV Charging Signal Board and power supply
  • $600.00 USD
  • の数量に対して 1
    • 在庫: 保留中の在庫
カートに入れる
代理店からの注文
EVSE-IMX93-CBL-Image

クリックして展開

  • EVSE-IMX93-CBL

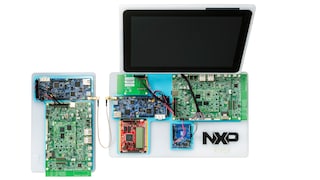

  • Cable kit to connect the EasyEVSE Development Platform (Linux OS, Wi-Fi 6).

  • Kit Contains

    Electrical Vehicle Supply Equipment (EVSE) side:

    • 1 x cable harness from the MCIMX93-EVK to the OM-SE050ARD-E
    • 1 x cable harness from the MCIMX93-EVK to the EVSE-SIG-BRD1X/2X and to the OM27160B1EVK
    • 1 x cable harness from the EVSE-SIG-BRD1X/2X to the TWR-KM35Z75M

    Electrical Vehicle (EV) side:

    • 1 x cable harness from the MCIMX93-EVK to the EVSE-SIG-BRD1X/2X
  • $700.00 USD
  • の数量に対して 1
    • 在庫: 在庫あり
    • 在庫: 3
    • 配送: 通常 1～2営業日以内に配送
カートに入れる
代理店からの注文
EVSE-RT106X-CBL-Image

クリックして展開

  • EVSE-RT106X-CBL
    アクティブ

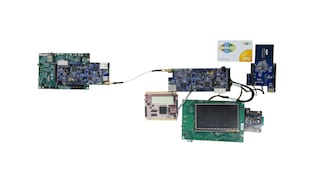

  • The EVSE-RT106X-CBL is a cable kit for easier and faster connection of your EasyEVSE EV Charging Development Platform.

  • Note: The 3 x 2.54-mm female-to-female jumper cables to connect the EVSE-SIG-BRD1X/2X with the TWR-KM34Z50M, TWR-KM34Z75M or with the TWR-KM35Z75M are not part of the cable kit. Those cables need to be additional provided for the completion wiring of the setup.

    Kit Contains

    Electrical Vehicle Supply Equipment (EVSE) side:

    • 1 x cable harness to connect the MIMXRT1060-EVK/MIMXRT1060-EVKB/MIMXRT1060-EVKC or MIMXRT1064-EVK with the EVSE-SIG-BRD1X/2X and with the CLEV6630ARD.

    Electrical Vehicle (EV) side:

    • Not applicable
  • $180.00 USD
  • の数量に対して 1
    • 在庫: 在庫あり
    • 在庫: 4
    • 配送: 通常 1～2営業日以内に配送
カートに入れる
代理店からの注文
N true 0 PSPEVSE-SIG-BRDja 3 ドキュメント User Manual t1009 1 ユーザ・ガイド User Guide t792 2 ja ja 1 1 English This page will guide you through the process of getting your development platform up and running. 1725648688769725948461 Y 1725648688769725948461 GS-EVSE-SIG-BRD GS-EVSE-SIG-BRD /document/guide/getting-started-with-the-easyevse-ev-charging-signal-board:GS-EVSE-SIG-BRD HTML 0 2024-09-06 GS-EVSE-SIG-BRD PSP User Guide 132339537837198660 2025-01-07 en Sep 6, 2024 User Guide t792 ユーザ・ガイド User Guide Y Getting Started with the EasyEVSE EV Charging Signal Board false ja ユーザ・ガイド User Guide 1 2 4.0 Y English https://www.nxp.jp/webapp/Download?colCode=UG10140&isHTMLorPDF=HTML This document is a quick and easy guide to get the EVSE-SIG-BRD2X board up and running while being integrated with an NXP host platform evaluation board. The EVSE-SIG-BRD2X is an add-on development board that supports electric vehicle supply equipment (EVSE) or electric vehicle (EV) platform development. 1723057531183700975408 PSP 12.6 MB Registration without Disclaimer None documents Extended 1723057531183700975408 /secured/assets/documents/en/user-guide/UG10140.pdf 12602271 /secured/assets/documents/en/user-guide/UG10140.pdf UG10140 documents Y N Y 2024-08-07 EVSE-SIG-BRD2X Board User Guide https://www.nxp.jp/webapp/Download?colCode=UG10140&isHTMLorPDF=HTML /secured/assets/documents/en/user-guide/UG10140.pdf User Guide N 132339537837198660 /bundle/UG10140/page/topics/introduction.html /webapp/Download?colCode=UG10140 2025-03-12 12.6 MB pdf Y en Mar 14, 2025 updated 132339537837198660 User Guide Y N EVSE-SIG-BRD2X Board User Guide ドキュメント User Manual 1 3 2.0 Y English https://www.nxp.jp/webapp/Download?colCode=UM12128&isHTMLorPDF=HTML The EVSE-SIG-BRD2X is an add-on development board that supports electric vehicle supply equipment (EVSE) or electric vehicle (EV) platform development. 1723056382858733601723 PSP 10.0 MB Registration without Disclaimer None documents Basic 1723056382858733601723 /secured/assets/documents/en/user-manual/UM12128.pdf 9962805 /secured/assets/documents/en/user-manual/UM12128.pdf UM12128 documents Y N Y 2024-08-07 EVSE-SIG-BRD2X Board User Manual https://www.nxp.jp/webapp/Download?colCode=UM12128&isHTMLorPDF=HTML /secured/assets/documents/en/user-manual/UM12128.pdf User Manual N 309919593431037931 /bundle/UM12128/page/topics/Board_overview.html /webapp/Download?colCode=UM12128 2025-01-21 10.0 MB pdf Y en Jan 31, 2025 309919593431037931 User Manual Y N EVSE-SIG-BRD2X Board User Manual false 0 EVSE-SIG-BRD downloads ja true 0 Y PSP ドキュメント 1 2024-08-07 /bundle/UM12128/page/topics/Board_overview.html Jan 31, 2025 User Manual The EVSE-SIG-BRD2X is an add-on development board that supports electric vehicle supply equipment (EVSE) or electric vehicle (EV) platform development. /secured/assets/documents/en/user-manual/UM12128.pdf Y documents Y 2025-01-21 https://www.nxp.jp/webapp/Download?colCode=UM12128&isHTMLorPDF=HTML 309919593431037931 en Basic /webapp/Download?colCode=UM12128 10.0 MB pdf N 10.0 MB UM12128 1723056382858733601723 https://www.nxp.jp/webapp/Download?colCode=UM12128&isHTMLorPDF=HTML /secured/assets/documents/en/user-manual/UM12128.pdf 1723056382858733601723 PSP 3 Registration without Disclaimer English 9962805 None 309919593431037931 Y EVSE-SIG-BRD2X Board User Manual /secured/assets/documents/en/user-manual/UM12128.pdf documents User Manual N Y 2.0 Y EVSE-SIG-BRD2X Board User Manual N ユーザ・ガイド 2 2024-08-07 /bundle/UG10140/page/topics/introduction.html Mar 14, 2025 User Guide This document is a quick and easy guide to get the EVSE-SIG-BRD2X board up and running while being integrated with an NXP host platform evaluation board. The EVSE-SIG-BRD2X is an add-on development board that supports electric vehicle supply equipment (EVSE) or electric vehicle (EV) platform development. /secured/assets/documents/en/user-guide/UG10140.pdf Y documents Y 2025-03-12 https://www.nxp.jp/webapp/Download?colCode=UG10140&isHTMLorPDF=HTML 132339537837198660 updated en Extended /webapp/Download?colCode=UG10140 12.6 MB pdf N 12.6 MB UG10140 1723057531183700975408 https://www.nxp.jp/webapp/Download?colCode=UG10140&isHTMLorPDF=HTML /secured/assets/documents/en/user-guide/UG10140.pdf 1723057531183700975408 PSP 2 Registration without Disclaimer English 12602271 None 132339537837198660 Y EVSE-SIG-BRD2X Board User Guide /secured/assets/documents/en/user-guide/UG10140.pdf documents User Guide N Y 4.0 Y EVSE-SIG-BRD2X Board User Guide N 2024-09-06 1725648688769725948461 1 Sep 6, 2024 User Guide ユーザ・ガイド This page will guide you through the process of getting your development platform up and running. Y GS-EVSE-SIG-BRD English 0 User Guide 2025-01-07 /document/guide/getting-started-with-the-easyevse-ev-charging-signal-board:GS-EVSE-SIG-BRD Getting Started with the EasyEVSE EV Charging Signal Board GS-EVSE-SIG-BRD PSP 132339537837198660 User Guide en Y t792 HTML GS-EVSE-SIG-BRD 1725648688769725948461 true Y Designs

ドキュメント

クイック・リファレンス ドキュメンテーションの種類.

フィルタ

3 ドキュメント

コンパクトリスト

Related Hardware

クイック・リファレンス ボードタイプ.
フィルタ

4 ハードウェア提供

デザイン・ファイル

クイック・リファレンス 設計・ファイルの種類.
フィルタ

1 設計・ファイル

ソフトウェア

クイック・リファレンス ソフトウェア・タイプ.

フィルタ

2 ソフトウェア・ファイル

  • BSPとデバイスドライバ

    EVSE-SIG-BRD2X Software_EVSE

    EXTERNAL改訂 1Sep 1, 2024EVSE-SIG-BRD2X-SOFTWARE-EVSE
    ダウンロード
  • BSPとデバイスドライバ

    EVSE-SIG-BRD2X Software_EV

    EXTERNAL改訂 1Sep 1, 2024EVSE-SIG-BRD2X-SOFTWARE_EV
    ダウンロード

注: より快適にご利用いただくために、ソフトウェアのダウンロードはデスクトップで行うことを推奨します。

トレーニング

フィルタ

1 トレーニング

  • オンデマンドウェビナー

    NXP EasyEVSE EV Charging Signal Board - EVSE-SIG-BRD2X

    This training provides detailed explanation of the new hardware and software features for the EasyEVSE EV Charging Signal Board EVSE-SIG-BRD2X, including test setup and results.
    1 hr 45 minEnglish レベル: 中級
