高速CANトランシーバ - Mantisファミリ
TJA1042、TJA1044、TJA1049のセキュリティについては、セキュアCAN TJA1152をご覧ください。これらのデバイスでの、より高いデータ・レートについては、CAN SIC TJA1462をご覧ください。

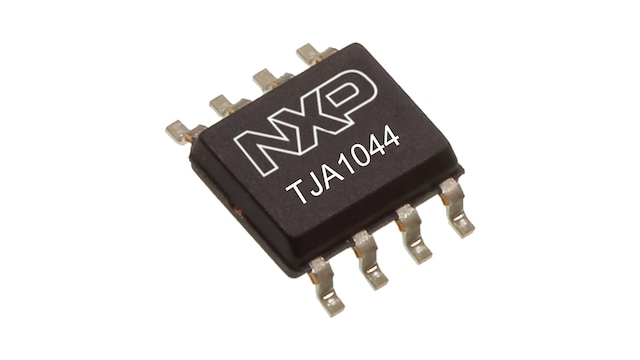

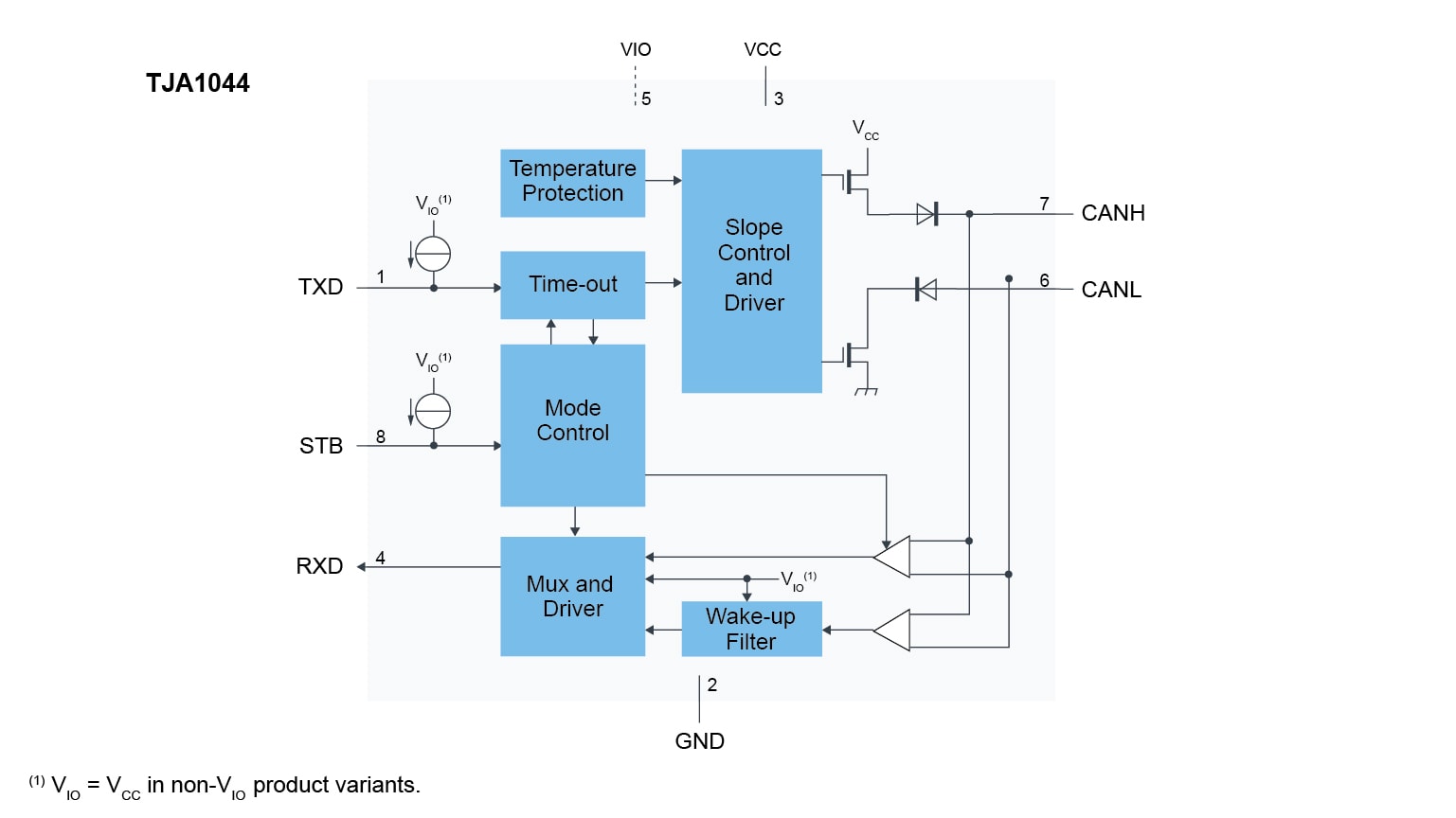

TJA1044は、Mantisファミリに属する高速CANトランシーバです。コントローラ・エリア・ネットワーク (CAN) プロトコル・コントローラと2線式CAN物理バスとの間のインターフェースを提供します。このトランシーバは、自動車業界の高速CANアプリケーション向けに設計されており、CANプロトコル・コントローラ(を備えたマイクロコントローラ)に差動送受信機能を提供します。電源電圧がオフのときには、CANバスに対して理想的なパッシブ動作を示します。
バス・ウェイクアップ機能を備えた超低消費電流のスタンバイ・モードを備え、コモン・モード・チョークなしでも優れたEMC性能を示します。VIOピンを備えたバージョンは、電源電圧が3.3 V~5 Vのマイクロコントローラに直接インターフェースできます。
これらの機能により、TJA1044は、CANバス経由のウェイクアップ機能を備えた低消費電力モードを必要とするノードにおいて、あらゆる種類のHS-CANネットワークに最適な選択肢となります。
TJA1044は、現行の11898-2:2016およびSAE J2284-1~SAE J2284-5で定義されているCAN物理層を実装しています。TJA1044Tでは、最大1 Mbit/sのデータ・レートが規定されています。他のバージョンでは、ループ遅延の対称性を定義する追加のタイミング・パラメータが規定されています。この実装により、CAN FD高速フェーズで最大5 Mbit/sのデータ・レートによる信頼性の高い通信が可能になります。
10 結果
マッチしていない 1 NRND
パーツ | 注文 | コンピュータ支援設計 モデル | 状況 | Recommended Orderable Part Number | New Generation Recommendation | MCU I/O Interface (V) | VIO Option Available | Low Power Modes | データ・レート(最大)(Kbps) | パッケージタイプ | CAN Channels | 製品カテゴリー | 電源電圧 [最小 - 最大] (V) | データ・レート(最小)(Kbps) | Voltage on bus pins [Min-Max] (V) | VESD IEC on bus pins (+/- kV) | VESD HBM on bus pins (+/- kV) | Junction Temperature (Max) (℃) | 保護 | Wake-Up Pin | Min High Input Levels (V) [Vio] | 汎用I/O | Supported standards | SPLIT Pin | Thermal Resistance (Spec) (℃/W) | Product Application |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
アクティブ | — | — | 3.3, 5.0 | Y | Standby Mode | 5000.0 | SO8 | 1 | CAN FD / High-Speed CAN | 4.5 to 5.5 | 40.0 | -42 to 42 | -8 to 8 | -8 to 8 | 150 | TXD dominant timeout, overtemperature detection, undervoltage detection | N | 2 | 0 | ISO-11898-2:2016, SAE J2284-1, SAE J2284-2, SAE J2284-3, SAE J2284-4, SAE J2284-5 | N | 97 | Automotive, Industrial | |||
アクティブ | — | — | 3.3, 5.0 | Y | Standby Mode | 5000.0 | HVSON8 | 1 | CAN FD / High-Speed CAN | 4.5 to 5.5 | 40.0 | -42 to 42 | -8 to 8 | -8 to 8 | 150 | TXD dominant timeout, overtemperature detection, undervoltage detection | N | 2 | 0 | ISO-11898-2:2016, SAE J2284-1, SAE J2284-2, SAE J2284-3, SAE J2284-4, SAE J2284-5 | N | 97 | Automotive, Industrial | |||
アクティブ | — | — | 5.0 | Y | Standby Mode | 5000.0 | SO8 | 1 | CAN FD / High-Speed CAN | 4.5 to 5.5 | 40.0 | -42 to 42 | -8 to 8 | -8 to 8 | 150 | TXD dominant timeout, overtemperature detection, undervoltage detection | N | 2 | 0 | ISO-11898-2:2016, SAE J2284-1, SAE J2284-2, SAE J2284-3, SAE J2284-4, SAE J2284-5 | N | 97 | Automotive, Industrial | |||
アクティブ | — | — | 5.0 | Y | Standby Mode | 5000.0 | HVSON8 | 1 | CAN FD / High-Speed CAN | 4.5 to 5.5 | 40.0 | -42 to 42 | -8 to 8 | -8 to 8 | 150 | TXD dominant timeout, overtemperature detection, undervoltage detection | N | 2 | 0 | ISO-11898-2:2016, SAE J2284-1, SAE J2284-2, SAE J2284-3, SAE J2284-4, SAE J2284-5 | N | 97 | Automotive, Industrial | |||
アクティブ | TJA1044DT/0Z | — | 3.3, 5.0 | Y | Standby Mode | 5.0 | SO8 | 1 | CAN FD / High-Speed CAN, VeLIO | 4.75 to 5.25 | 40.0 | -42 to 42 | -8 to 8 | -8 to 8 | 150 | TXD dominant timeout, overtemperature detection, undervoltage detection | N | 2 | 8 | ISO-11898-2:2016, SAE J2284-1, SAE J2284-2, SAE J2284-3, SAE J2284-4, SAE J2284-5 | N | 97 | Automotive, Industrial | |||
アクティブ | TJA1044DTK/0J | — | 3.3, 5.0 | Y | Standby Mode | 5.0 | HVSON8 | 1 | CAN FD / High-Speed CAN, VeLIO | 4.75 to 5.25 | 40.0 | -42 to 42 | -8 to 8 | -8 to 8 | 150 | TXD dominant timeout, overtemperature detection, undervoltage detection | N | 2 | 8 | ISO-11898-2:2016, SAE J2284-1, SAE J2284-2, SAE J2284-3, SAE J2284-4, SAE J2284-5 | N | 145 | Automotive, Industrial | |||
アクティブ | TJA1044ET/0Z | — | 5.0 | N | Standby Mode | 5.0 | SO8 | 1 | CAN FD / High-Speed CAN, VeLIO | 4.75 to 5.25 | 40.0 | -42 to 42 | -8 to 8 | -8 to 8 | 150 | TXD dominant timeout, overtemperature detection, undervoltage detection | N | 2 | 8 | ISO-11898-2:2016, SAE J2284-1, SAE J2284-2, SAE J2284-3, SAE J2284-4, SAE J2284-5 | N | 97 | Automotive, Industrial | |||
アクティブ | TKA1044ETK/0J | — | 5.0 | N | Standby Mode | 5.0 | HVSON8 | 1 | CAN FD / High-Speed CAN, VeLIO | 4.75 to 5.25 | 40.0 | -42 to 42 | -8 to 8 | -8 to 8 | 150 | TXD dominant timeout, overtemperature detection, undervoltage detection | N | 2 | 8 | ISO-11898-2:2016, SAE J2284-1, SAE J2284-2, SAE J2284-3, SAE J2284-4, SAE J2284-5 | N | 145 | Automotive, Industrial | |||
アクティブ | TJA1044GT/1Z, TJA1044GT/3Z | TJA1044BT | 3.3, 5.0 | Y | Standby Mode | 5000.0 | SO8 | 1 | CAN FD / High-Speed CAN | 4.5 to 5.5 | 40.0 | -42 to 42 | -8 to 8 | -8 to 8 | 150 | TXD dominant timeout, overtemperature detection, undervoltage detection | N | 2 | 0 | ISO-11898-2:2016, SAE J1939-14, SAE J2284-1, SAE J2284-2, SAE J2284-3, SAE J2284-4, SAE J2284-5 | N | 97 | Automotive, Industrial | |||
アクティブ | TJA1044GTK/3Z, TJA1044GTKZ | TJA1044BTK | 3.3, 5.0 | Y | Standby Mode | 5000.0 | HVSON8 | 1 | CAN FD / High-Speed CAN | 4.5 to 5.5 | 40.0 | -42 to 42 | -8 to 8 | -8 to 8 | 150 | TXD dominant timeout, overtemperature detection, undervoltage detection | N | 2 | 0 | ISO-11898-2:2016, SAE J1939-14, SAE J2284-1, SAE J2284-2, SAE J2284-3, SAE J2284-4, SAE J2284-5 | N | 145 | Automotive, Industrial |
