Tower Plug-In (TWRPI) Adaptor Board for Freedom Development Platform

FRDM-TWRPI アクティブ

画像にカーソルを合わせると拡大表示されます。

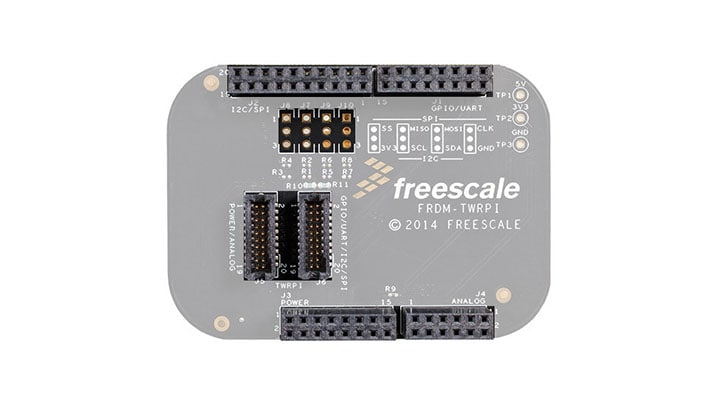

The NXP® Freedom TWRPI adapter module, FRDM-TWRPI, allows the addition of Tower® Plug-In (TWRPI) modules featuring a variety of sensors and radios into the Freedom development platform. Simply choose the sensor or radio for your design, affix to this board, then assemble with an NXP Freedom MCU board, and start designing.

製品詳細

対応製品

プロセッサ＆マイクロコントローラ

K2x / KS2x USB

  • K20_100: Kinetis® K20-100 MHz, Full-Speed USB, Mixed-Signal Integration Microcontrollers (MCUs) based on ARM® Cortex®-M4 Core
  • K20_120: Kinetis® K20-120 MHz, Full-Speed USB, Mixed-Signal Integration Microcontrollers (MCUs) based on Arm® Cortex®-M4 Core
  • K20_50: Kinetis® K20-50 MHz, Full-Speed USB, Mixed-Signal Integration Microcontrollers based on Arm® Cortex®-M4 Core
  • K20_72: Kinetis® K20-72 MHz, Full-Speed USB, Mixed-Signal Integration Microcontrollers (MCUs) based on Arm® Cortex®-M4 Core
  • K21_120: Kinetis K21-120 MHZ, Full-Speed USB, Anti-Tamper Microcontrollers based on Arm® Cortex®-M4
  • K21_50: Kinetis® K21-50 MHz, Full-Speed USB, Anti-Tamper Microcontrollers based on Arm® Cortex®-M4 Core
  • K22_100: Kinetis® K22-100 MHz, Cost Effective, Full-Speed USB Microcontrollers (MCUs) based on Arm® Cortex®-M4 Core
  • K22_120: Kinetis® K22-120 MHz, Cost Effective, Full-Speed USB Microcontrollers (MCUs) based on Arm® Cortex®-M4 Core
  • K22_50: Kinetis® K22-50 MHz, Cost Effective, Full-Speed USB Microcontrollers (MCUs) based on Arm® Cortex®-M4 Core
  • K24_120: Kinetis® K24-120 MHz, Full-Speed USB, 256KB SRAM Microcontrollers (MCUs) based on Arm® Cortex®-M4 Core

K6xイーサネット

  • K63_120: Kinetis® K63-120 MHz, 256KB SRAM, Anti-Tamper Microcontrollers (MCUs) based on Arm® Cortex®-M4 Core
  • K64_120: Kinetis® K64-120 MHz, 256 KB SRAM Microcontrollers (MCUs) Based on Arm® Cortex®-M4 Core

KLシリーズ Arm Cortex-M0+

  • KL1x: Kinetis® KL1x-48 MHz, Mainstream Small Ultra-Low Power Microcontrollers (MCUs) based on Arm® Cortex®-M0+ Core
  • KL2x: Kinetis® KL2x-72/96 MHz, USB Ultra-Low-Power Microcontrollers (MCUs) based on Arm® Cortex®-M0+ Core
  • KL3x: Kinetis® KL3x-48 MHz, Segment LCD Ultra-Low-Power Microcontrollers (MCUs) based on Arm® Cortex®-M0+ Core
  • KL4x: Kinetis® KL4x-48 MHz, USB, Segment LCD, Ultra-Low-Power Microcontrollers (MCUs) based on Arm® Cortex®-M0+ Core

Features

Connectivity

  • General Purpose Tower® Plug-in socket for use with TWRPI-based sensor and radio modules
  • Pass-thru of all Freedom Development Platform signals to allow additional expansion
  • Thru-hole test points of key interface signals:
    • SPI and I2C

購入オプション

FRDM-TWRPI-Image

クリックして展開

  • FRDM-TWRPI
    アクティブ

  • A shield board that acts as an adapter to the TWRPI connector.

    • FRDM-TWRPI adapter module
  • JP¥ 6,623
  • の数量に対して 1
