The Kinetis^® K24 120 MHz MCU family targets low-power, cost-sensitive applications requiring high-performance processing efficiency and large memory densities.

Includes a rich suite of analog, communication, timing and control peripherals to accommodate a wide range of requirements
Supports crystal-less USB design for reduced system cost and board space
Shares the comprehensive enablement and scalability of the Kinetis portfolio

データ・シート

リファレンス・マニュアル

製品詳細

ブロック図

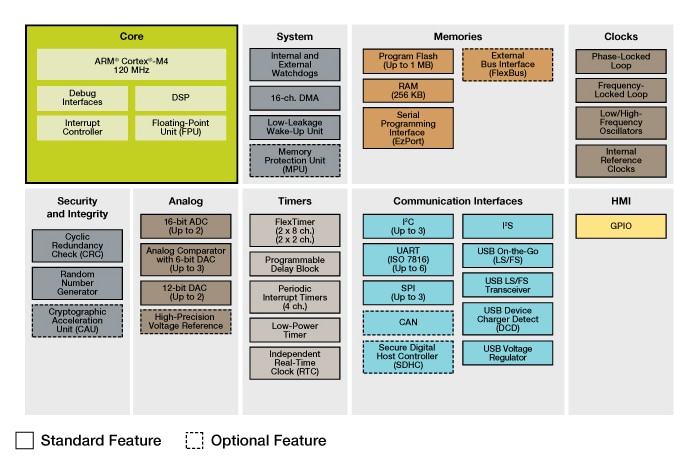

Kinetis K24 MCU Family Block Diagram

図を取得する PDF

Features

Ultra-Low-Power

Flexible low-power modes with power and clock gating for optimal peripheral activity and recovery times. Stop currents of <340 nA, run currents of 250 µA/MHz, 4.5 µs wake-up from Stop mode
Full memory and analog operation down to 1.71 volts for extended battery life
Low-leakage wake-up unit with up to seven internal modules and 16 pins as wake-up sources in low-leakage stop (LLS)/very low-leakage stop (VLLS) modes
Low-power timer for continuous system operation in reduced power state

Flash and SRAM

Up to 1 MB of flash. Fast access, high reliability with four-level security protection
256 KB of SRAM

Mixed-Signal Capability

Two high-speed, 16-bit analog-to-digital converters (ADCs) with configurable resolution. Single or differential output mode operation for improved noise rejection. 500 ns conversion time achievable with programmable delay block triggering
Two 12-bit digital-to-analog converters (DACs) for analog waveform generation for audio applications
Three high-speed comparators providing fast and accurate motor over-current protection by driving PWMs to a safe state
Analog voltage reference provides an accurate reference to analog blocks, ADC and DAC, and replaces external voltage references to reduce system cost

Performance

Arm^® Cortex^®-M4 core + DSP. 120 MHz, single-cycle MAC, single instruction multiple data (SIMD) extensions, single precision floating point unit
Up to 16-channel DMA for peripheral and memory servicing with reduced CPU loading and faster system throughput
Crossbar switch enables concurrent multi-leader bus accesses, increasing bus bandwidth
Independent flash banks allow concurrent code execution and firmware updating with no performance degradation or complex coding routines

Timing and Control

Up to four FlexTimers with a total of 20 channels. Hardware dead-time insertion and quadrature decoding for motor control
Carrier modulator timer for infrared waveform generation in remote control applications
Four-channel 32-bit periodic interrupt timer provides time base for RTOS task scheduler or trigger source for ADC conversion and programmable delay block

Human-Machine Interface (HMI)

GPIO with pin interrupt support

Connectivity and Communications

USB 2.0 On-The-Go (full-speed) with USB transceiver. Intelligent design with embedded 48 MHz oscillator allowing for USB crystal-less system design. Device charge detect optimizes charging current/time for portable USB devices enabling longer battery life. Low-voltage regulator supplies up to 120 mA off-chip at 3.3 volts to power external components from 5 volts input
Up to six UARTs with IrDA support including one UART with ISO7816 smart card support. Variety of data size, format and transmission/reception settings supported for multiple industrial communication protocols
Inter-IC Sound (I²S) serial interface for audio system interfacing
CAN module for industrial network bridging
Three DSPI and three I²C

Reliability, Safety and Security

Memory protection unit provides memory protection for all leaders on the crossbar switch, increasing software reliability
Cyclic redundancy check engine validates memory contents and communication data, increasing system reliability
Independent-clocked COP guards against clock skew or code runaway for fail-safe applications such as the IEC 60730 safety standard for household appliances
External watchdog monitor drives output pin to safe state external components if watchdog event occurs

Kinetis K24_120 MCU Family Recommended Solutions

Part number	Features	Hardware Development Tools

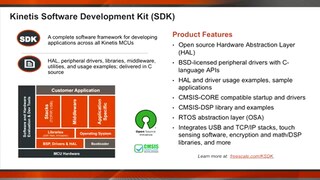

MK24FN1M0VDC12	1 MB Flash, 256 KB SRAM, MAPBGA 121	FRDM-K64F TWR-K64F120M
MK24FN1M0VLQ12	1 MB Flash, 256 KB SRAM, QFP 144	FRDM-K64 TWR-K64F120M
MK24FN1M0VLL12	1 MB Flash, 256 KB SRAM, QFP 100	FRDM-K64 TWR-K64F120M

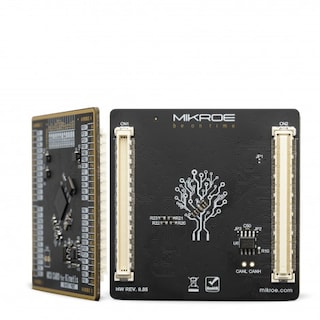

MK24FN256VDC12	256 KB Flash, 256 KB SRAM, MAPBGA 121	TWR-K24F120M
