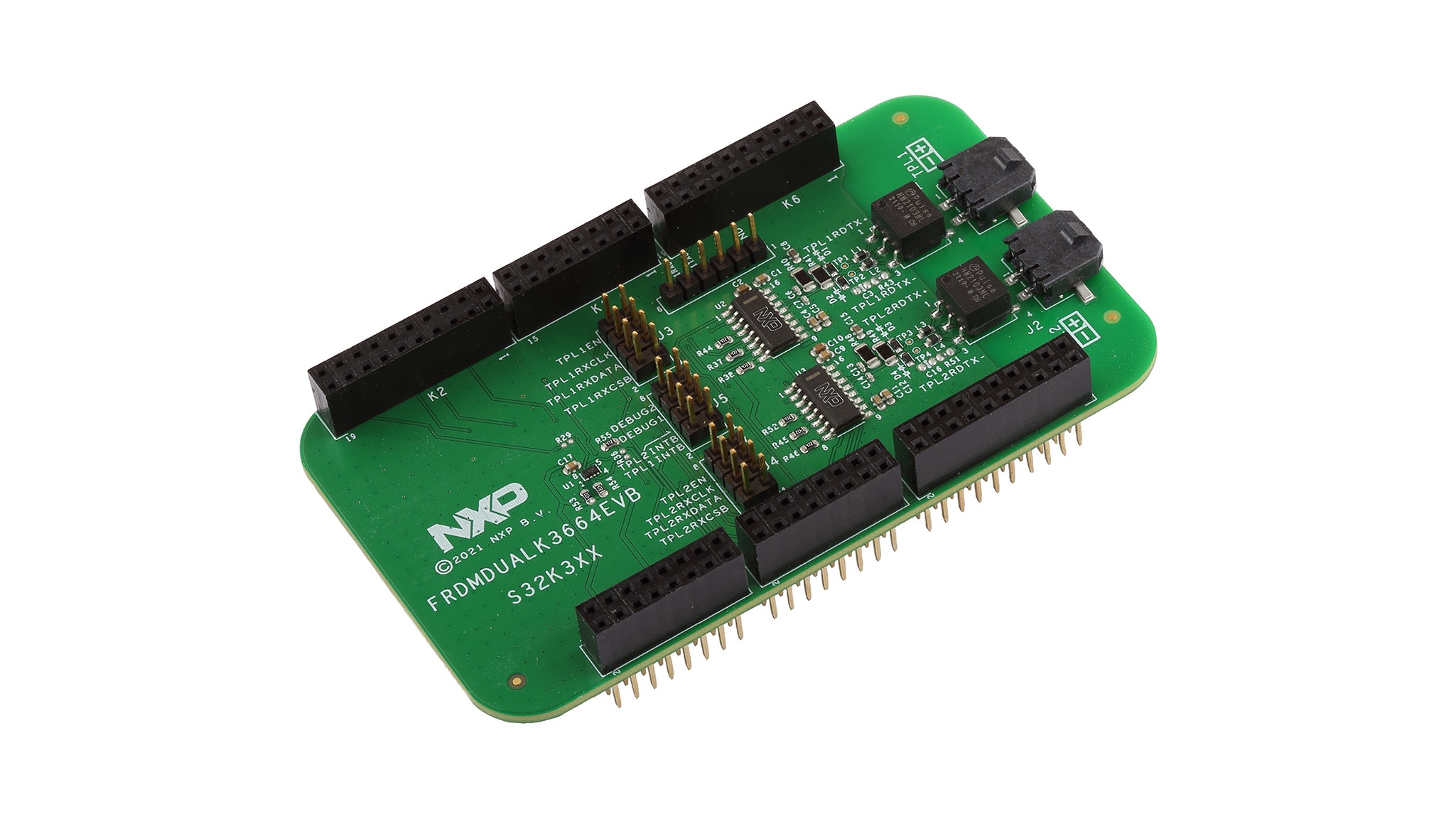

This evaluation board features the MC33664ATL, a transceiver physical layer transformer driver designed to interface a microcontroller to a high-speed isolated communication network. MCU SPI data is directly converted to pulse bits and transferred to the bus network.
Response messages use the same structure to send pulse bit information to the MC33664ATL, which is then converted to an SPI bit stream for MCU.
This EVB works with the MC3377x battery cell controllers. The MC3377x are automotive lithium-ion battery cell controller ICs for hybrid (HEV) and electric vehicle (EV) as well as industrial applications, such as energy storage systems (ESS) and uninterruptible power supply (UPS).

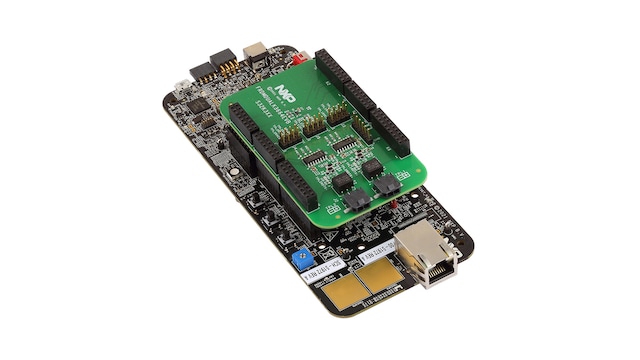

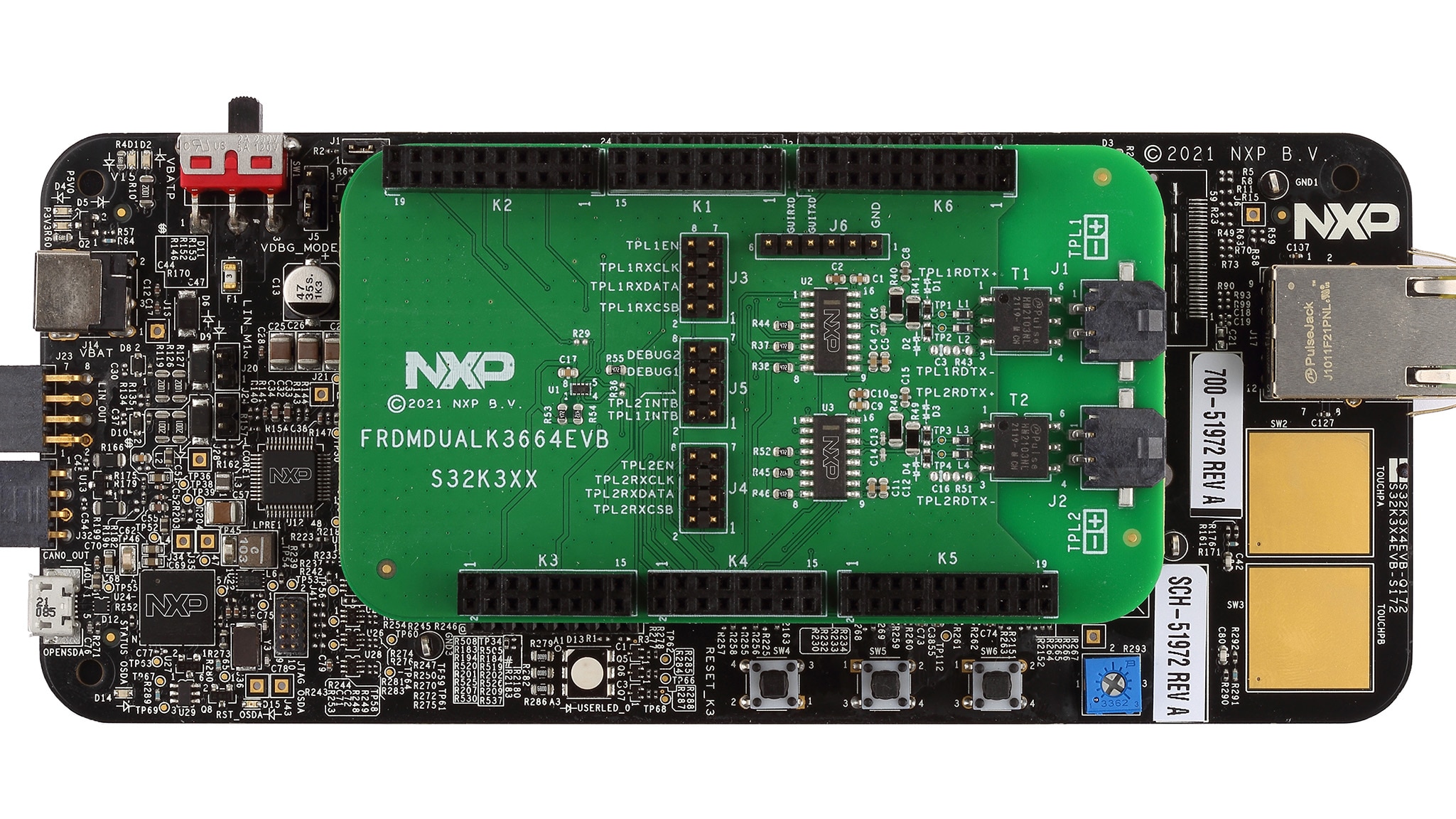

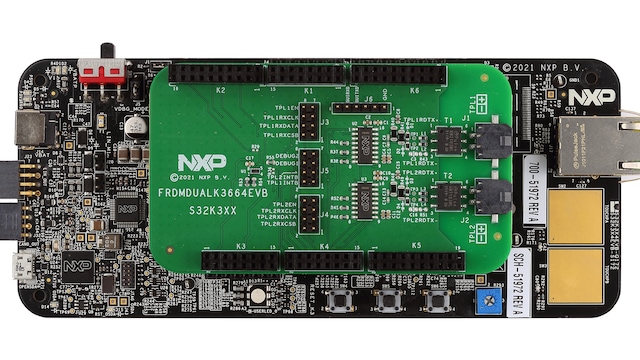

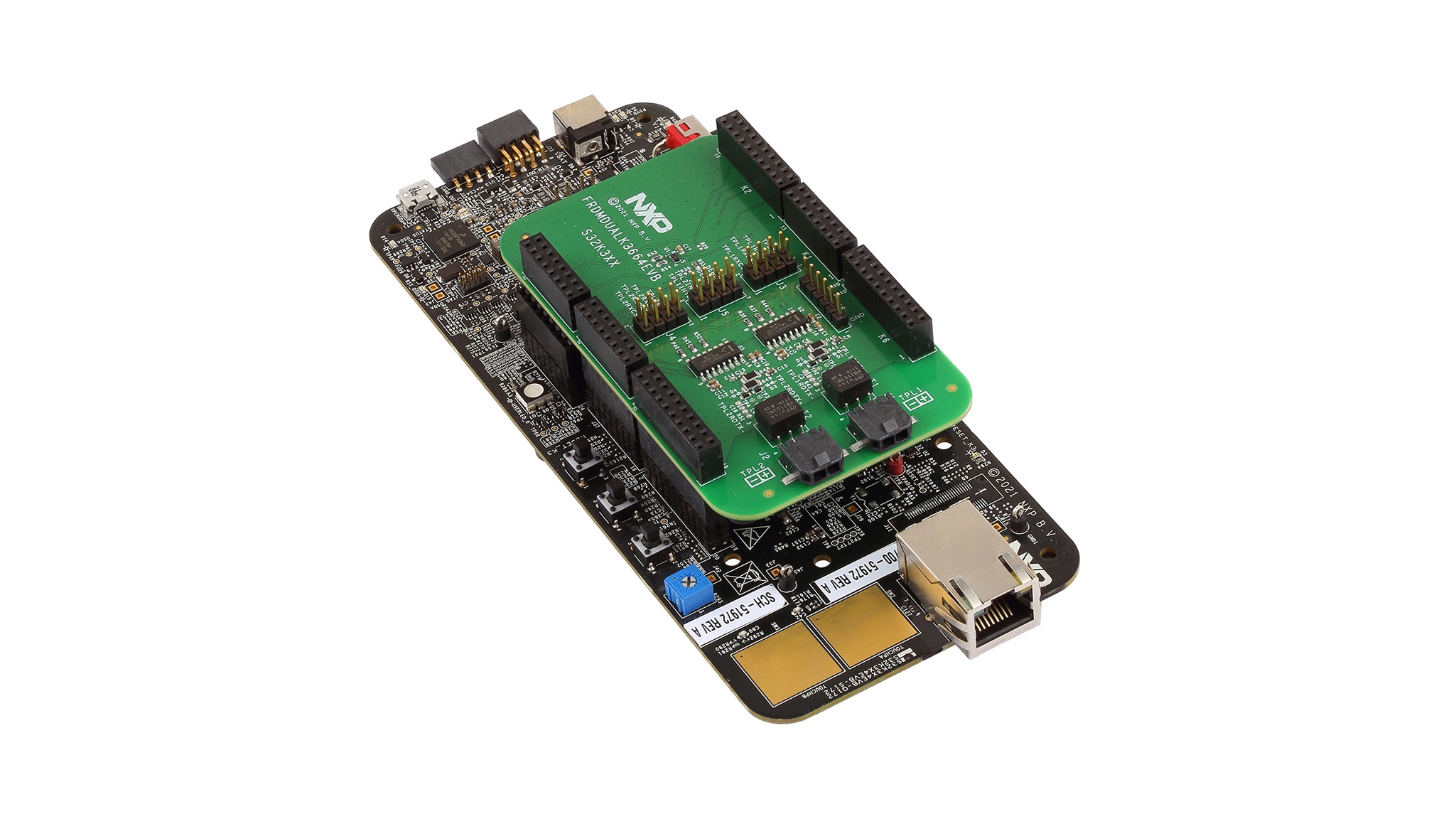

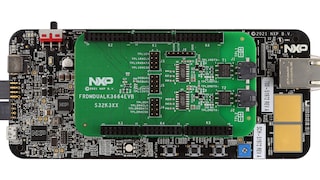

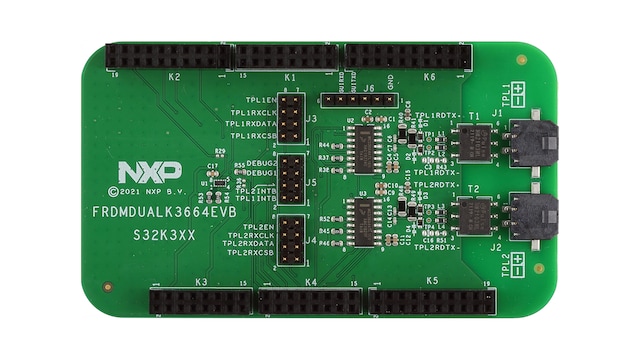

This board has been developed to be pin to pin compatible with the S32K3X4EVB-Q172 board.
Evaluation Board for MC33664ATL Isolated Network High-Speed Transceiver.
Electrical transport protocol link (ETPL), two-wire, twisted, 20 cm-long cable.
Electrical transport protocol link (ETPL), two-wire, twisted, 50 cm-long cable.
