Isolated Network High-Speed Transceiver

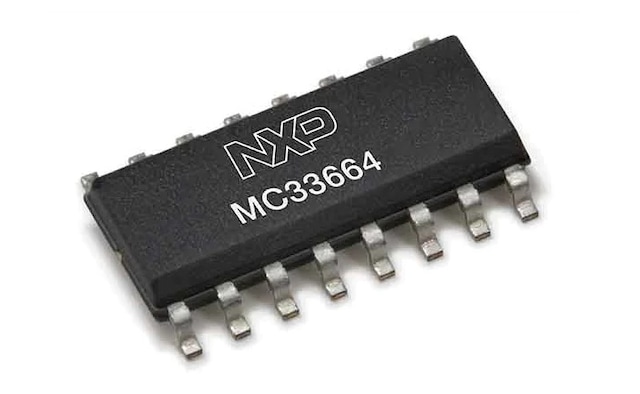

Our MC33664 is a transceiver physical layer transformer driver designed to conveniently interface a microcontroller to a high speed isolated communication network. MCU SPI data bits are directly converted to pulse bit information and transferred to the bus network.
- Follower response messages use the same structure to send pulse bit information to the MC33664 which is then converted to an SPI bit stream sent back to the MCU. This device is powered by SMARTMOS® technology.
- The MC33664 is designed for automotive and industrial applications and is compliant with the MC3377x battery cell controller family and MPC5xxx MCU families.
製品詳細
ブロック図
Features
Key Features
- 2.0 Mbps isolated network communication rate
- Dual SPI architecture for message confirmation
- Robust conducted and radiated immunity with wake-up
- 3.3 V and 5.0 V compatible logic thresholds
- Low sleep mode current with automatic bus wake-up
- Ultra-low radiated emissions
Product Longevity Program
- This product is included in the NXP Product Longevity program ensuring a stable supply of products for your embedded designs. MC33771B is included in the 15-year program.
Battery Management Systems (BMS) Hardware Solutions
Battery management systems (BMS) solutions for automotive and industrial applications including 12 V, 48 V, high-voltage and battery pack monitoring applications.
