MCF52277 Evaluation Board

M52277EVB アクティブ

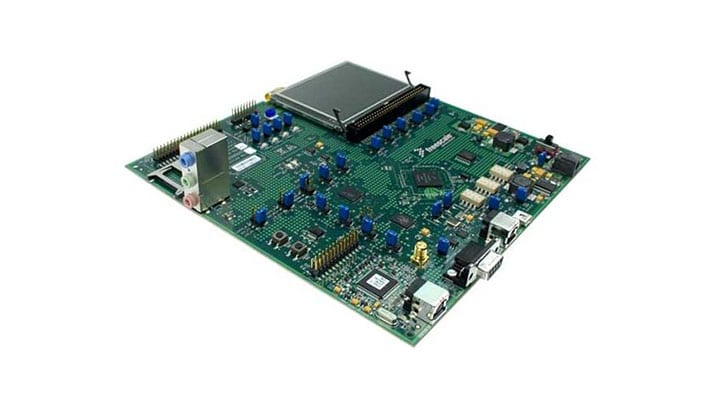

画像にカーソルを合わせると拡大表示されます。

The M52277 evaluation board is based on the V2 Coldfire Core with eMAC. This board is shipped with the MCF52277 populated to allow for evaluation of all of the functionality of this part.

This board was designed as a validation platform with maximum flexibility. Where possible we've also designed for power and speed, but the primary goal of this system is flexibility.

製品詳細

Features

M52277 External Interfaces

  • On-board Sharp 240 x 320 color touchscreen LCD panel
  • 60-pin external LCD connector
  • Synchronous Serial Interface (SSI) connected to audio codec
  • USB Support
    • MCF52277 on-chip OTG transceiver with device, host, and OTG support (mini-AB receptacle)
  • Crystal/clock
  • BDM/JTAG
  • Two UARTs
  • FlexBus
  • Timers
  • External interrupts
  • CAN support
    • External CAN transceiver (DB9 connector)
  • University Breakout Connector for serial interfaces (I²C, QSPI, GPIO, etc.)

Memory Subsystems

  • 32 M x 16 mobile DDR
  • 8 M x 16 NOR flash
  • 16 MB serial boot flash

Power

  • Inputs
    • 5 V input to the voltage regulator circuitry
  • Regulated onboard voltages:
    • 3.3 V - I/O voltage
    • 1.8 V - Mobile DDR and flash voltage
    • 1.5 V - MCF52277 core voltage

購入オプション

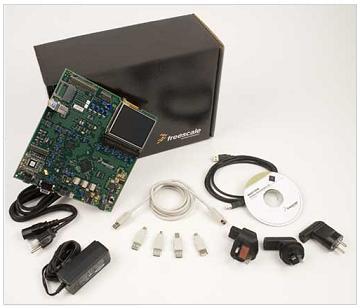

M52277EVBJ-Image

クリックして展開

  • M52277EVBJ
    アクティブ

  • ITC comp EVAL BOARD FOR THE MCF5227X FAM.

    N true 0 TSPM52277EVBja 3 サポート情報 Supporting Information t531 1 ファクト・シート Fact Sheet t523 1 リファレンス・マニュアル Reference Manual t877 1 ja ja ja リファレンス・マニュアル Reference Manual 1 1 0.8 English The M52277 Evaluation Board (EVB) is based on the V2 ColdeFire Core with EMAC. This board is shipped with the MCF52277 populated to allow for the evaluation of all of the functionality of this part. 1206725478846704342769 TSP 155.0 KB None None documents None 1206725478846704342769 /docs/en/reference-manual/M52277EVBUM.pdf 155047 /docs/en/reference-manual/M52277EVBUM.pdf M52277EVBUM documents N 2008-03-28 M52277EVB Evaluation Board - Reference Manual /docs/en/reference-manual/M52277EVBUM.pdf /docs/en/reference-manual/M52277EVBUM.pdf Reference Manual N 500633505221135046 2022-12-07 pdf en Mar 1, 2010 500633505221135046 Reference Manual Y N M52277EVB Evaluation Board - Reference Manual ファクト・シート Fact Sheet 1 2 1 English NXP&#8217;s MCF5227x ColdFire &#174; microprocessor family is the ideal device for developers looking to add more control options to their consumer or industrial applications. Featuring an integrated LCD controller and touchscreen module, the MCF5227x family is designed to provide an easy way to add support for graphical LCD interfaces to industrial systems. The MCF5227x devices are also equipped with integrated USB On-The-Go (OTG) and CAN modules. 1207756615835718533058 TSP 143.4 KB None None documents None 1207756615835718533058 /docs/en/fact-sheet/MCF5227XFS.pdf 143434 /docs/en/fact-sheet/MCF5227XFS.pdf MCF5227XFS documents N 2008-04-09 MCF5227x ColdFire<sup>&#174;</sup> &#174; embedded microprocessor - Fact Sheet /docs/en/fact-sheet/MCF5227XFS.pdf /docs/en/fact-sheet/MCF5227XFS.pdf Fact Sheet N 736675474163315314 2022-12-07 pdf en May 8, 2008 736675474163315314 Fact Sheet Y N MCF5227x ColdFire<sup>&#174;</sup> &#174; embedded microprocessor - Fact Sheet サポート情報 Supporting Information 1 3 0 English 1270676705771703292651 TSP 4.9 KB None None documents None 1270676705771703292651 /docs/en/supporting-information/M5227xEVBRN.txt 4903 /docs/en/supporting-information/M5227xEVBRN.txt M5227XEVBRN documents N 2010-04-07 Release notes for the M52277EVB BSP /docs/en/supporting-information/M5227xEVBRN.txt /docs/en/supporting-information/M5227xEVBRN.txt Supporting Information N 371282830530968666 2023-06-19 txt en Feb 8, 2010 371282830530968666 Supporting Information N N Release notes for the M52277EVB BSP false 0 M52277EVB downloads ja true 0 Y TSP サポート情報 1 /docs/en/supporting-information/M5227xEVBRN.txt 2010-04-07 1270676705771703292651 TSP 3 Feb 8, 2010 Supporting Information None /docs/en/supporting-information/M5227xEVBRN.txt English documents 4903 None 371282830530968666 2023-06-19 /docs/en/supporting-information/M5227xEVBRN.txt Release notes for the M52277EVB BSP /docs/en/supporting-information/M5227xEVBRN.txt documents 371282830530968666 Supporting Information N en None N txt 0 N Release notes for the M52277EVB BSP 4.9 KB M5227XEVBRN N 1270676705771703292651 ファクト・シート 1 /docs/en/fact-sheet/MCF5227XFS.pdf 2008-04-09 1207756615835718533058 TSP 2 May 8, 2008 Fact Sheet NXP&#8217;s MCF5227x ColdFire &#174; microprocessor family is the ideal device for developers looking to add more control options to their consumer or industrial applications. Featuring an integrated LCD controller and touchscreen module, the MCF5227x family is designed to provide an easy way to add support for graphical LCD interfaces to industrial systems. The MCF5227x devices are also equipped with integrated USB On-The-Go (OTG) and CAN modules. None /docs/en/fact-sheet/MCF5227XFS.pdf English documents 143434 None 736675474163315314 2022-12-07 /docs/en/fact-sheet/MCF5227XFS.pdf MCF5227x ColdFire<sup>&#174;</sup> &#174; embedded microprocessor - Fact Sheet /docs/en/fact-sheet/MCF5227XFS.pdf documents 736675474163315314 Fact Sheet N en None Y pdf 1 N MCF5227x ColdFire<sup>&#174;</sup> &#174; embedded microprocessor - Fact Sheet 143.4 KB MCF5227XFS N 1207756615835718533058 リファレンス・マニュアル 1 /docs/en/reference-manual/M52277EVBUM.pdf 2008-03-28 1206725478846704342769 TSP 1 Mar 1, 2010 Reference Manual The M52277 Evaluation Board (EVB) is based on the V2 ColdeFire Core with EMAC. This board is shipped with the MCF52277 populated to allow for the evaluation of all of the functionality of this part. None /docs/en/reference-manual/M52277EVBUM.pdf English documents 155047 None 500633505221135046 2022-12-07 /docs/en/reference-manual/M52277EVBUM.pdf M52277EVB Evaluation Board - Reference Manual /docs/en/reference-manual/M52277EVBUM.pdf documents 500633505221135046 Reference Manual N en None Y pdf 0.8 N M52277EVB Evaluation Board - Reference Manual 155.0 KB M52277EVBUM N 1206725478846704342769 true Y Tools
