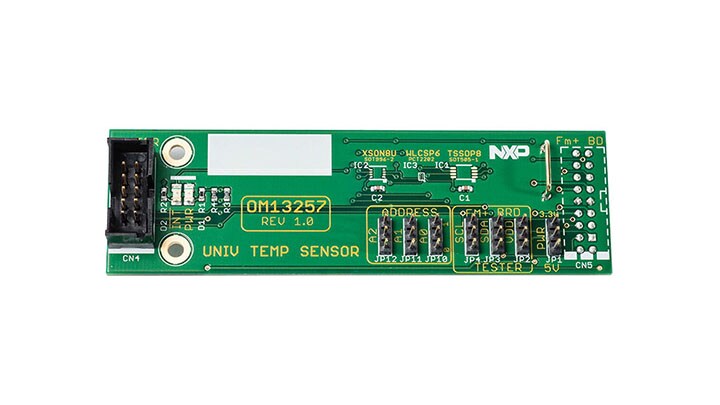

Universal Temperature Sensor Daughter Card for the Fm+ Development Kit

OM13257 アクティブ

画像にカーソルを合わせると拡大表示されます。

The OM13257 allows one to evaluate almost all of the NXP® Temperature Sensor portfolio using the Fm+ Development Board and GUI. Pinout differences between devices are handled via jumpers and power supplies can be provided by the development board or via an external power supply. No test device is mounted on the board, however an 8-pin footprint for TSSOP8, an 8-pin footprint for XSON8U and HWSON8, and a 6-pin footprint for the PCT2202 WLCSP6 are provided allowing the user to solder the device of interest onto the board for evaluation. Connectors allow direct connection to the Fm+ Development Board and the Total Phase Beagle.

製品詳細

対応製品

センサ

I3C/I²Cデジタル温度センサ

  • LM75A: Digital Temperature Sensor and Thermal Watchdog
  • LM75B: Digital Temperature Sensor and Thermal Watchdog
  • PCT2075: I²C-Bus Fm+, 1 Degree C Accuracy, Digital Temperature Sensor and Thermal Watchdog

Features

Key Features

  • Three different footprints to solder almost any NXP® Temperature Sensor
  • Complete device evaluation using NXP Fm+ GUI

Connectivity

  • Direct plug-in connection to NXP Fm+ Development Board
  • Jumpers to program different I²C addresses

購入オプション

OM13257-Image

クリックして展開

  • OM13257
    アクティブ

  • Universal Temperature Sensor Daughter Card for the Fm+ Development Kit.

  • JP¥ 7,181
  • の数量に対して 1
    • 在庫: 保留中の在庫
カートに入れる
