Evaluation Systems for S32R264, S32R274, and S32R372

S32RXXXEVB アクティブ

画像にカーソルを合わせると拡大表示されます。

The S32RXXXEVB is an evaluation system engineered for high-performance radar applications. The system consists of an MPC57XXXMB and either an S32R274EVB or S32R372EVB to enable flexible and straightforward hardware and software development.

Based on the 32-bit Power Architecture® based S32R264 and S32R274 radar microcontrollers, the S32RXXXEVB is a modular development platform that can be used either as a daughter card in conjunction with the general MPC57xx motherboard or as a standalone solution; allowing to start with the software development and to experience the highly integrated Radar Signal Processing Toolbox (SPT) along with its functional safety and hardware security features (CSE2).

対応製品

プロセッサ＆マイクロコントローラ

S32RレーダーMCU

  • S32R37: Microcontrollers for Optimized Radar
  • S32R2X: S32R26 and S32R27 Microcontrollers for High-Performance Radar

Features

Microcontroller

  • Board options:
    • S32R274RRUEVB: S32R274 in 257 BGA Radar MCU (socketed)
    • S32R372RRSEVB: S32R372 in 257 BGA Radar MCU (socketed)

Connectivity

  • Standard 14-pin JTAG debug connector and 34-pin Nexus Aurora connector
  • 10-pin Serial Interprocessor Interface (SIPI) connector
  • Gbit Ethernet Physical interface IC, with RJ45 connector
  • MIPI-CSI2 connector

User Components

  • User reset switch with reset status LEDs
  • Flexible MCU clocking options (external clock via SMA connector or 40 MHz EVB clock oscillator circuit)

購入オプション

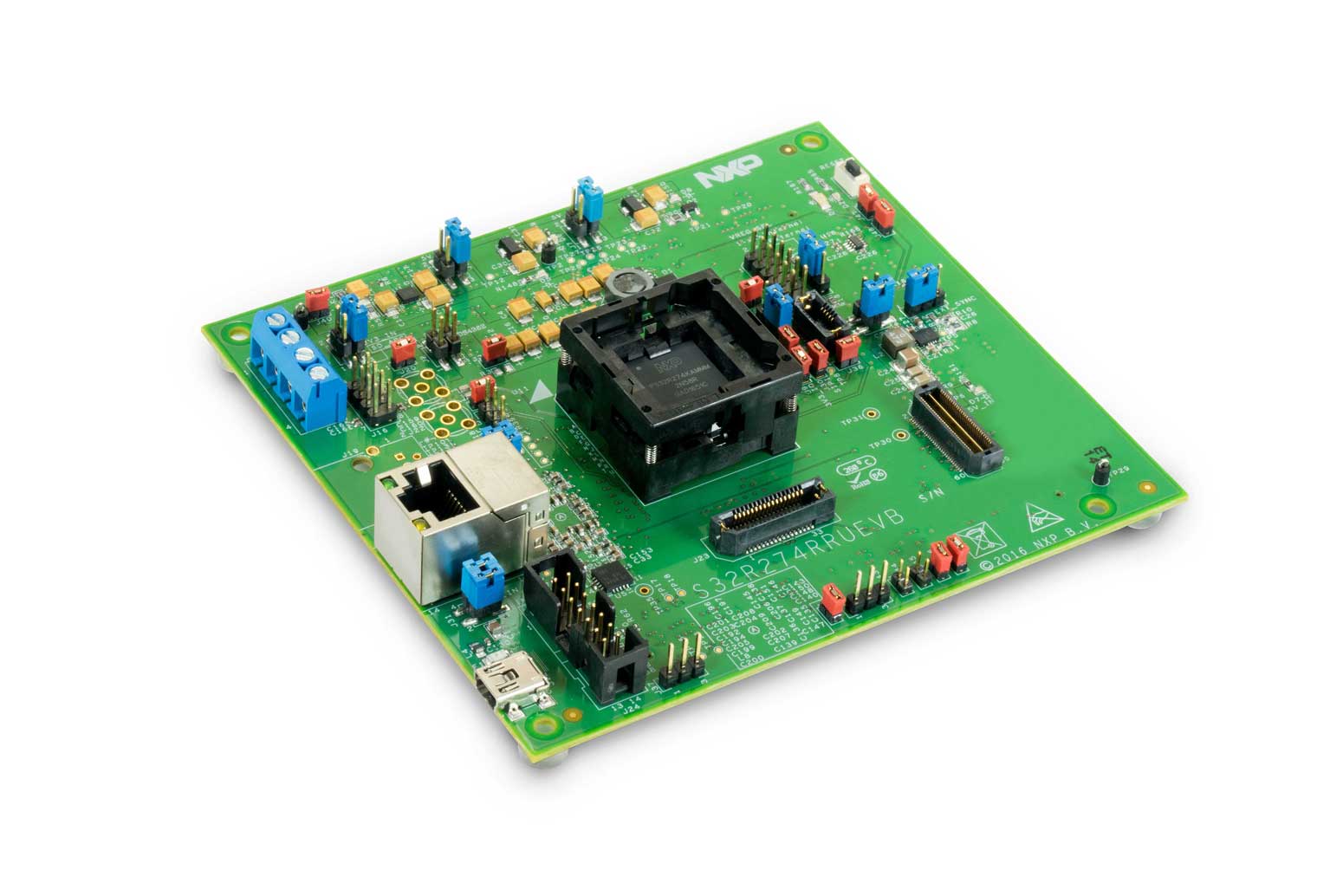

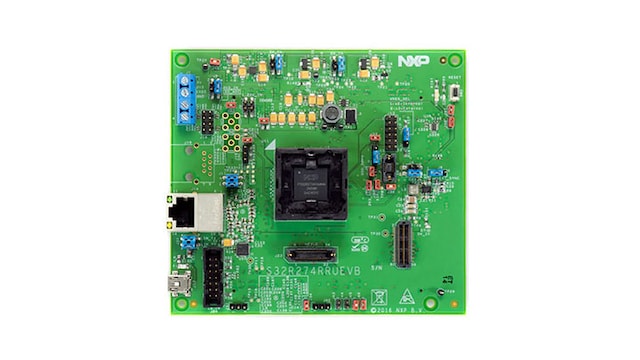

S32R274RRUEVB-Image

クリックして展開

  • S32R274RRUEVB
    アクティブ

  • S32R274RRUEVB.

    • S32R274RRUEVB:
      • Evaluation Board
      • 1 x S32R274 Radar Microcontroller
    • S32R274RRSEVB
      • Evaluation Board
      • 1 x S32R372 Radar Microcontroller
  • の数量に対して 1
代理店からの注文
S32R372RRSEVB-Image

クリックして展開

  • S32R372RRSEVB
    アクティブ

  • Evaluation Systems for S32R264, S32R274, and S32R372.

  • $545.00 USD
  • の数量に対して 1
    • 在庫: 在庫あり
    • 在庫: 2
    • 配送: 通常 1～2営業日以内に配送
カートに入れる
代理店からの注文
