Dual Synchronous Rectifier Evaluation Board

TEA2096DB2201

画像にカーソルを合わせると拡大表示されます。

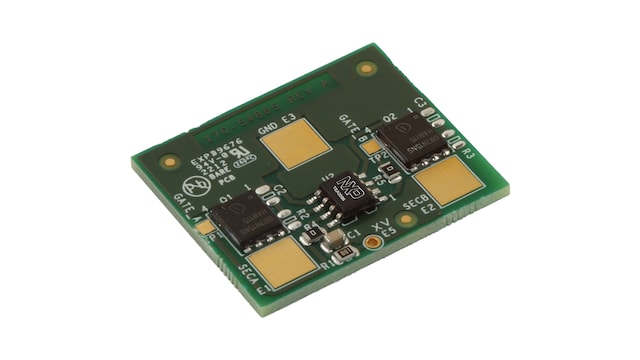

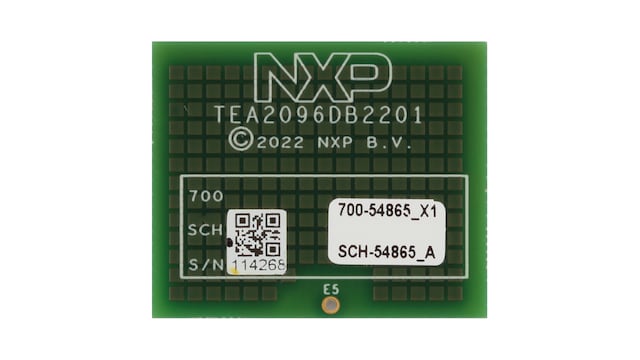

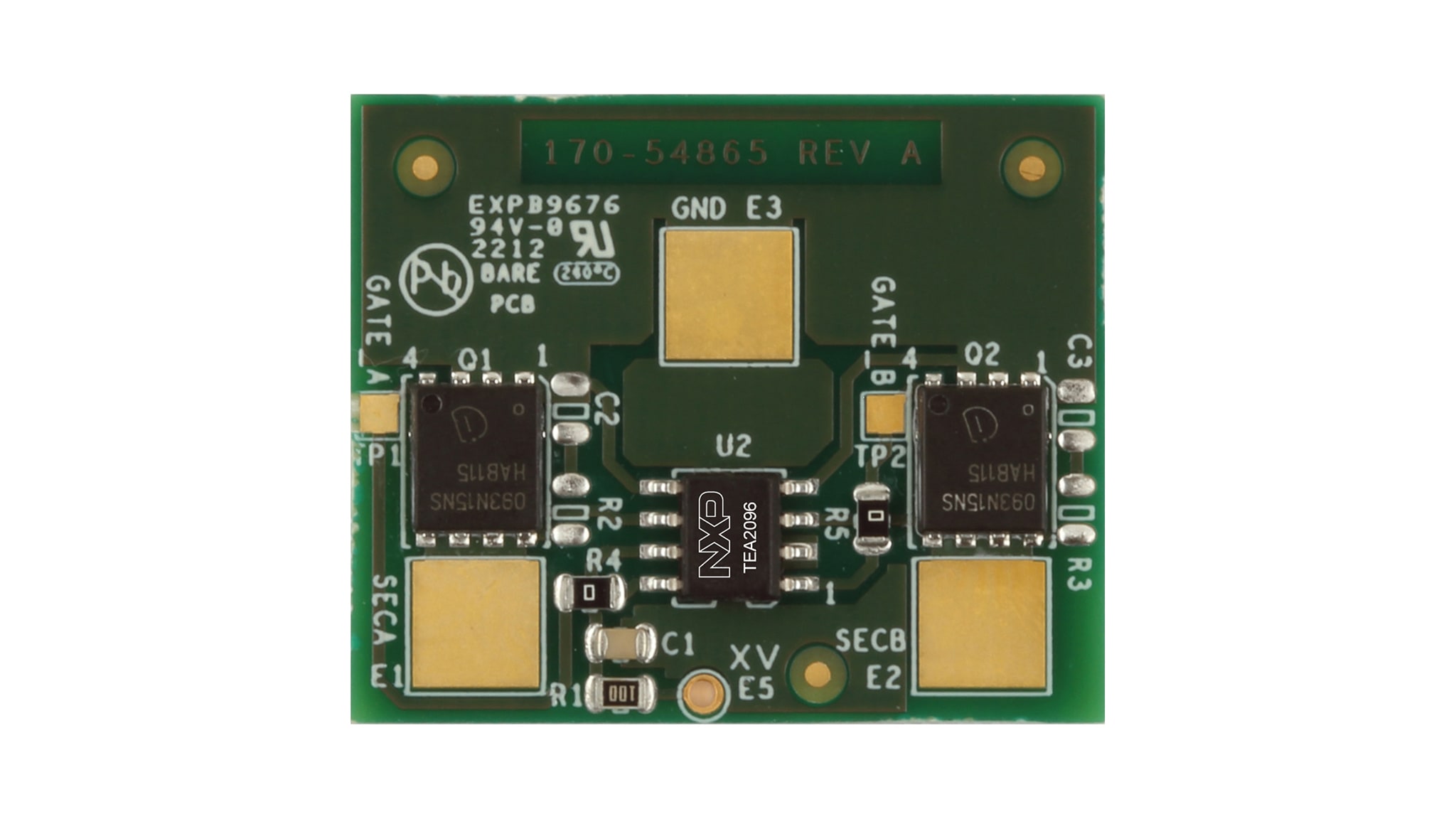

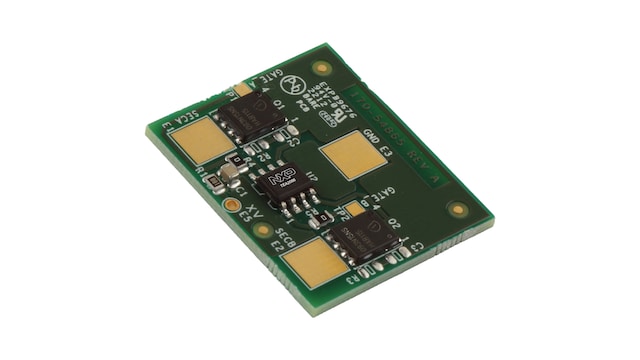

The TEA2096DB2201 is an add-on evaluation board enabled by the TEA2096T Synchronous Rectification controller in an SO-8 package. The TEA2096T controller includes two adaptive gate drives for maximum efficiency at any load.

The TEA2096DB2201 add-on evaluation board also contains two 150 V / 9.3 mΩ MOSFETs and therefore enables easy replacement of the secondary side rectification in an existing power supply.

対応製品

パワーマネージメント

セカンダリ・サイド・コントローラ

  • TEA2096: Dual Synchronous Rectifier Controller

Features

Key Features

  • Easy replacement of secondary-side rectifiers of an existing LLC converter
  • Two 150 V / 9.3 mΩ MOSFETs are incorporated
  • Adaptive gate drive for maximum efficiency at any load
  • Supports up to 1MHz switching frequency
  • Interlock function to prevent simultaneous conduction of both MOSFETs
  • Wide supply voltage range from 4.75 V to 38 V
  • Supply current in energy save operation of 80 μA

購入オプション

TEA2096DB2201-Image

クリックして展開

  • TEA2096DB2201
    アクティブ

  • Dual Synchronous Rectifier Evaluation Board.

  • Kit Contains

    • TEA2096DB2201 add-on board
  • $120.00 USD
  • の数量に対して 1
    • 在庫: 在庫あり
    • 在庫: 18
    • 配送: 通常 1～2営業日以内に配送
カートに入れる
代理店からの注文
N true 0 TSPTEA2096DB2201ja 2 ドキュメント User Manual t1009 1 ユーザ・ガイド User Guide t792 1 ja ja 1 1 English This page will help guide you through the process of learning about your TEA2096 evaluation board. 1663008689101732712189 Y 1663008689101732712189 GS-TEA2096DB2201 GS-TEA2096DB2201 /document/guide/getting-started-with-the-tea2096db2201-evaluation-board:GS-TEA2096DB2201 HTML 0 TSP 2022-09-12 GS-TEA2096DB2201 TSP User Guide 132339537837198660 2025-01-06 en Sep 12, 2022 User Guide t792 ユーザ・ガイド User Guide Y Getting Started with the TEA2096DB2201 Evaluation Board false ja ドキュメント User Manual 1 2 1 English This user manual describes the TEA2096DB2201 evaluation board, including instructions about how to connect the board, for the best results and performance. The TEA2096DB2201 evaluation board contains the secondary side rectification part of a resonant converter, excluding the output capacitors and the feedback control hardware. To use the TEA2096DB2201 evaluation board correctly, a resonant converter board in which the evaluation board can replace the secondary rectifier part is required. 1663690862338704470247 TSP 1.2 MB None None documents None 1663690862338704470247 /docs/en/user-manual/UM11815.pdf 1248285 /docs/en/user-manual/UM11815.pdf UM11815 documents N N 2022-09-20 TEA2096DB2201 Synchronous Rectifier Evaluation Board User Manual /docs/en/user-manual/UM11815.pdf /docs/en/user-manual/UM11815.pdf User Manual N 309919593431037931 2022-12-07 pdf N en Sep 19, 2022 309919593431037931 User Manual Y N TEA2096DB2201 Synchronous Rectifier Evaluation Board User Manual false 0 TEA2096DB2201 downloads ja true 0 Y TSP ドキュメント 1 /docs/en/user-manual/UM11815.pdf 2022-09-20 1663690862338704470247 TSP 2 Sep 19, 2022 User Manual This user manual describes the TEA2096DB2201 evaluation board, including instructions about how to connect the board, for the best results and performance. The TEA2096DB2201 evaluation board contains the secondary side rectification part of a resonant converter, excluding the output capacitors and the feedback control hardware. To use the TEA2096DB2201 evaluation board correctly, a resonant converter board in which the evaluation board can replace the secondary rectifier part is required. None /docs/en/user-manual/UM11815.pdf English documents 1248285 None 309919593431037931 2022-12-07 N /docs/en/user-manual/UM11815.pdf TEA2096DB2201 Synchronous Rectifier Evaluation Board User Manual /docs/en/user-manual/UM11815.pdf documents 309919593431037931 User Manual N en None Y pdf 1 N N TEA2096DB2201 Synchronous Rectifier Evaluation Board User Manual 1.2 MB UM11815 N 1663690862338704470247 ユーザ・ガイド 1 2022-09-12 1663008689101732712189 TSP 1 Sep 12, 2022 User Guide ユーザ・ガイド This page will help guide you through the process of learning about your TEA2096 evaluation board. Y GS-TEA2096DB2201 English 0 User Guide 2025-01-06 /document/guide/getting-started-with-the-tea2096db2201-evaluation-board:GS-TEA2096DB2201 Getting Started with the TEA2096DB2201 Evaluation Board GS-TEA2096DB2201 TSP 132339537837198660 User Guide en Y t792 HTML GS-TEA2096DB2201 1663008689101732712189 true Y Tools
