UJA1166A-EVB
アクティブ -
UJA1166A Evaluation Board.
Kit contains:
- UJA1166A Evaluation Board
- UJA116xA-EVB Manual
コンパクトリスト

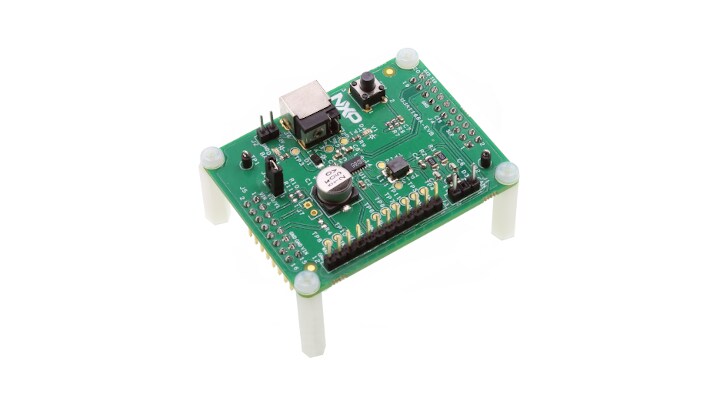

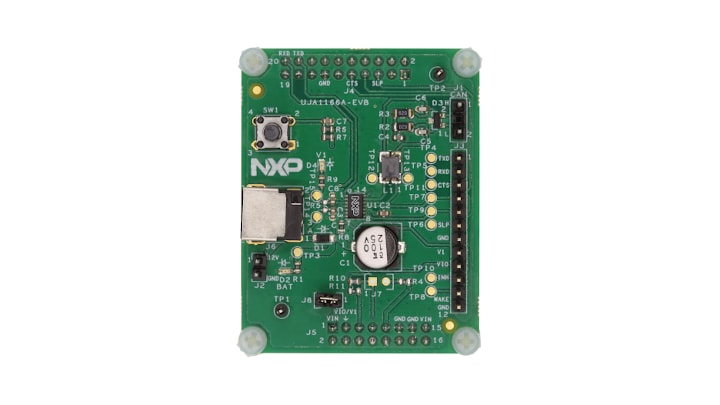

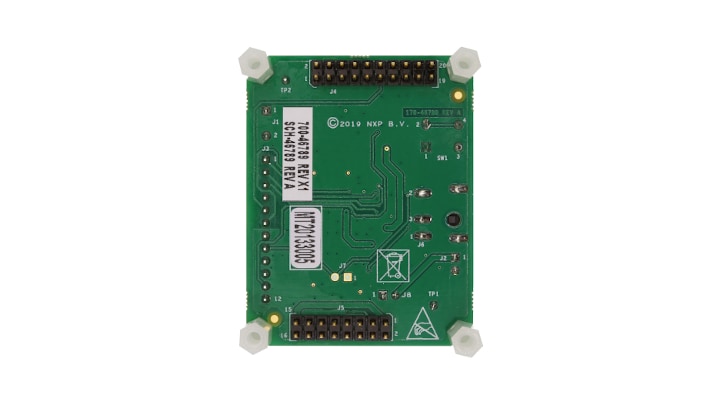

UJA1166A Evaluation Board
The UJA1166A-EVB evaluation board is a supportive tool to develop system solutions using the UJA1166A High-Speed CAN Transceiver. The board is pin compatible with the Arduino Uno pinout order and can be used in combination with any microcontroller board providing USB-to-SPI interfacing.
製品詳細
対応製品
インターフェース
CAN with Flexible Data Rate
- UJA1166ATK: High-Speed CAN Transceiver with 5 V LDO and Sleep Mode
Features
Features
- Designed to facilitate the testing and evaluation of UJA116xA product features in a variety of microcontroller IO interface environment
- Supporting Arduino connection with microcontroller board.
- The board also provides several header rows (2.54 mm pitch) for connecting MCU interface and application signals
- Board dimensions are 45.1 mm × 58.4 mm. Only components needed to support basic UJA116xA functionality are included
- An external power supply of 12 V typ. must be connected to power-up the board
購入オプション
ドキュメント
クイック・リファレンス ドキュメンテーションの種類.
2 ドキュメント
ユーザ・ガイド (2)
-
Getting Started with the UJA1166A Evaluation Board[GS-UJA1166A-EVB]はじめに
-
UM11379, UJA116xA evaluation boards User Guide[UM11379]はじめに
2 ドキュメント
コンパクトリスト
ユーザ・ガイド (2)
-
Getting Started with the UJA1166A Evaluation Board[GS-UJA1166A-EVB]はじめに
-
UM11379, UJA116xA evaluation boards User Guide[UM11379]はじめに
