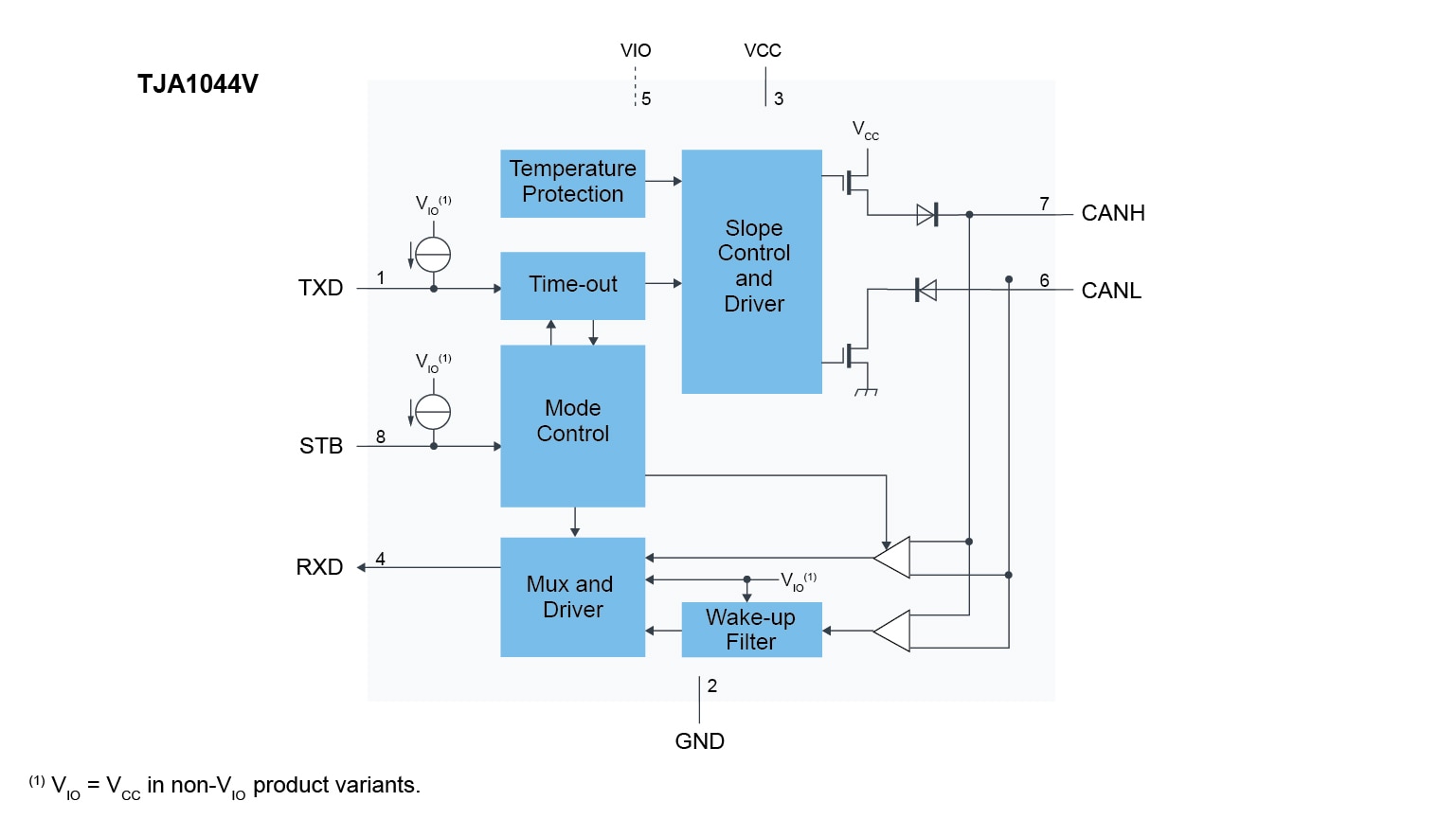

VeLIO Certified, High-Speed CAN Transceivers with Standby Mode for Automotive Applications
The TJA1044V is part of the Mantis family of high-speed CAN transceivers. It provides an interface between a Controller Area Network (CAN) protocol controller and the physical two-wire CAN bus. The transceiver is designed for high-speed CAN applications in the automotive industry, providing the differential transmit and receive capability to (a microcontroller with) a CAN protocol controller.
The TJA1044V offers a feature set optimized for 12 V automotive applications, with significant improvements over NXP's first- and second-generation CAN transceivers, such as the TJA1040 and TJA1042, and excellent ElectroMagnetic Compatibility (EMC) performance.
HVSON8 Package
製品詳細
Features
General
- Ideal passive behavior to the CAN bus when the supply voltage is off.
- A very low-current Standby mode with bus wake-up capability.
- Excellent EMC performance at speeds up to 500 kbit/s, even without a common mode choke.
- TJA1044VT/3 and TJA1044VTK/3 can be interfaced directly to microcontrollers with supply voltages from 3 V to 5 V.
- Very low-current Standby mode with host and bus wake-up capability.
- Optimized for use in 12 V automotive systems.
- EMC performance satisfies 'Hardware Requirements for LIN, CAN and FlexRay Interfaces in Automotive Applications’, Version 1.3, May 2012.
- AEC-Q100 qualified.
- Dark green product (halogen-free and Restriction of Hazardous Substances (RoHS) compliant).
- VIO input on TJA1044Vx/3 variants allows for direct interfacing with 3 V to 5 V microcontrollers. Variants without a VIO pin can interface with 3.3 V and 5 V-supplied microcontrollers, provided the microcontroller I/Os are 5 V tolerant.
- Both VIO and non-VIO variants are available in SO8 and leadless HVSON8 (3.0 mm x 3.0 mm) packages; HVSON8 with improved Automated Optical Inspection (AOI) capability.
Protection
- High ESD handling capability on the bus pins (8 kV IEC and HBM).
- Bus pins protected against transients in automotive environments.
- Undervoltage detection on pins VCC and VIO.
- Thermally protected.
Automotive Certifications/Standards
- Fully ISO 11898-2:2016 and SAE J2284-1 to SAE J2284-5 compliant.
- Certified according to latest VeLIO (Vehicle LAN Interoperability and Optimization) test requirements.
