SBC Gen2 with High-Speed CAN and LIN
The NXP® MC33905 is part of a second generation family of system basis chips, combining multiple features and enhanced module design.
- The MC33905 works as an advanced power management unit for the MCU and additional integrated circuits such as sensors and CAN transceivers
- Built-in enhanced high-speed CAN interface (ISO11898-2 and -5), with local and bus failure diagnostics, protection and fail-safe operation mode.
- The SBC may include zero, one or two LIN 2.1 interfaces with LIN output pin switches
- Includes 2 or 3 wake-up input pins than can also be configured as output drivers for flexibility

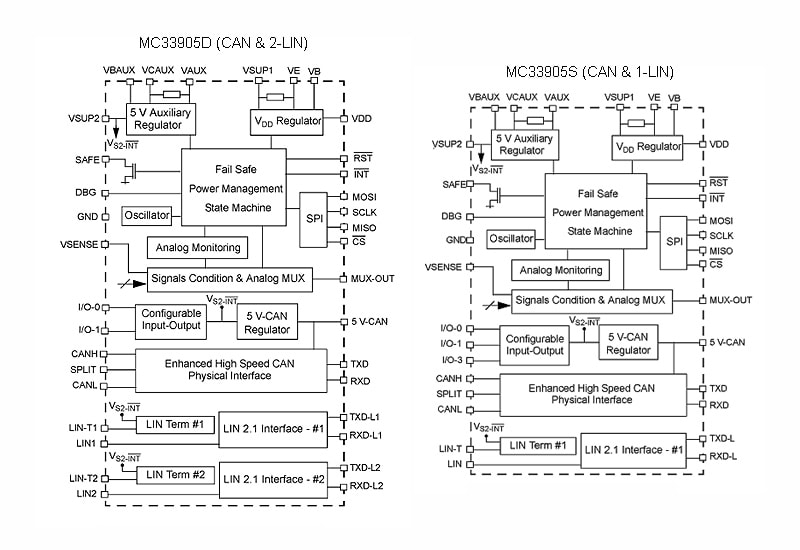

Freescale MC33905 Product Image
製品詳細
Features
Key Features
- Voltage regulator for MCU, 5.0 V or 3.3 V, part number selectable, with possibility of usage external PNP to extend current capability and share power dissipation
- Voltage, current and temperature protection
- Very low quiescent current in low-power modes
- Fully-protected embedded 5.0 V regulator for the CAN driver
- Multiple under-voltage detections to address various MCU specifications and system operation modes (i.e. cranking)
- Auxiliary 5.0 V or 3.3 V SPI configurable regulator, for additional ICs, with over-current detection and under-voltage protection
- MUX output pin for device internal analog signal monitoring and power supply monitoring
- Advanced SPI, MCU, ECU power supply and critical pins diagnostics and monitoring
- Multiple wake-up sources in low-power modes: CAN or LIN bus, I/O transition, automatic timer, SPI message and VDD over-current detection
- ISO11898-5 high-speed CAN interface compatibility for baud rates of 40 kb/s to 1.0 Mb/s
Product Longevity Program
- This product is included in the NXP Product Longevity Program ensuring a stable supply of products for your embedded designs. The MC33905 is included in the 15-year program
