Automotive Multi-Coil Wireless Charging Transmitter

RDWCT-15WTXAUTO

画像にカーソルを合わせると拡大表示されます。

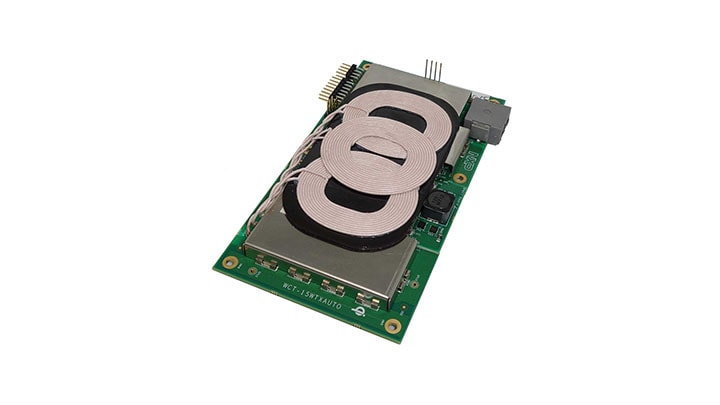

The NXP® 15 W multi-coil transmitter reference platform is designed for automotive wireless charging applications based on the NXP MWCT1013AVLH transmit controller IC.

The controller IC manages and performs all control functions necessary to implement a wireless charging transmitter solution. It provides high-performance wireless charging system while taking the complex operating environment of a vehicle into consideration.

WCT-15WTXAUTO Qi® Wireless Charging Transmitter Solution - Fact Sheet

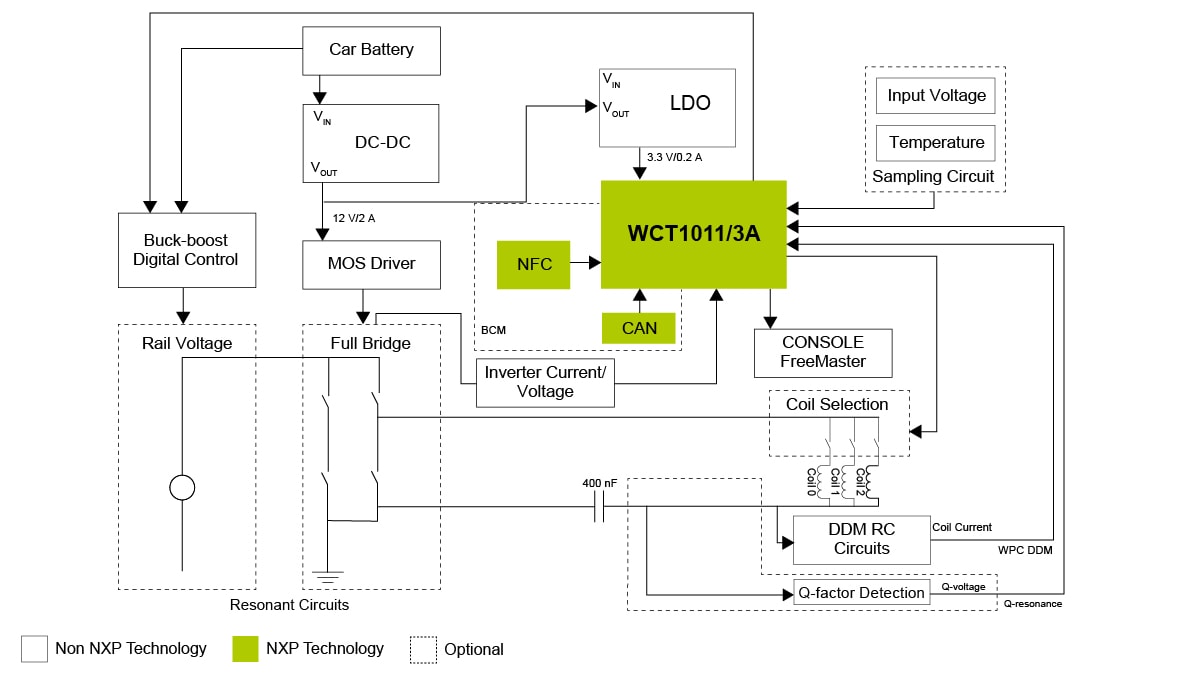

ブロック図

Automotive Multi-Coil Wireless

15W AUTOMOTIVE WIRELESS POWER TRANSMITTER (MP-A9)
図を取得する PDF

対応製品

セキュリティ＆認証

セキュア・カーアクセス

  • NCF3340AHN: Automotive Qualified NFC Controller with NCI Interface

パワーマネージメント

ワイヤレス・パワー

  • MWCT1x1xA: 15 Watt Wireless Charging Transmitter ICs for Automotive Applications

インターフェース

3.3 V/5 V IO CANトランシーバ

  • TJA1057: 高速CANトランシーバ - Mantisファミリ

Features

  • Power transfer efficiency exceeds 70%
  • Over-voltage/current/temperature protection
  • Supports low standby power, and ignition control logic
  • Supports FOD based on quality factor (Q factor) change and calibrated power loss accounting
  • Supports multiple types of RX modulation signals (AC capacitor, AC resistor, and DC resistor)
  • 15 W wireless charging platform multi-coil free position with fixed frequency
  • Software-based solution to provides maximum design freedom and product differentiation
  • Auto-grade components ensure seamless system integration
  • NFC
    • Full NFC support for safety (RFID tag protection), personalization, BT/Wi-Fi pairing and authentication applications
    • Supports additional features such as NFC, CAN and touch sense
    • Integrated digital demodulation in chip
  • Complies with the Wireless Power Consortium's latest Qi specification and is certified as a MP-A9 transmitter type
